NGF-SE + F6.3FR

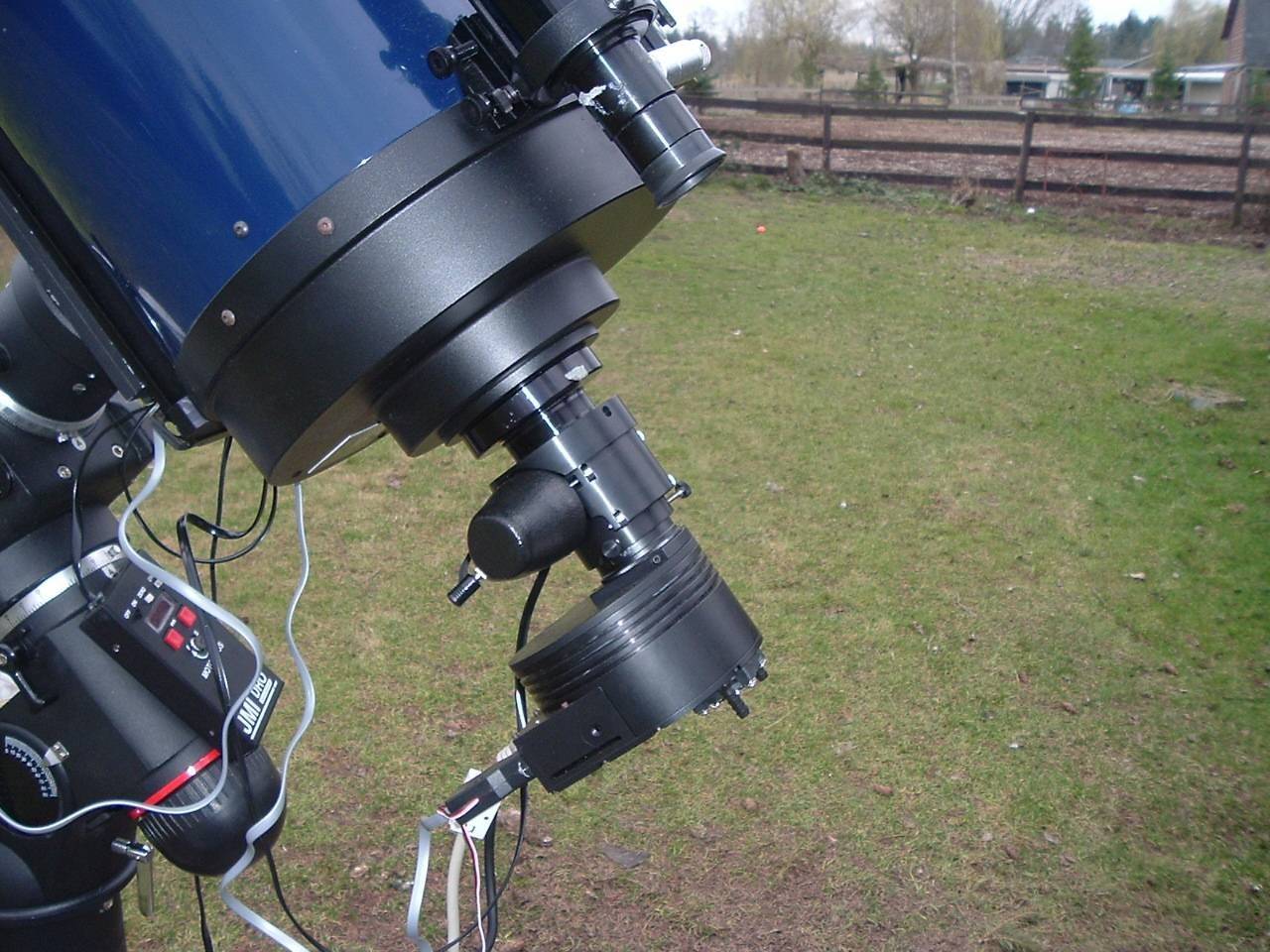

It's possible to attach a JMI focuser directly to the OTA using the R/C body and the small format SCT adapter.
This arrangement allows the R/C to be placed up to about 30mm closer to the focal plane. This is useful for
maintaining the R/C at the correct spacing from the rear of the OTA and from the focal plane of the imager.

NGF-SE+2"diagonal	NGF-SE+small SCT Adapter+f6.3 Reducer	same but 3 items unattached
same	standard arrangement: Focuser-adapter-reducer	standard arrangement
focuser attached directly to the reducer using the recessed area of reducer barrel	another view	max focus travel about 10mm
recessed part of reducer	wide part of reducer, attaching here allows for full focus travel	reducer and attached using wide part of reducer
another view	top view	side view
close up side view
