Window Reference

Model Viewer Window

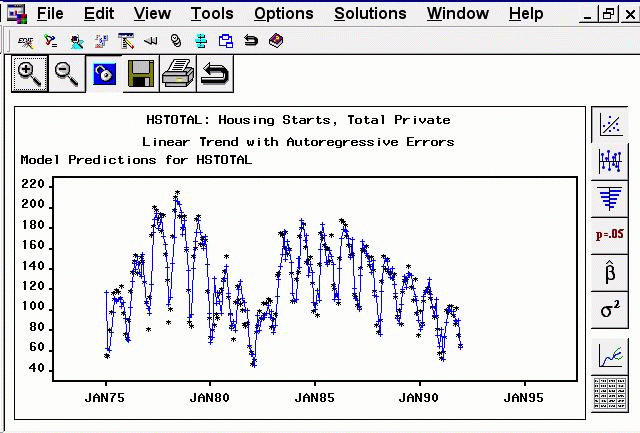

This resizable window provides plots and tables of actual values, model predictions, forecasts, and related statistics. The various plots and tables available are referred to as views. The following View Selection Icons section explains how to change the view.

You can access Model Viewer in a number of ways, including the View Model Graphically icon of the Develop Models and Model List windows, the Graph button of the Automatic Model Fitting Results window, and the Model item under the View pull-down in the Manage Foreasting Project window. In addition, you can go directly to a selected view in the Model Viewer window by selecting Model Predictions, Prediction Errors, Statistics of Fit, Prediction Error Autocorrelations, Prediction Error Tests, Parameter Estimates, Forecast Graph, or Forecast Table from the View pull-down menu or corresponding toolbar icon or popup menu item in the Develop Models, Model List, or Automatic Model Fitting Results windows.

The state of the Model Viewer window is controlled by the current model and the currently selected view. You can resize this window, and you can use other windows without closing the Model Viewer window. By default, the Model Viewer window is automatically updated to display the new model when you switch to working with another model (that is, when you highlight a different model). You can unlink the Model Viewer window from the current model selection by selecting the Link/Unlink from the window's horizontal tool bar. See Link/Unlink under Tool Bar Icons.

For more information, see Model Viewer in the Getting Started section.

Tool Bar Icons

The Model Viewer window contains a horizontal row of icons called the Tool Bar. Corresponding menu items appear under various pull-down menus. The function of each icon is explained in the following list.

Zoom in: In the Model Predictions, Prediction Errors, and Forecast Graph views, the Zoom In action changes the mouse cursor into cross hairs that you can use with the left mouse button to define a region of the graph to zoom in on. In the Prediction Error Autocorrelations and Prediction Error Tests views, Zoom In reduces the number of lags displayed.
Zoom out: reverses the previous Zoom In action.
Link/Unlink viewer: disconnects or connects the Model Viewer window to the model table (Develop Models window, Model List window, or Automatic Model Fitting Results window). When the viewer is linked, selecting another model in the model table causes the model viewer to be updated to show the selected model. When the Viewer is unlinked, selecting another model does not affect the viewer. This feature is useful for comparing two or more models graphically. You can display a model of interest in the Model Viewer, unlink it, then select another model and bring up another Model Viewer window for that model. Position the viewer windows side by side for convenient comparisons of models, or use the Next Viewer icon or F12 function key to switch between them.
Save: saves the contents of the Model Viewer window. If the display contains a graph, output is written to a SAS/GRAPH grseg catalog entry. This is the same as the Save Graph action under File in the menu bar. You can open the saved entry using the SAS Explorer. This brings up a graph window from which you can export to a number of external graphics formats by selecting Export as Image from the File pull-down window.

If the display contains a table, output is written to a SAS data set (same as the Save Data action under File in the menu bar). You will be prompted for the output destination if none has been specified.
Print: prints the contents of the viewer window.
Close: closes the Model Viewer window and returns to the window from which it was invoked.

View Selection Icons

At the right hand side of the Model Viewer window is a vertical tool bar to select the view, that is, the kind of plot or table that the viewer displays. Corresponding menu items appear under View in the menu bar. The function of each icon is explained in the following list.

Model Predictions: displays a plot of actual series values and model predictions over time. Click on individual points in the graph to get a display of the type (actual or predicted), ID value, and data value in the upper right corner of the window.
Prediction Errors: displays a plot of model prediction errors (residuals) over time. Click individual points in the graph to get a display of the prediction error value in the upper right corner of the window.
Prediction Error Autocorrelations: displays horizontal bar charts of the sample autocorrelation, partial autocorrelation, and inverse autocorrelation functions for the model prediction errors. Overlaid line plots represent confidence limits computed at plus and minus two standard errors. Click on any of the bars to display its value.
Prediction Error Tests: displays horizontal bar charts representing results of white noise and stationarity tests on the model prediction errors. The first bar chart shows the significance probability of the Ljung-Box chi-square statistic computed on autocorrelations up to the given lag. Longer bars favor rejection of the null hypothesis that the series is white noise. Click on any of the bars to display an interpretation.

The second bar chart shows tests of stationarity of the model prediction errors, where longer bars favor the conclusion that the series is stationary. Each bar displays the significance probability of the augmented Dickey-Fuller unit root test to the given autoregressive lag. Long bars represent higher levels of significance against the null hypothesis that the series contains a unit root. For seasonal data, a third bar chart appears for seasonal root tests. Click on any of the bars to display an interpretation.
Parameter Estimates: displays a table showing model parameter estimates along with standard errors and t-tests for the null hypothesis that the parameter is zero.
Statistics of Fit: displays a table of statistics of fit for the selected model. The set of statistics shown can be changed using the Statistics of Fit item under Options in the menu bar.
Forecast Graph: displays a plot of actual and predicted values for the series data range, followed by a horizontal reference line and forecasted values with confidence limits. Click on individual points in the graph to get a display of the type, date/time, and value of the data point in the upper right corner of the window.
Forecast Table: displays a data table with columns containing the date/time, actual, predicted, error (residual), lower confidence limit, and upper confidence limit values, together with any predictor series.

Menu Bar

File

Save Graph: saves the plot displayed in viewer window as a SAS/GRAPH grseg catalog entry. When the current view is a table, this menu item is not available. See also Save under Tool Bar Icons. If a graphics catalog entry name has not already been specified, this action functions like Save Graph As.
Save Graph As: saves the plot displayed in viewer window as a SAS/GRAPH GRSEG catalog entry that you specify. When the current view is a table, this menu item is not available.
Save Data: saves the data displayed in the viewer window in an output SAS data, where applicable.
Save Data As: brings up the Output Data Set window, then saves the contents of the viewer window in the specified SAS data set, where applicable.
Import Data: is available if you license SAS/Access software. It brings up an Import Wizard which you can use to import your data from an external spreadsheet or data base to a SAS data set for use in the Time Series Forecasting System.
Export Data: is available if you license SAS/Access software. It brings up an Export Wizard which you can use to export a SAS data set, such as a forecast data set created with the Time Series Forecasting System, to an external spreadsheet or data base.
Print Graph: prints the contents of the viewer window if the current view is a graph. This is the same as the Print tool bar icon. If the current view is a table, this menu item is not available.
Print Data: prints the data displayed in the viewer window, where applicable.
Print Setup: brings up the Print Setup window, which allows you to access your operating system print setup or choose SAS/Graph print drivers.
Print Preview: brings up a preview window to show how your plots will appear when printed. This item is grayed out if Use host drivers is not selected in the Print Setup window.
Close: closes the Model Viewer window and returns to the window from which it was invoked.

Edit

Edit Model: enables you to modify the specification of the current model and to fit the modified model, which is then displayed in the viewer.
Refit Model: refits the current model using data within the current fit range. This action also causes the ranges to be reset if the data range has changed.
Reevaluate Model: reevaluates the current model using data within the current evaluation range. This action also causes the ranges to be reset if the data range has changed.

View

See the View Selection Icons section. It describes each of the items available under View, except Zoom Way Out.

Zoom Way Out: zooms the plot out as far as it will go, undoing all prior zoom in operations.

Tools

Link Viewer: See Link/Unlink under Tool Bar Icons.

Options

Time Ranges

brings up the Time Ranges Specification window to enable you to change the period of fit, period of evaluation, or forecast horizon to be applied to subsequently fit models.

Statistics of Fit

brings up the Statistics of Fit Selection window, which presents a list of statistics that the system can display. Use this action to customize the list of statistics shown in the statistics of fit table and available for selection in the Model Selection Criterion menu.

Forecast Options

brings up the Forecast Options window, which enables you to control the widths of forecast confidence limits and control the kind of predicted values computed for models that include series transformations.

Residual Plot Options

Provides a choice of four methods of computing prediction errors for models which include a data transformation.

Prediction Errors: computes the difference between the transformed series actual values and model predictions.
Normalized Prediction Errors: computes prediction errors in normalized form.
Model Residuals: computes the difference between the untransformed series values and the untransformed model predictions.
Normalized Model Residuals: computes model residuals in normalized form.

Number of Lags

brings up a window to enable you to specify the number of lags shown in the Prediction Error Autocorrelations and Prediction Error Tests views. You can also use the Zoom In and Zoom Out actions to control the number of lags displayed.

Correlation Probabilities

controls whether the bar charts in the Prediction Error Autocorrelations view represent significance probabilities or values of the correlation coefficient. A check mark or filled check box next to this item indicates that significance probabilities are displayed. In each case the bar graph horizonal axis label changes accordingly.

Include Interventions

controls whether intervention effects defined for the current series are automatically added as predictors to the models considered by the automatic selection process. A check mark or filled check box next to this item indicates that the option is turned on.

Print Audit Trail

prints to the SAS log information about the models fit by the system. A check mark or filled check box next to this item indicates that the audit option is turned on.

Show Source Statements

controls whether SAS statements submitted by the forecasting system are printed in the SAS log. When the Show Source Statements option is selected, the system sets the SAS system option SOURCE before submitting SAS statements; otherwise, the system uses the NOSOURCE option. Note that only some of the functions performed by the forecasting system are accomplished by submitting SAS statements. A check mark or filled check box next to this item indicates that the option is turned on.

Mouse Button Actions

You can examine the data values of individual points in the Model Predictions, Model Prediction Errors, and Forecast Graph views of the Model Viewer by positioning the mouse cursor over the point and clicking the left mouse button. The date/time and data values as well as the type (actual, predicted, and so forth) are displayed in a box that appears in the upper right corner of the Viewer window. Click the mouse elsewhere or select any action to dismiss the data box.

Similarly, you can display values in the Prediction Error Autocorrelations view by clicking on any of the bars. Clicking on bars in the Prediction Error Tests view displays a Recommendation for Current View window which explains the test represented by the bar.

When you select the Zoom In action in the Predicted Values, Model Prediction Errors, and Forecasted Values views, you can use the mouse to define a region of the graph to zoom. Position the mouse cursor at one corner of the region, press the left mouse button, and move the mouse cursor to the opposite corner of the region while holding the left mouse button down. When you release the mouse button, the plot is redrawn to show an expanded view of the data within the region you selected.
