The G3D Procedure

Example 6: Rotating a Scatter Plot

Procedure features:

	CAXIS=
	ROTATE=
	SIZE=
	XTICKNUM
	YTICKNUM=
	ZMAX=
	ZMIN=
	ZTICKNUM=

Other features:

DATA step

Sample library member:

GR29N06

[IMAGE]

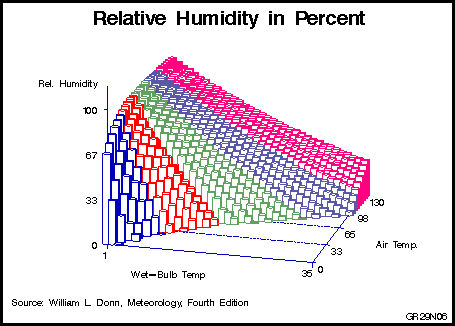

This example produces a scatter plot of humidity data. It uses color to distinguish air temperature ranges. The plot is rotated -15°.

libname reflib 'SAS-data-library'; goptions reset=global gunit=pct border cback=white colors=(black blue green red) ftext=swiss ftitle=swissb htitle=6 htext=4;

data reflib.humid; length colorval $ 8.; label wtemp='Wet-Bulb Temp'; label relhum='Rel. Humidity'; label atemp=' Air Temp.'; input atemp wtemp relhum; if atemp<26 then colorval="blue"; else if atemp>=26 and atemp<+52 then colorval="red"; else if atemp>=52 and atemp<+78 then colorval="green"; else if atemp>=78 and atemp<+104 then colorval="lib"; else if atemp>104 then colorval="pink "; datalines; 0 1 67 0 2 33 ...more data lines... 130 34 29 130 35 28 ;

title 'Relative Humidity in Percent'; footnote1 j=l ' Source: William L. Donn, Meteorology, Fourth Edition'; footnote2 j=r 'GR29N06 ';

proc g3d data=reflib.humid; scatter atemp*wtemp=relhum / shape='pillar' color=colorval caxis=blue rotate=-15 size=.5 yticknum=5 xticknum=2 zticknum=4 zmin=0 zmax=100; run; quit;
