The GIMPORT Procedure

Example 1: Creating and Importing a CGM

Procedure features:
GIMPORT statement options:
FILEREF=
FILETYPE=
FORMAT=
Other features:
FILENAME statement
GOPTIONS stratement
Sample library member: GR17N01

[IMAGE]

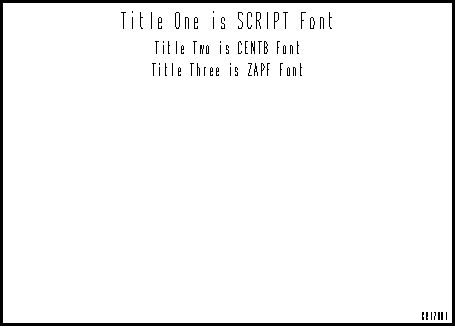

This example creates a CGM in binary format by directing SAS/GRAPH output to a graphics stream file (GSF) and using a CGM device driver. It uses the GIMPORT procedure to import the resulting CGM into SAS/GRAPH where it can be viewed and stored in a catalog. (See SAS/GRAPH Programs for additional information on catalog entries and graphics stream files.) The output shows the imported version of the graphic. Note that the output uses the default font because the specified fonts are unavailable. Adjusting the Graphics Output shows how to map these fonts to get the output that you want. Also see About Font Mapping for additional information.
 Note about code
filename gsasfile 'external-file';
goptions reset=global gunit=pct border cback=white
         colors=(black)
         gaccess=gsasfile gsfmode=replace
         noprompt device=cgmcrt
         hsize=5 in vsize=5 in;
 Note about code
title1 f=script h=7 'Title One is SCRIPT Font';
title2 f=centb h=5 'Title Two is CENTB Font';
title3 f=zapf h=5 'Title Three is ZAPF Font';
footnote h=3 f=swiss j=r 'GR17N01 ';
 Note about code
proc gslide;
run;
quit;
 Note about code
goptions reset=goptions border cback=white
         colors=(black);
 Note about code
proc gimport fileref=gsasfile
             filetype=cgm
             format=binary;
run;

Font List shows the font list that is displayed in the log file. The font list contains all of the fonts that are used by the CGM. The warning messages following the font list indicate which fonts can be remapped using the MAP statement.

Font List
  .
  .
  .

  NOTE: These fonts are used in this CGM file. You may use the MAP statement
        to map these fonts to
SAS/GRAPH
 fonts.
  1. SIMPLEX
  2. BRUSH
  3. CENTB
  4. CENTBE
  5. CENTBI
  6. CENTBIE
  7. CENTX
  8. CENTXE
  9. CENTXI
  10. CENTXIE
  11. GERMAN
  12. GITALIC
  13. DUPLEX
  14. COMPLEX
  15. TRIPLEX
  16. TITALIC
  17. ITALIC
  18. OLDENG
  19. SCRIPT
  20. CSCRIPT
  21. SWISS
  22. SWISSE
  23. SWISSB
  24. SWISSBE
  25. SWISSBI
  26. SWISSBIE
  27. SWISSX
  28. SWISSXE
  29. SWISSXB
  30. SWISSXB
  31. SWISSXBE
  32. SWISSI
  33. SWISSIE
  34. SWISSL
  35. SWISSLE
  36. ZAPF
  37. ZAPFE
  38. ZAPFB
  39. ZAPFBE
  40. ZAPFBI
  41. ZAPFBIE
  42. ZAPFI
  43. ZAPFIE
  WARNING: Unspecified font index 19. Font has been mapped to the default font.
  WARNING: Unspecified font index 3. Font has been mapped to the default font.
  WARNING: Unspecified font index 36. Font has been mapped to the default font.
  WARNING: Unspecified font index 21. Font has been mapped to the default font.
  .
  .
  .
