INSET Statement

Requirement:	The INSET statement must follow the HISTOGRAM, PROBPLOT, or QQPLOT statement that creates the plot that you want to augment. The inset appears in all the graphs that the preceding plot statement produces.
Tip:	You can use multiple INSET statements.
Featured in:	Displaying a Reference Line on a Normal Probability Plot and Creating a Two-Way Comparative Histogram

Arguments

keyword(s)

specifies one or more keywords that identify the information to display in the inset. PROC UNIVARIATE displays the information in the order that you request the keywords.

You can specify statistical keywords, primary keywords, and secondary keywords. The available statistical keywords are

Available Statistical Keywords in the INSET statement

Descriptive statistic keywords
	CSS	CV	KURTOSIS
	MAX	MEAN	N
	MIN	MODE	RANGE
	NMISS	NOBS	STDMEAN
	SKEWNESS	STD	USS
	SUM	SUMWGT	VAR
Quantile statistic keywords
	MEDIAN	P1	P5
	P10	P90	P95
	P99	Q1	Q3
	QRANGE
Robust statistic keywords
	GINI	MAD	QN
	SN	STD_GINI	STD_MAD
	STD_QN	STD_QRANGE	STD_SN
Hypothesis testing keywords
	MSIGN	PROBM	PROBT
	NORMALTEST	PROBN	SIGNRANK
	PNORMAL	PROBS	T

A primary keyword allows you to specify secondary keywords in parentheses immediately after the primary keyword. Primary keywords are BETA, EXPONENTIAL, GAMMA, LOGNORMAL, NORMAL, WEIBULL, WEIBULL2, KERNEL, and KERNELn. If you specify a primary keyword but omit a secondary keyword, the inset displays a colored line and the distribution name as a key for the density curve. For a list of the secondary keywords, see Available Secondary Keywords .

By default, PROC UNIVARIATE identifies inset statistics with appropriate labels and prints numeric values using appropriate formats. To customize the label, specify the keyword followed by an equal sign (=) and the desired label in quotes. To customize the format, specify a numeric format in parentheses after the keyword. Labels can have up to 24 characters. If you specify both a label and a format for a statistic, the label must appear before the format. For example,

inset n='Sample Size' std='Std Dev' (5.2);

requests customized labels for two statistics and displays the standard deviation with field width of 5 and two decimal places.

Available Secondary Keywords

Keyword		Alias	Description
For BETA primary keyword
	ALPHA	SHAPE1	first shape parameter
	BETA	SHAPE2	second shape parameter
	SIGMA	SCALE	scale parameter
	THETA	THRESHOLD	lower threshold parameter
For EXP primary keyword
	SIGMA	SCALE	scale parameter
	THETA	THRESHOLD	threshold parameter
For GAMMA primary keyword
	ALPHA	SHAPE	shape parameter
	SIGMA	SCALE	scale parameter
	THETA	THRESHOLD	threshold parameter
For LOGNORMAL primary keyword
	SIGMA	SHAPE	shape parameter
	THETA	THRESHOLD	threshold parameter
	ZETA	SCALE	scale parameter
For NORMAL primary keyword
	MU	MEAN	mean parameter
	SIGMA	STD	shape parameter
For WEIBULL primary keyword
	C	SHAPE	shape parameter
	SIGMA	SCALE	scale parameter
	THETA	THRESHOLD	threshold parameter
For WEIBULL2 primary keyword
	C	SHAPE	shape parameter
	SIGMA	SCALE	scale parameter
	THETA	THRESHOLD	known lower threshold parameter
For any parametric distribution primary keyword*
	AD		Anderson-Darling EDF test statistic
	ADPVAL		Anderson-Darling EDF test p-value
	CVM		Cramer-von Mises EDF test statistic
	CVMPVAL		Cramer-von Mises EDF test p-value
	KSD		Kolmogorov-Smirnov EDF test statistic
	KSDPVAL		Kolmogorov-Smirnov EDF test p-value
For KERNEL or KERNELn primary keyword*
	TYPE		kernel type: normal, quadratic, or triangular
	BANDWIDTH	BWIDTH	bandwidth for the density estimate
	C		standardized bandwidth for the density estimate: where sample size, bandwidth, and interquartile range
	AMISE		approximate mean integrated square error (MISE) for the kernel density
* Available with only the HISTOGRAM statement and a BETA, EXPONENTIAL, LOGNORMAL, NORMAL, or WEIBULL distribution.

Requirement:	Some inset statistics are not available unless you request a plot statement and options that calculate these statistics. For example: proc univariate data=score; histogram final / normal; inset mean std normal(ad adpval); run; The MEAN and STD keywords display the sample mean and standard deviation of FINAL. The NORMAL keyword with the secondary keywords AD and ADPVAL display the Anderson-Darling goodness-of-fit test statistic and p-value. The statistics that are specified with the NORMAL keyword are available only because the NORMAL option is requested in the HISTOGRAM statement. The KERNEL or KERNELn keyword is available only if you request a kernel density estimate in a HISTOGRAM statement. The WEIBULL2 keyword is available only if you request a two-parameter Weibull distribution in the PROBPLOT or QQPLOT statement.
Tip:	To specify the same format for all the statistics in the INSET statement, use the FORMAT= option.
Tip:	To create a completely customized inset, use a DATA= data set. The data set contains the label and the value that you want to display in the inset.
Tip:	If you specify multiple kernel density estimates, you can request inset statistics for all the estimates with the KERNEL keyword. Alternatively, you can display inset statistics for individual curves with KERNELn keyword, where n is the curve number between 1 and 5.
Featured in:	Displaying a Reference Line on a Normal Probability Plot and Creating a Two-Way Comparative Histogram

DATA=SAS-data-set

requests that PROC UNIVARIATE display customized statistics from a SAS data set in the inset table. The data set must contain two variables:

_LABEL_	a character variable whose values provide labels for inset entries.
_VALUE_	a variable that is either character or numeric and whose values provide values for inset entries.

The label and value from each observation in the data set occupy one line in the inset. The position of the DATA= keyword in the keyword list determines the position of its lines in the inset.

Options

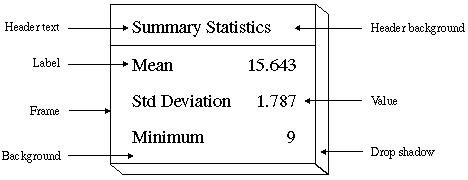

The Inset illustrates the meaning of terms that are used in this section.

The Inset

CFILL=color | BLANK

specifies the color of the background which, if you omit the CFILLH= option, includes the header background.

Default	The background is empty which causes items that overlap the inset (such as curves, histogram bars, or specification limits) to show through the inset.
Tip:	Specify a value for CFILL= so that items that overlap no longer show through the inset. Use CFILL=BLANK to leave the background uncolored.

CFILLH=color

specifies the color of the header background.

Default:

the CFILL= color

CFRAME=color

specifies the color of the frame.

Default:

the same color as the axis of the plot

CHEADER=color

specifies the color of the header text.

Default:

the CTEXT=color

CSHADOW=color

specifies the color of the drop shadow.

Default:

A drop shadow is not displayed.

CTEXT=color

specifies the color of the text.

Default:

the same color as the other text on the plot

DATA

specifies how to use data coordinates to position the inset with the POSITION= option.

Requirement:	The DATA option is available only when you specify POSITION=(x,y). You must place DATA immediately after the coordinates (x,y).
Main Discussion:	Positioning the Inset Using Coordinates
See also:	POSITION= option

FONT=font

specifies the font of the text.

Default:	If you locate the inset in the interior of the plot then the font is SIMPLEX. If you locate the inset in the exterior of the plot then the font is the same as the other text on the plot.
Featured in:	Creating a Two-Way Comparative Histogram

FORMAT=format

specifies a format for all the values in the inset.

Interaction:	If you specify a format for a particular statistic, then this format overrides FORMAT=format.
See also:	For more information about SAS formats, see SAS Language Reference: Dictionary
Featured in:	Displaying a Reference Line on a Normal Probability Plot

HEADER=string

specifies the header text where string cannot exceed 40 characters.

Default:	No header line appears in the inset.
Interaction:	If all the keywords that you list in the INSET statement are secondary keywords that correspond to a fitted curve on a histogram, PROC UNIVARIATE displays a default header that indicates the distribution and identifies the curve.
Featured in:	Displaying a Reference Line on a Normal Probability Plot

HEIGHT=value

specifies the height of the text.

Featured in:

Creating a Two-Way Comparative Histogram

NOFRAME

suppresses the frame drawn around the text.

Featured in:

Creating a Two-Way Comparative Histogram

POSITION=position

determines the position of the inset. The position is a compass point keyword, a margin keyword, or a pair of coordinates (x,y).

Alias:	POS=
Default:	NW, which positions the inset in the upper left (northwest) corner of the display.
Requirement:	You must specify coordinates in axis percentage units or axis data units.
Main discussion:	Positioning the Inset Using Compass Point , Positioning the Inset in the Margins , and Positioning the Inset Using Coordinates
Featured in:	Displaying a Reference Line on a Normal Probability Plot and Creating a Two-Way Comparative Histogram

REFPOINT=BR | BL | TR | TL

specifies the reference point for an inset that PROC UNIVARIATE positions by a pair of coordinates with the POSITION= option. The REFPOINT= option specifies which corner of the inset frame that you want to position at coordinates (x,y). The reference points are

BL	bottom left
BR	bottom right
TL	top left
TR	top right

Default:	BL
Requirement:	You must use REFPOINT= with POSITION=(x,y) coordinates.
Featured in:	Displaying a Reference Line on a Normal Probability Plot

Positioning the Inset Using Compass Point

To position the inset by using a compass point position, use the keyword N, NE, E, SE, S, SW, W, or NW in the POSITION= option. The default position of the inset is NW.

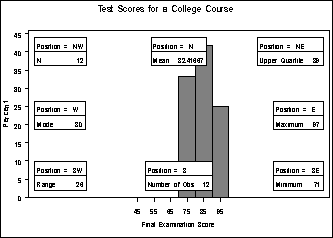

The following statements produce a histogram to show the position of the inset for the eight compass points:

proc univariate data=score noprint;
   histogram final / cfill=gray midpoints=45 to 95 by 10 barwidth=5;
   inset n     / cfill=blank header='Position = NW' pos=nw;
   inset mean  / cfill=blank header='Position = N ' pos=n ;
   inset sum   / cfill=blank header='Position = NE' pos=ne;
   inset max   / cfill=blank header='Position = E ' pos=e ;
   inset min   / cfill=blank header='Position = SE' pos=se;
   inset nobs  / cfill=blank header='Position = S ' pos=s ;
   inset range / cfill=blank header='Position = SW' pos=sw;
   inset mode  / cfill=blank header='Position = W ' pos=w ;
   label final='Final Examination Score';
   title 'Test Scores for a College Course';
run;

Positioning the Inset in the Margins

To position the inset in one of the four margins that surround the plot area use the margin keywords LM, RM, TM, or BM in the POSITION= option. Locating the Inset in the Margins shows the location of the inset in the margin.

Locating the Inset in the Margins

Margin positions are recommended if you list a large number of statistics in the INSET statement. If you attempt to display a lengthy inset in the interior of the plot, it is most likely that the inset will collide with the data display.

Positioning the Inset Using Coordinates

To position the inset with coordinates, use POSITION=(x,y). You specify the coordinates in axis data units or in axis percentage units (the default).

data unit

If you specify the DATA option immediately following the coordinates, PROC UNIVARIATE positions the inset by using axis data units. For example, the following statements place the bottom left corner of the inset at 12.5 on the horizontal axis and 10 on the vertical axis:

proc univariate data=score;
   histogram final / midpoints 45 to 95 by 10 barwidth=5
                     cfill=gray ;
   inset n / header   = 'Position=(12.5,10)'
             position = (12.5,10) data;
run;

By default, the specified coordinates determine the position of the bottom left corner of the inset. To change this reference point, use the REFPOINT= option (see the next example).

axis percent unit

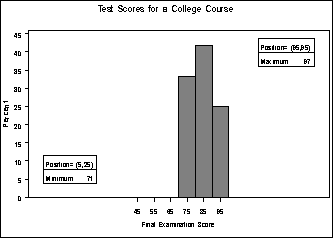

If you omit the DATA option, PROC UNIVARIATE positions the inset by using axis percentage units. The coordinates in axis percentage units must be between 0 and 100. The coordinates of the bottom left corner of the display are (0,0), while the upper right corner is (100,100). For example, the following statements create a histogram and use coordinates in axis percentage units to position the two insets:

proc univariate data=sccore;
   histogram final / midpoints 45 to 95 by 10 barwidth=5
                     cfill=gray;
   inset min / position = (5,25)
               header   = 'Position=(5,25)'
               refpoint = tl;
   inset max / position = (95,95)
               header   = 'Position=(95,95)'
               refpoint = tr;
   run;

The REFPOINT= option determines which corner of the inset to place at the coordinates that are specified with the POSITION= option. The first inset uses REFPOINT=TL, so that the top left corner of the inset is positioned 5% of the way across the horizontal axis and 25% of the way up the vertical axis. The second inset uses REFPOINT=TR, so that the top right corner of the inset is positioned 95% of the way across the horizontal axis and 95% of the way up the vertical axis.
