CONTRAST Statement

The GLM Procedure

CONTRAST Statement

CONTRAST 'label' effect values < ... effect values > < / options > ;

The CONTRAST statement enables you to perform custom hypothesis tests by specifying an L vector or matrix for testing the univariate hypothesis ${L \beta}=0$ or the multivariate hypothesis L B M = 0. Thus, to use this feature you must be familiar with the details of the model parameterization that PROC GLM uses. For more information, see the "Parameterization of PROC GLM Models" section. All of the elements of the L vector may be given, or if only certain portions of the L vector are given, the remaining elements are constructed by PROC GLM from the context (in a manner similar to rule 4 discussed in the "Construction of Least-Squares Means" section). There is no limit to the number of CONTRAST statements you can specify, but they must appear after the MODEL statement. In addition, if you use a CONTRAST statement and a MANOVA, REPEATED, or TEST statement, appropriate tests for contrasts are carried out as part of the MANOVA, REPEATED, or TEST analysis. If you use a CONTRAST statement and a RANDOM statement, the expected mean square of the contrast is displayed. As a result of these additional analyses, the CONTRAST statement must appear before the MANOVA, REPEATED, RANDOM, or TEST statement.

In the CONTRAST statement,

label: identifies the contrast on the output. A label is required for every contrast specified. Labels must be enclosed in quotes.
effect: identifies an effect that appears in the MODEL statement, or the INTERCEPT effect. The INTERCEPT effect can be used when an intercept is fitted in the model. You do not need to include all effects that are in the MODEL statement.
values: are constants that are elements of the L vector associated with the effect.

You can specify the following options in the CONTRAST statement after a slash(/):

E

displays the entire L vector. This option is useful in confirming the ordering of parameters for specifying L.

E=effect

specifies an error term, which must be one of the effects in the model. The procedure uses this effect as the denominator in F tests in univariate analysis. In addition, if you use a MANOVA or REPEATED statement, the procedure uses the effect specified by the E= option as the basis of the E matrix. By default, the procedure uses the overall residual or error mean square (MSE) as an error term.

ETYPE=n

specifies the type (1, 2, 3, or 4, corresponding to Type I, II, III, and IV tests, respectively) of the E= effect. If the E= option is specified and the ETYPE= option is not, the procedure uses the highest type computed in the analysis.

SINGULAR=number

checking (GLM) tunes the estimability checking. If ABS(L-LH) > C×number for any row in the contrast, then L is declared nonestimable. H is the (X'X)^-X'X matrix, and C is ABS(L) except for rows where L is zero, and then it is 1. The default value for the SINGULAR= option is 10^-4. Values for the SINGULAR= option must be between 0 and 1.

As stated previously, the CONTRAST statement enables you to perform custom hypothesis tests. If the hypothesis is testable in the univariate case, SS( $H_0\colon {L \beta}=0$ ) is computed as

(Lb)'(L(X'X)^- L')^-1(Lb)

where b = (X'X)^-X'y. This is the sum of squares displayed on the analysis-of-variance table.

For multivariate testable hypotheses, the usual multivariate tests are performed using

H = M'(LB)' (L(X'X)^- L')^-1 (LB)M

where B = (X'X)^-X'Y and Y is the matrix of multivariate responses or dependent variables. The degrees of freedom associated with the hypothesis is equal to the row rank of L. The sum of squares computed in this situation are equivalent to the sum of squares computed using an L matrix with any row deleted that is a linear combination of previous rows.

Multiple-degree-of-freedom hypotheses can be specified by separating the rows of the L matrix with commas.

For example, for the model

   proc glm;
      class A B;
      model Y=A B;
   run;

with A at 5 levels and B at 2 levels, the parameter vector is

$(\mu \alpha_1 \alpha_2 \alpha_3 \alpha_4 \alpha_5 \beta_1 \beta_2)$

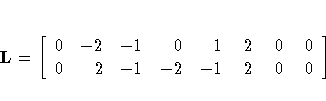

To test the hypothesis that the pooled A linear and A quadratic effect is zero, you can use the following L matrix:

$L = [ 0 & -2 & -1 & 0 & 1 & 2 & 0 & 0 \ 0 & 2 & -1 & -2 & -1 & 2 & 0 & 0 \ ]$

The corresponding CONTRAST statement is

   contrast 'A LINEAR & QUADRATIC'
            a -2 -1  0  1  2,
            a  2 -1 -2 -1  2;

If the first level of A is a control level and you want a test of control versus others, you can use this statement:

   contrast 'CONTROL VS OTHERS'  a -1 0.25 0.25 0.25 0.25;

See the following discussion of the ESTIMATE statement and the "Specification of ESTIMATE Expressions" section for rules on specification, construction, distribution, and estimability in the CONTRAST statement.
