Track 1 & 2
Speaker 8 & 2
Parameters:
Frequency
Frequency Range
Duration (ms)
Duration Range
Delay
Ramp (ms)
Mod.Index
M.I.Range
200
10
15
5
1, 5, 10, 15
2000
2
0
Frequency
Frequency Range
Duration (ms)
Duration Range
Delay
Ramp (ms)
Mod.Index
M.I.Range
200
10
20
5
1, 5, 10, 15 2000
2
0
Frequency
Frequency Range
Duration (ms)
Duration Range
Delay
Ramp (ms)
Mod.Index
M.I.Range
200
10
25
5
1, 5, 10, 15 2000
2
0
This sequence of 16 granular presets, paced at 2" each, is repeated 6 times, controlled by a score. The quasi-synch approach creates a series of modulating frequencies because of the quasi-periodicity established by the grain duration + delay. These modulating frequencies are centred at 200/N, for N = 3, 4, 5, ... 9 (i.e. 66.7, 50, 40, 33.3, 28.6, 25 and 22.2 Hz) which are subharmonics of the 200 Hz centre frequency, hence the sense of harmonic chords which is created. Note the various dur+delay combinations (e.g. 15 ms, 20 ms = 15 + 5 ms, 25 ms = 20 + 5 = 15 +10 ms, 30 ms = 25 + 5 = 20 + 10 = 15 + 15 ms, 35 ms = 30 + 5 = 25 + 10 = 20 + 15 ms, 40 = 30 + 10 = 25 + 15 ms, 45 = 30 + 15 ms).
Frequency
Frequency Range
Duration (ms)
Duration Range
Delay
Ramp (ms)
Mod.Index
M.I.Range
200
10
30
5
1, 5, 10, 15 2000
2
0
C:M = 1:1, Car/Mod W.F. = 1, 1; during the first 3 repetitions of the 16 event sequence, ramp Mod.Index +1, Mod.Ind.Rng + 1 gradually with a random INC (0 or 1); ramp the same parameters down during the second 3 repetitions of the sequence
Track 3 & 4
Speaker 6 & 4
Parameters:
Same sequence as tracks 1&2
C:M = 2:1, Car/Mod W.F. = 1, 1; during the first 3 repetitions of the 16 event sequence, ramp Mod.Index +1, Mod.Ind.Rng + 1 gradually with a random INC (0 or 1); ramp the same parameters down during the second 3 repetitions of the sequence
Track 5 & 6
Speaker 3 & 5
Parameters:
Same sequence as tracks 1&2 except grain Frequency = 150 Hz
C:M = 1:1, Car/Mod W.F. = 1, 1; during the first 3 repetitions of the 16 event sequence, ramp Mod.Index +1, Mod.Ind.Rng + 1 gradually with a random INC (0 or 1); ramp the same parameters down during the second 3 repetitions of the sequence
Track 7 & 8
Speaker 7 & 1
Parameters:
Same sequence as tracks 1&2 except grain Frequency = 250 Hz
C:M = 1:1, Car/Mod W.F. = 1, 1; during the first 3 repetitions of the 16 event sequence, ramp Mod.Index +1, Mod.Ind.Rng + 1 gradually with a random INC (0 or 1); ramp the same parameters down during the second 3 repetitions of the sequence

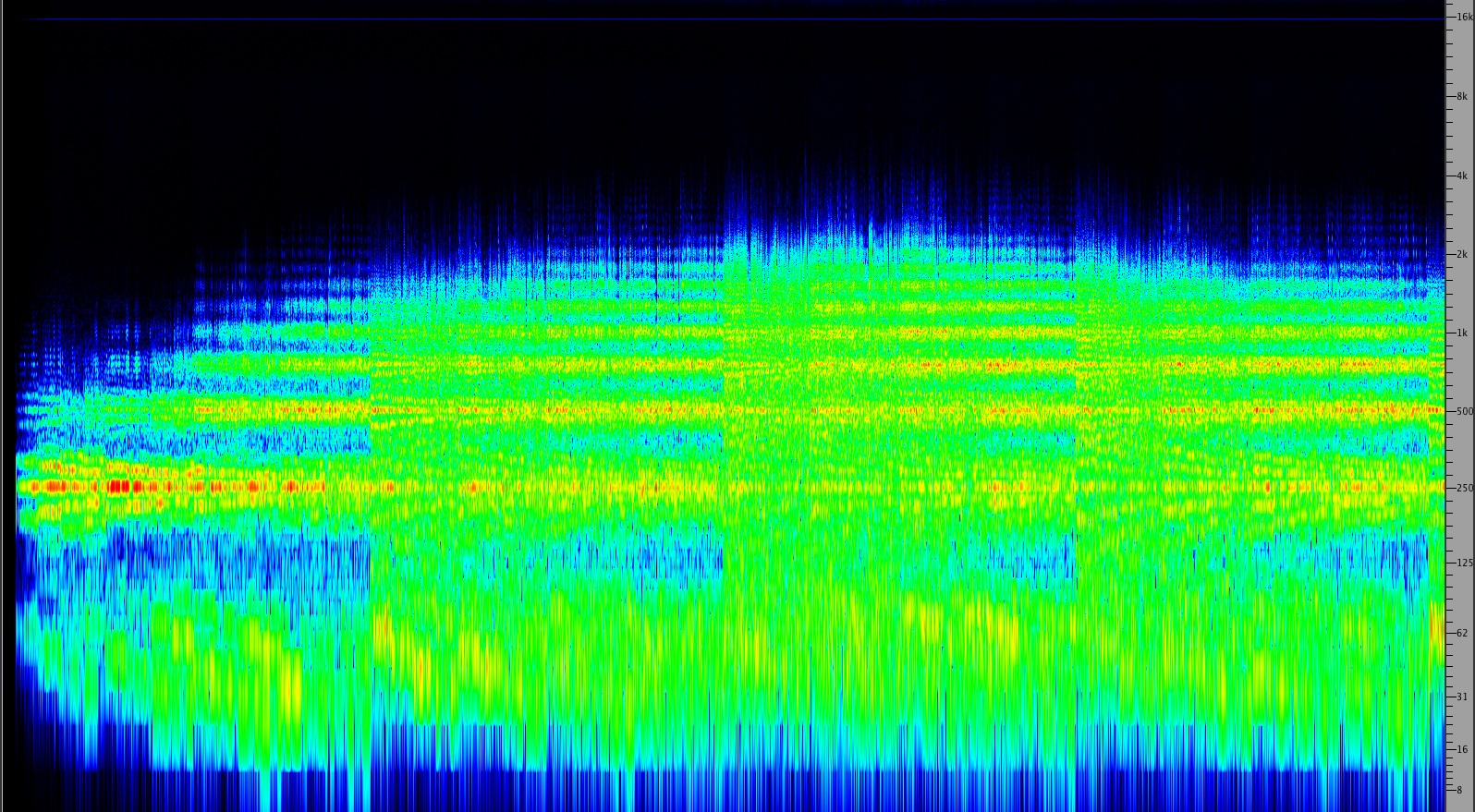

Spectrogram

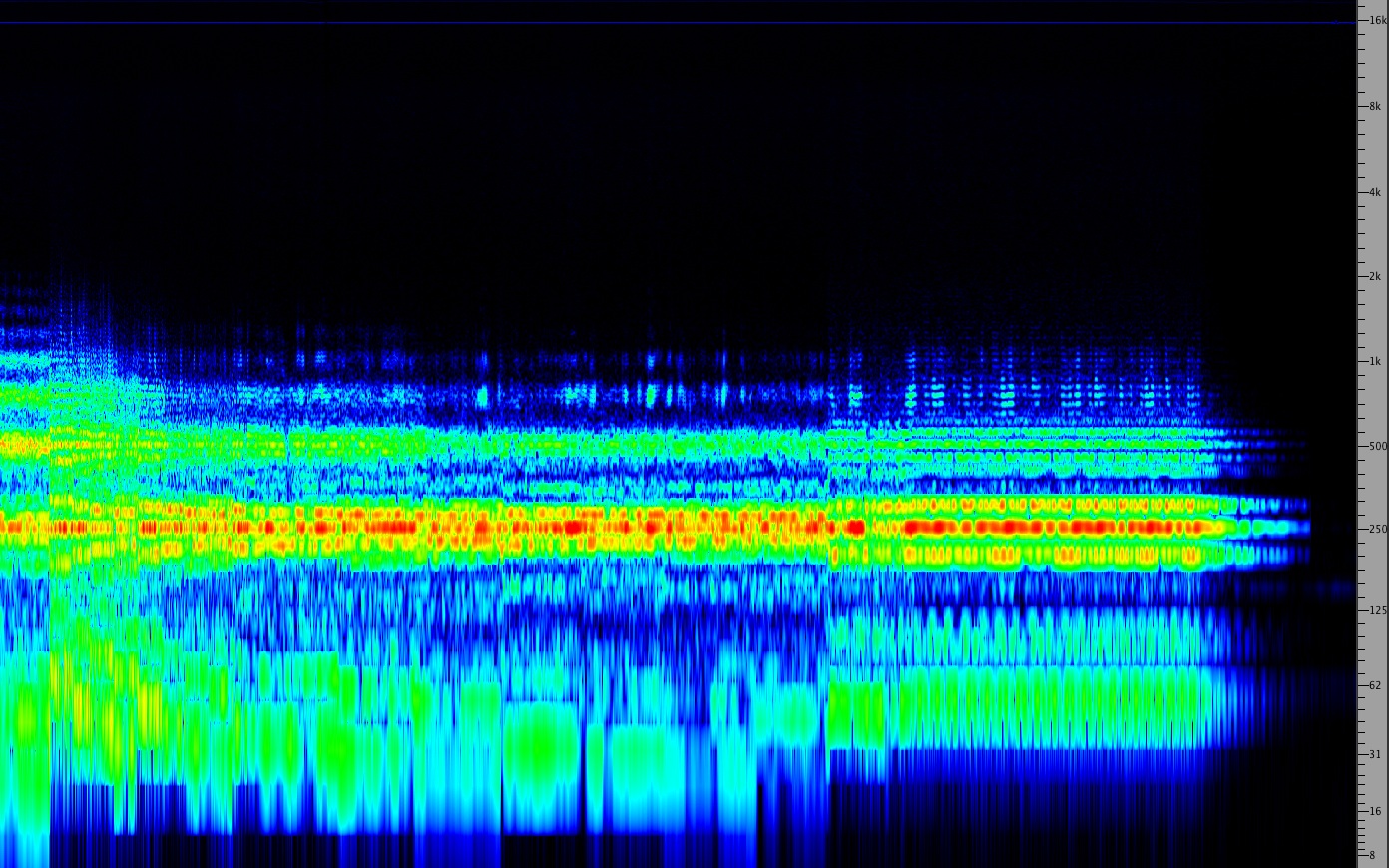

Track 1 (start) - Track 1 (end) - Track 3 (end) - Track 7 (start) - Track 7 (end, detail)
|
|
|
