A Beautiful Machine

We will put bits and pieces of helpful information related to the beautiful machine project here.  This is a relatively new page, so it will have lots of "rough spots"; suggestions welcomed!

First, here's a link to the pages in the book by Pepe that I often refer to. Lots of useful figures, like that below, and descriptions of linkages to help you design the mechanism for your beautiful machine.  Check the book out of the library (on Reserve for IAT106) for ideas and inspiration for the "figures". Here's a figure from the book showing a 4-bar-like linkage.

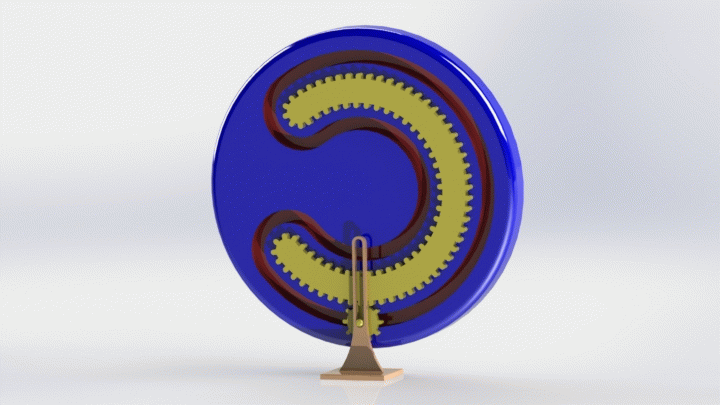

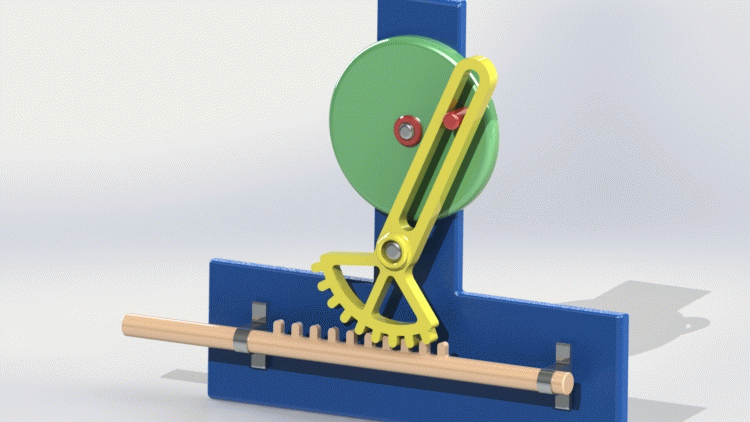

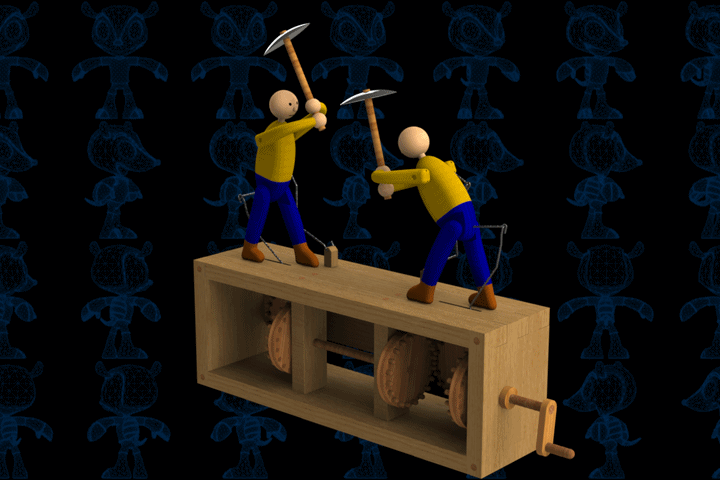

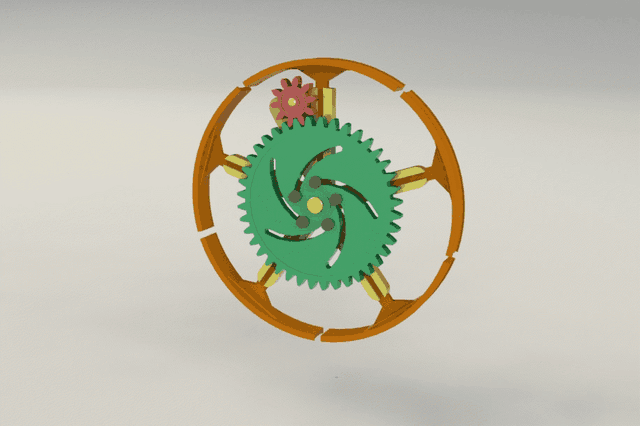

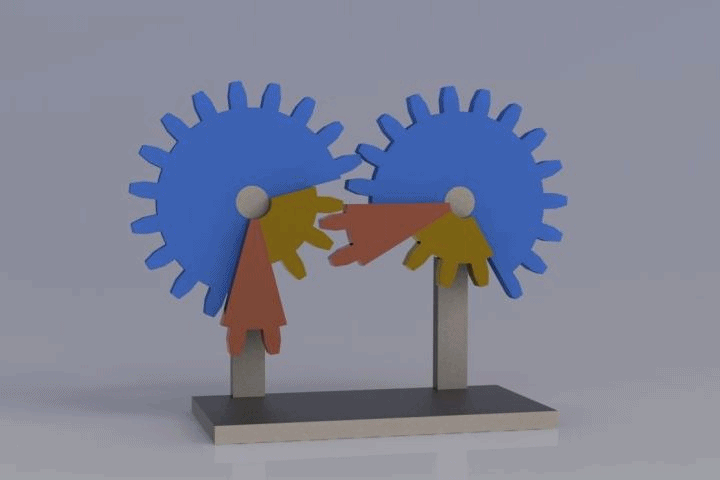

Examples of relevant beautiful machine-like devices


image image
image image
image image
image image
image image
image image
Simple crank-driven platform with figure
image from flying pig

Below are some links to interesting, and I hope helpful, SolidWorks models. We will be talking about these at various points in the course and you'll learn how to build and alter them. Have fun experimenting with these!

SolidWorks Models

Second, here's a couple of links to some SolidWorks models that you can "operate" to see how some mechanisms operate. You are free to incorporate any part of these in any part of your beautiful machines!

Slotted Crank Models:
These are all in this zipped file.
  • PEPE_114_3.SLDASM - interesting variation of a 4-bar. Taken from the array of mechanisms shown in Pepe.

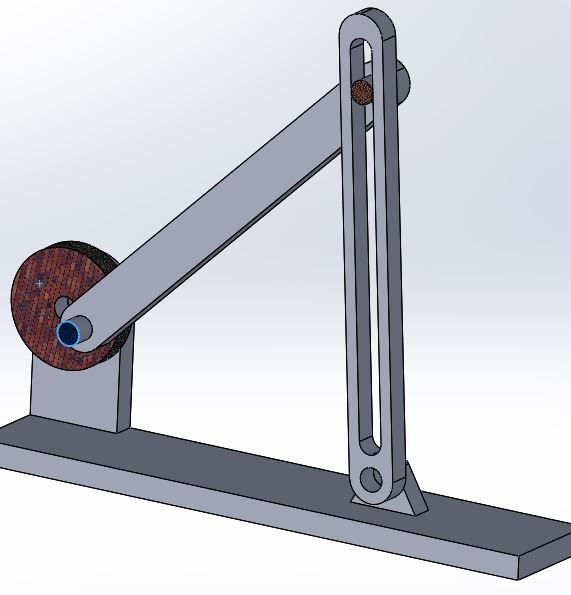

  • linkage2-4bar.SLDASM

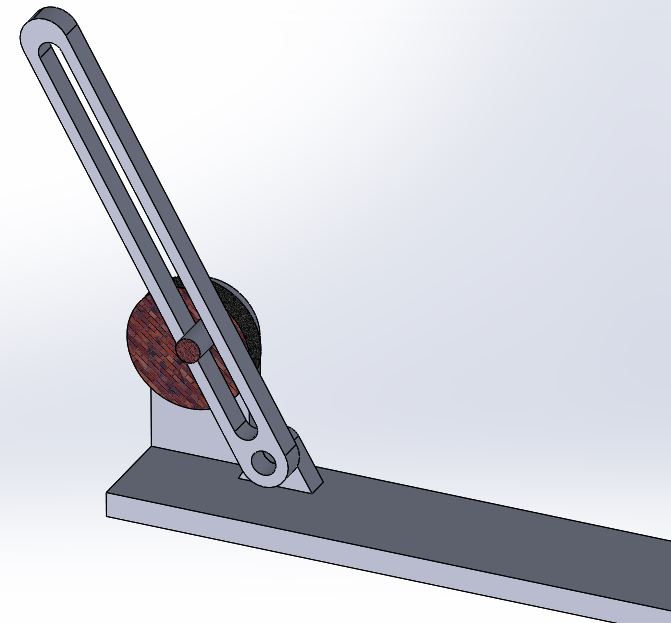

  • linkage1.SLDASM
linkage1    linkage2PEPE_114
linkage1linkage2Pepe 114

PEPE model, 2-sided

Note: this model is very experimental and quite incomplete!  It "mostly" works if you crank it with the small gear on the opposite side.

However, you should be able to experiment with gear sizes and link lengths to get some interesting motions out.
Pepe double link
Scotch Yoke:
These are slotted link mechanisms, converting linear motion of a slider into rotational motion -- or vice-versa Lots of variations are possible, find them with google.
Slider Crank:

This is the simple slider crank demo'd in class.

slider crank
SolidWorks Cam & Gear Model
Simple Cam and Gear model to illustrate gear mates and cam/tangent mates [rar]
Note that the gear on the shaft is "missing" the mate needed to keep it from sliding back and forth.  Note also that it "works" even with this not present!

Here's the simplified machine that I built in class, very similar to the above but with an added cam/cam-follower, with a true cam mate.

N.B. -- these examples of previous class work are below the standard required for this class. We will explain why these designs are poor and no longer acceptable.

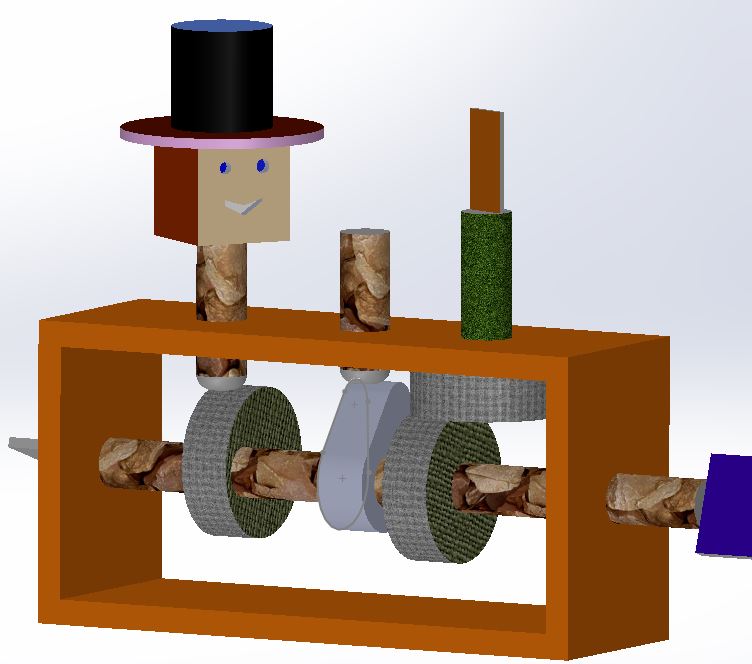

camgear modelSimplified machine model with cam and tangent mates
Simple cam and gear modelSimplified machine with both
tangent and cam mates

Example machine Models


AMT-eg-CrocMonkeySimple ATM using crank
SolidWorks model of complete machine ("Crocodile and Monkey")SolidWorks model of simple machine using a crank

Pulley Models
SolidWorks models in this zipped file.
2 pulleys3 pulleys right crossed2 pulleys right angles
Simple 2-pulley model with standard simple belt. Note: NO belt geometry.Three-pulley Model with  crossed belt. No belt geometry.2-pulley model with pulleys at right angles. Note: SW does not handle this so reversed gear mate is used. No belt geometry.

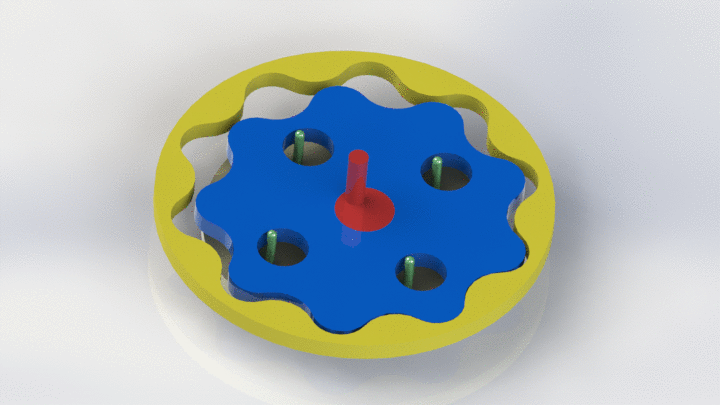

Links to Interesting and/or helpful mechanisms
