Cartographic Model for the Multi-Criteria Evaluation

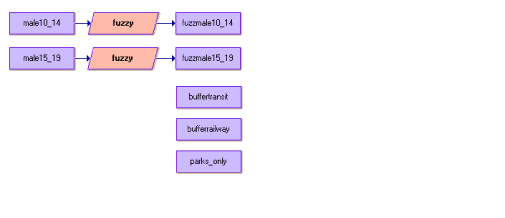

Cartographic Model: The violet coloured rectangles symbolize a raster image. The peach coloured
polygons symbolize an Idrisi module.
This cartographic model show all the input images (factors and
constraints) for the multi-criteria evaluation in Idrisi. The two fuzzy
images are the factors and the other three are constraints. The fuzzy
images were created with the help of the decision wizard in Idrisi.

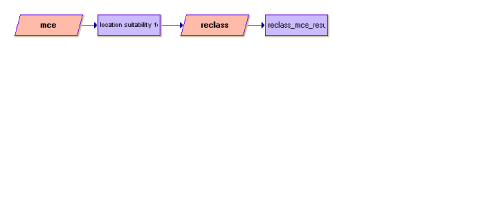

Below is the cartographic model of the multi-criteria evaluation:
Cartographic Model: The violet coloured rectangles symbolize a raster image. The peach coloured
polygons symbolize an Idrisi module.
The actual multi-criteria evaluation was performed with the decision wizard in Idrisi. The reclass module was performed to find the best top three sites for a new skate park from the output multi-criteria evaluation image.
