The analysis of our results to meet our objectives and the purpose of our project was performed by comparing the areal coverages of each vegetation class to the old map.  It consists of two parts: the comparison of the different classification techniques and the comparison between the classified Ikonos imagery and the old map.  The evaluation of the MAUP was accomplished in the same manner.

Comparison of the different classification techniques
The basis of this analysis consists of a visual interpretation of the classified imagery and of the comparison of the areal coverage of each class.  Therefore we calculated the areas in Idirsi and performed further computations in MS Excel.

Unsupervised classification
The visual interpretation of the results for the two unsupervised procedures (see Map Gallery) showed a decrease in Salix Equisetum,... (light green and an increase of the undefinable vegetation class (green) ) in the Isoclust classification.  But both techniques show the same general trends in the areal coverage of each class (see chart below).  The main differences  in comparing the Cluster to the Isoclust classification in percentual coverage is as follows:

                                                                           Cluster       Isoclust
salix-equisetum, equisetum (salix) (category 1)     18.70%      13.66%
undefinable (vegetation) (category 2)                     4.62%        8.66%



Supervised Classification

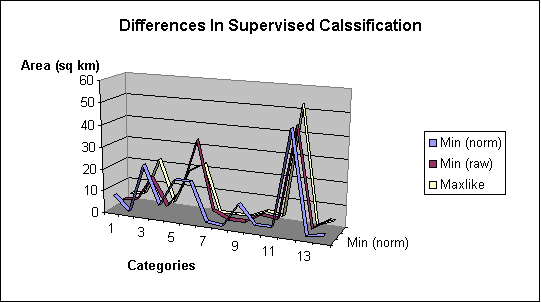

The visual interpretation of the three unsupervised results (see Map Gallery) showed different distributions of the plant assemblages.  The Minimum Distance to Means [normalized distances] classifier was very insensitive in the separation of the Aquatic class (category 1) and the cloud shadows (category 14), whereas the other two classifiers (Minimum Distance to Means [raw distances] classifier and Maximum Likelihood classifier [ML]) rather assigned aquatic vegetation to the cloud shadow class.  Another major difference can be detected in the sixth category (Alnus Salix), where the MDM-raw classifier showed the highest aggregation. Another striking feature is the high proportion of the Decadent Populus assemblage in the MDM-norm classification (category 9).  The MDM-norm seems to tend to support plant assemblages which have a minor share in the MDM-raw and ML classification whereas, the other seemed to support frequently appearing classes. Nevertheless, a general trend in all three classifications cannot be denied (see chart below).  The most striking changes of percentual areal coverage are as follows:


                                         MDM-norm    MDM-raw           ML
Aquatic (cat 1)                            5.30%          2.50%       2.90%
Alnus Salix (cat 6)                     12.88%         24.51%    15.53%
Decadent Populus (cat 9)            7.92%           0.68%      0.72%
Cloud Shadow (cat 14)               1.91%           4.72%     2.82%


Comparison Between the Classified Ikonos Imagery and the Old Map

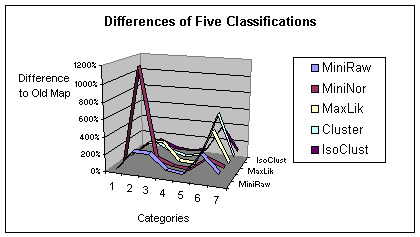

The comparison of the classified and clipped Ikonos images could provide a reference for selecting the proper classification methods. After employing five classification methods, we get five classification images. Since it is difficult to tell the difference exactly by visually interpreting the images, we calculated the areas and created the charts below.


The following conclusions can be drawn:  The MDM-norm classifier shows the greatest difference to the old map in the second category.  The MDM-raw and the Isoclust classifiers result in a generally smaller differnce.  No matter which classification is used, the differences of the five major plant assemblages between 1979 and 2000 cannot be neglected; especially for Alnus-salix and Salix-equisetum.  Another striking feature is the classification of water areas depending on the classification method.  As water is different ‘perceived’ by humans and computers, a classification without ground truthing will result in errors.  Our final choice, the MDM-norm and the Isoclust classifiers represent the biggest and smallest difference from the old map; the former the biggest and the latter the smallest.


Evaluation of the Modifiable Areal Unit Problem – Analysis of Different Resolutions

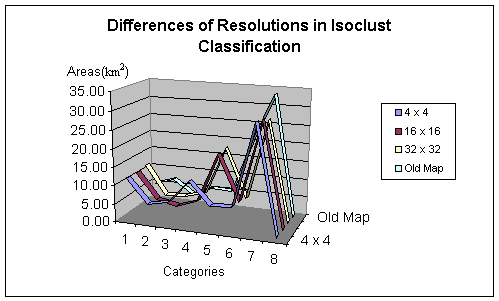

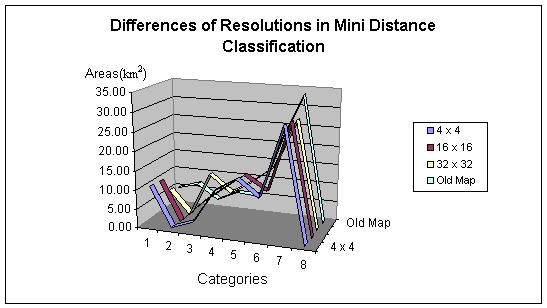

This part is accomplished for the trimmed images, since they also allow us to compare the different results to the vegetation map.  We evaluate the effect of different resolutions (see Map Gallery) based on the classification results of the MDM-norm and the Isoclust classifier.  Accordingly to the previous method we calculated the areas of every category in the different images and created the charts below.




The following conclusions can be drawn: Firstly a change in the total area of the map was observed.  This is due to the aggregation of pixels (the ‘leftover’ of each column and row is lost).  Not only is data averaged, but it is also lost completely.  The larger the resolution, the bigger the change in total area.  Changing resolutions also cause different classification results.  For the plant categories 2, 3 and 4, the areas are quite different regarding resolution and classification techniques.  Most striking is the areal change of the Salix plant assemblage.
