The GCHART Procedure

Overview

The GCHART procedure produces six types of charts: block charts, horizontal and vertical bar charts, pie and donut charts, and star charts. These charts graphically represent the value of a statistic calculated for one or more variables in an input SAS data set. The charted variables can be either numeric or character.

The procedure calculates these statistics:

frequency or cumulative frequency counts
percentages or cumulative percentages
sums
means.

Use the GCHART procedure to

display and compare exact and relative magnitudes
examine the contribution of parts to the whole
analyze where data are out of balance.

About Block Charts

Block charts display the relative magnitude of data with blocks of varying height, each set in a square that represents a category of data (midpoint). Because block charts do not use axes, they are most useful when the relative magnitude of the blocks is more significant than the exact magnitude of any particular block.

Block Chart (GR13N01) shows a simple block chart of total sales for three manufacturing sites. Each site is a midpoint and occupies one square. The name of the site (the midpoint value) is printed below the square. Midpoint values are, by default, arranged in ascending order from left to right. The label below the midpoint grid names the chart variable.

Sales for the site (the chart statistic) are represented by the height of the block; sales amount (the formatted statistic value) is printed below the block. The heading above the blocks describes the type of statistic, in this case SUM.

Block Chart (GR13N01)

[IMAGE]

The program for this chart is in Specifying the Sum Statistic in a Block Chart. For more information on producing block charts, see BLOCK Statement.

About Bar Charts

Horizontal and vertical bar charts display the magnitude of data with bars, each of which represents a category of data (midpoint). The length (or height) of the bars represents the value of the chart statistic for the corresponding midpoint.

Horizontal Bar Chart (GR13N03(a)) shows a simple horizontal bar chart of total sales for three manufacturing sites. Each site is a midpoint and is displayed as a bar. The name of the site (the midpoint value) is printed on the midpoint axis beside the bar. Midpoint values are, by default, arranged in ascending order from top to bottom of the chart and labeled with the name of the chart variable.

The chart statistics, in this case total sales for each site, are represented by the length of the bars. The response axis displays the scale of values for the chart statistic. The table of statistics to the right of the bars displays the exact statistic for each bar. Both a column in the table and the response axis are labeled with the name of the summary variable and the type of statistic.

Horizontal Bar Chart (GR13N03(a))

[IMAGE]

The program for this chart is Specifying the Sum Statistic in Bar Charts.

Vertical Bar Chart (GR13N03(b)) shows the same data presented as a vertical bar chart. The two types of bar charts have essentially the same characteristics, except that horizontal bar charts by default display a table of statistic values to the right of the bars, while vertical bar charts can optionally display the statistic value above or inside of each bar.

Vertical Bar Chart (GR13N03(b))

[IMAGE]

The program for this chart is Specifying the Sum Statistic in Bar Charts. For more information on producing horizontal and vertical bar charts, see HBAR, HBAR3D, VBAR, and VBAR3D Statements.

About Pie and Donut Charts

Pie and donut charts represent the relative contribution of parts to the whole by displaying data as wedge-shaped "slices" of a circle (either a "pie" or "donut"). Each slice represents a category of data (midpoint). The size of each slice (length of the arc) represents the contribution of the corresponding midpoint to the total chart statistic. Donut charts look like pie charts except that they have a hole in the middle in which you can place text.

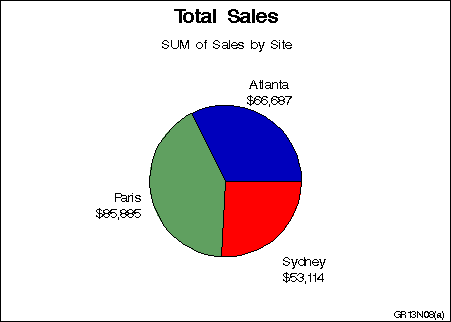

Pie Chart (GR13N08(a)) shows a pie chart of total sales for three manufacturing sites. Each site is a midpoint and is displayed as a slice. By default, the slices are ordered counterclockwise beginning at the 3 o'clock position.

Sales for the site (the chart statistic) are represented by the size of the slice. Both the sales amount (the formatted value of the chart statistic) and the name of the site (the midpoint value) are printed outside of the slice. You can also label pie slices with the percentage of the total statistic value that they represent. The heading above the pie describes the type of statistic (SUM), and names the summary variable (SALES) and the chart variable (SITE).

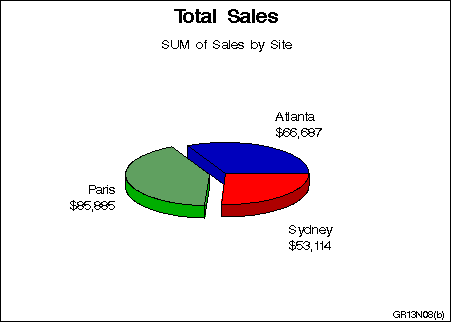

3D Pie Chart (GR13N08(b)) show the three-dimensional version of the same pie chart.

Pie Chart (GR13N08(a))

[IMAGE]

3D Pie Chart (GR13N08(b))

[IMAGE]

The program for these charts is Specifying the Sum Statistic for a Pie Chart. For more information on producing pie or donut charts, see PIE, PIE3D, and DONUT Statements.

About Star Charts

Star charts display data as lines ("spines") radiating from the center of a circle toward the perimeter. Each spine represents a category of data (midpoint). The length of a spine represents the magnitude of the chart statistic for that midpoint starting at the center of the circle, which by default represents 0. The radius of the circle is the length of the longest spine (greatest statistic value) in the chart. Instead of spines, star charts can also display the chart statistic as slices, which are enclosed areas formed by connecting the ends of the spines.

Star Chart (GR13N13) shows the total sales for the three manufacturing sites as a star chart. Each site is a midpoint and is displayed as a spine. By default the ends of the spines are connected and they are ordered counterclockwise beginning at the 3 o'clock position.

Sales for the site (the chart statistic) are represented by the length of the spine. Both the sales amount (the formatted statistic value) and the name of the site (the midpoint value) are printed outside of the star chart. You can also label star charts with the percentage of the total statistic value that they represent. The heading above the chart describes the type of statistic (SUM), and names the summary variable (SALES) and the chart variable (SITE).

Star Chart (GR13N13)

[IMAGE]

The program for this chart is Specifying the Sum Statistic in a Star Chart. For more information on producing star charts, see STAR Statement.
