Example 3: Using a Web Driver to Generate a Drill-down Graph

This example shows how to use a SAS/GRAPH Web driver to generate a drill-down graph (see About Drill-down Graphs). The example uses the HTML driver, but the principles would be the same for using the WEBFRAME driver.

Note: The SAS/GRAPH Web drivers do not assign anchor names to the output that they generate. Thus, the Web drivers are best used to generate drill-down graphs that link to GIF files that are stored or referenced in separate files. To link to HTML files that store multiple pieces of output, or to link to both graphics and non-graphics output, it is easier to use ODS to generate drill-down graphs. [cautionend]

To generate a drill-down graph with the HTML or WEBFRAME device driver, all you have to do is specify the IMAGEMAP= option on the graphics procedure that generates the graph and supply the linking information that identifies the location of the target output. SAS/GRAPH produces the GIF files and the image map needed for the drill-down graph and creates the HTML files needed to display the output and implement the drill-down capability.

Planning the Web Page

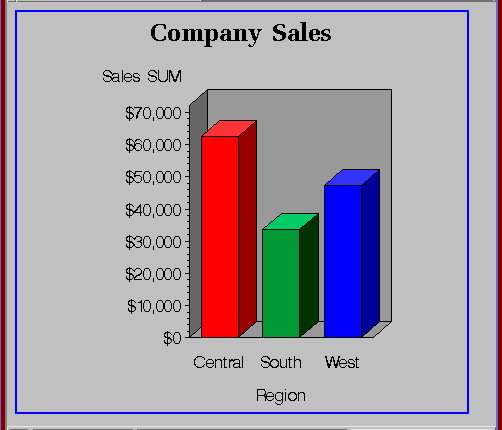

To plan the Web page, you must determine what output you need, which Web driver you will use, and what links you need to implement the drill-down capability. This example generates a simple drill-down bar chart showing the regional sales figures for three sales regions.

[IMAGE]

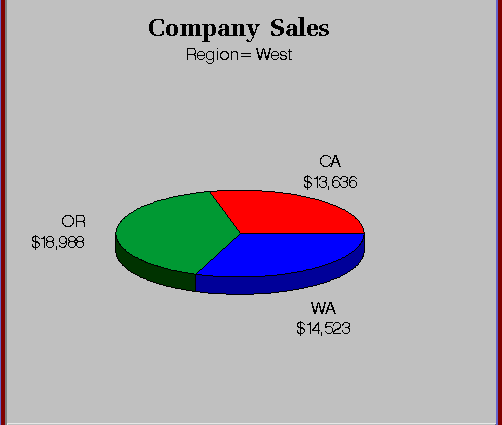

When the bar chart is displayed in a browser, you can select any one of the bars to drill down to a pie chart that shows the sales figures for the corresponding region. For example, you can click on the bar that represents sales for the Western region to drill down to a pie chart that shows the Western region's sales figures.

[IMAGE]

To create this drill-down graph, you need the following:

output The output requires a 3-D vertical bar chart to show the drill-down chart. The output also requires three pie charts to show the state sales figures for each region.

drivers The drill-down chart is a single bar chart, so the HTML driver is preferable to the WEBFRAME driver, which is designed for linking to multiple graphs. For the pie charts, the GIF driver can generate the required GIF files.
For naming the GIF files, you can let SAS/GRAPH assign default names, or you can use the NAME= option to control the names. This example will use the NAME= option to ensure that the GIF files are named salereg1.gif, salereg2.gif, and salereg3.gif.

links Each bar in the bar chart requires a link to the corresponding region's pie chart. Because the example will direct each pie chart to its own GIF file, the links do not need anchor names.
The drill-down capability for this design requires only one drill-down level: from the bar chart to the pie charts. There is no legend and, therefore, there are no links from the legend. Thus, only one HTML variable is required to store link information for the chart. This example will create a variable named LINKS.
Each pie chart will be directed to its own GIF file. Thus, the links do not need anchor names. The example assumes that users will access all output through a file system, so a file specification will suffice for the linking information.

Output Needed for the Drill-down Graph

To generate this example drill-down bar chart, you must run the GCHART procedure with the VBAR3D statement. The PROC GCHART statement must use the IMAGEMAP= option to create an Imagemap data set, and the VBAR3D statement must use the HTML= option to specify the HTML variable that contains the linking information--in this case, the variable LINKS. To generate the pie charts, you can use PROC GCHART to generate all three pie charts in a single procedure run by using BY-group processing (see BY Statement) .

In this example code, note the following:

The graphics options specify the HTML device driver and set the display area to 450x400 pixels. The HTML driver always creates a file named index.html to reference the graphics output. File index.html is the file you must view in the browser.
The DATA step creates the variable LINKS and assigns to it the values needed for the links in the drill-down graph.
The PROC GCHART statement uses the IMAGEMAP= option to create an Imagemap data set named SALEMAP.
The VBAR3D statement uses the HTML= option to specify the variable LINKS, thus associating the linking information with the bar chart.
The presence of both IMAGEMAP= and HTML= causes the HTML device driver to write the image map information to the file index.html, which contains the <IMG> tag that references the bar chart. In the image map, the linking information is derived from the values of the variable LINKS.
Because the HTML driver writes over the contents of file index.html each time a graphics procedure is run, the example switches to the GIF driver to generate new files for the pie charts.
For the pie charts, the example specifies a second GCHART procedure, which does not use the IMAGEMAP= option. This second GCHART uses the PIE3D statement and uses BY-group processing to generate a separate pie chart for each region in the data. On the PIE3D statement, the NAME= option specifies the name SALEREG1 for the first pie chart. SAS/GRAPH automatically increments that name for the next two pie charts, which are assigned the names SALEREG2 and SALEREG3.

Code for the Example

/* This is the only line you have to change to run the */
/* program. Specify a location in your file system. */
filename webout 'path-to-Web-server';

/* set general graphic options */
goptions reset=global gunit=pct
         htitle=6 htext=4
         ftitle=zapfb ftext=swiss border;

/* assign graphics options for ODS output */
goptions transparency noborder
  xpixels=450 ypixels=400
  gsfname=webout device=html;

/* create data set REGSALES */
data regsales;
    length Region State $ 8;
    format Sales dollar8.;
    input Region State Sales;
    length links $40; /* the HTML variable */

/* add the HTML variable and assign its values */
if Region='Central' then links='href="salereg1.gif"';
  else if Region='South' then links='href="salereg2.gif"';
  else if Region='West' then links='href="salereg3.gif"';

datalines;
 West    CA  13636
 West    OR  18988
 West    WA  14523
 Central IL  18038
 Central IN  13611
 Central OH  11084
 Central MI  19660
 South   FL  14541
 South   GA  19022
 ;

title1 'Company Sales';
proc gchart data=regsales imagemap=salemap;
 vbar3d region / sumvar=sales
  patternid=midpoint
  html=links name='htmldril';
run;

/* change to GIF driver for pie charts */
goptions dev=gif;

proc sort data=regsales out=regsales;
by region;

/* Create three charts that use the HTML variable */
proc gchart data=regsales;
  pie3d state / sumvar=sales
   noheading name='salereg1';
by region;
run;
quit;
