The GCHART Procedure

Example 12: Grouping and Arranging Pie Charts

Procedure features:

PIE statement options:

	ACROSS=
	CLOCKWISE
	GROUP=
	OTHER=
	PERCENT=OUTSIDE
	SLICE=OUTSIDE

Other features:

PATTERN statement

Data set:

ENPROD

Sample library member:

GR13N12

[IMAGE]

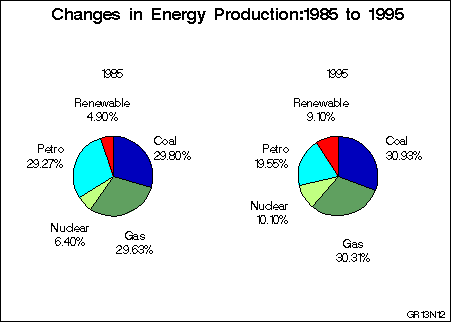

This example produces two pie charts that shows energy sources by year. Both charts are displayed on one page and are arranged two across. The program uses the CLOCKWISE option to arrange the slices, which begin at the 12 o'clock position and proceed clockwise in alphabetic order of the midpoint.

The chart statistic is suppressed and the midpoint label and the percent of the chart statistic are displayed outside of the slice.

A different color is defined for each energy type. The patterns are assigned in order of midpoint value. Some colors do not appear because the slices they represent are grouped into the OTHER slice, which is assigned the eighth color, red.

goptions reset=global gunit=pct border cback=white colors=(black blue green red) ftext=swiss ftext=swissb htitle=5 htext=3.5;

title 'Changes in Energy Production:1985 to 1995'; footnote j=r 'GR13N12 ';

pattern1 color=black; /* biofuels */ pattern2 color=blue; /* coal */ pattern3 color=green; /* gas */ pattern4 color=gray; /* geothermal */ pattern5 color=lipk; /* hydroelectric */ pattern6 color=lime; /* nuclear */ pattern7 color=cyan; /* petro */ pattern8 color=red; /* other */

proc gchart data=reflib.enprod gout=reflib.excat; label year='00'x;

pie engytype / sumvar=produced group=year across=2 other=5 otherlabel='Renewable' clockwise value=none slice=outside percent=outside coutline=black noheading; run; quit;
