The GCONTOUR Procedure

Example 3: Specifying Contour Levels

Procedure features:

PLOT statement options:

	LEVELS=
	LLEVELS=

Sample library member:

GR14N03

[IMAGE]

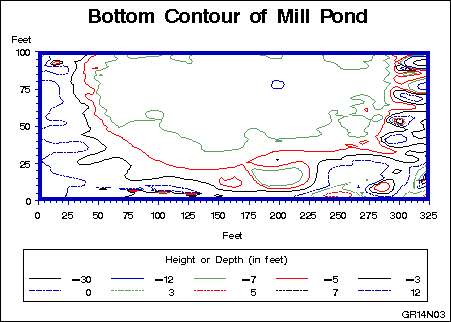

This example generates a contour plot that shows the height or depth of a pond and its surrounding land. In the example, the PLOT statement uses the LEVELS= and LLEVELS= options to specify explicit contour levels and line types for the contour plot. It also uses a LEGEND statement to modify the plot's default legend.

This example uses the G3GRID procedure to interpolate points for grid cells that do not have a needed dimension in the data. Without the G3GRID procedure, there are too many missing values for the point locations, and the GCONTOUR procedure cannot produce a satisfactory contour plot.

libname reflib 'SAS-data-library'; goptions reset=global gunit=pct border cback=white colors=(black blue green red) ftext=swiss ftitle=swissb htitle=6 htext=3;

data reflib.pond; input vdist hdist height; datalines; 10 88 0 18 55 -1 24 22.5 -1.67 ...more data lines... 64 272.5 -6.25 60 277.5 -6.5 62 277.5 -6.5 ;

title 'Bottom Contour of Mill Pond'; footnote j=r 'GR14N03 ';

axis1 order=(0 to 325 by 25) width=3 minor=(n=4) label=('Feet'); axis2 order=(0 to 100 by 25) width=3 minor=(n=4) label=(' Feet');

legend1 frame shape=line(7) label=(position=top j=c 'Height or Depth (in feet)');

proc g3grid data=reflib.pond out=reflib.pondgrid; grid vdist*hdist=height / naxis1=100 naxis2=100; run;

proc gcontour data=reflib.pondgrid; plot vdist*hdist=height /levels= -30 -12 -7 -3 0 3 5 7 12 llevels= 1 1 1 1 1 2 2 2 2 2 legend=legend1 haxis=axis1 vaxis=axis2; run; quit;
