SAS/GRAPH Software: Reference

Color-naming Schemes

RGB (red green blue)
CMYK (cyan magenta yellow black)
HLS (hue lightness saturation)
HSV (hue saturation brightness), also called HSB
gray scale
predefined SAS color names.

For the CMYK color scheme, color specifications must be enclosed in quotation marks. For all other color schemes, the quotes are optional.

You can freely intermix color-naming schemes in your programs; however, depending on your device capabilities, the color that is displayed may not be the color that you expect. See Device Capabilities for information on how to tell if your device supports user-defined colors.

Note: The colors shown in the output in this book may be different from the colors you see on your device. [cautionend]

RGB Color Codes

You can use the RGB color-naming scheme to specify a color in terms of its red, green, and blue components. Color names are of the form CXrrggbb, where

CX indicates that this is an RGB color specification
rr is the color's red component
gg is the color's green component
bb is the color's blue component.

The components are given as hexadecimal numbers in the range 00 through FF. This allows for up to 256 levels of each color component. For example, bright red is specified as CXFF0000, white as CXFFFFFF, black as CX000000, and green as CX00FF00.

Any combination of the color components is valid. Some combinations will match the color produced by predefined SAS color names. Refer to Predefined SAS Colors That Can Be Used in SAS/GRAPH Software for those combinations that match predefined SAS color names.

CMYK Color Codes

To use a printer's Pantone Color Look-Up Table, you can use the CMYK color-naming scheme to specify colors in terms of their cyan, magenta, yellow, and black components. Color names are of the form 'ccmmyykk', where

cc is the color's cyan component
mm is the color's magenta component
yy is the color's yellow component
kk is the color's black component.

The components are given as quoted hexadecimal numbers in the range 00 through FF. This scheme allows for up to 256 levels of each color component. For example, red is specified as '00FFFF00', green as 'FF00FF00', process black (uses cyan, magenta, and yellow ink) as 'FFFFFF00', and pure black (uses only black ink) as '000000FF'. For CMYK color specifications, the quotes are required.

CMYK color specifications should only be used for devices that support four colors. If a CMYK color is used on a three-color device, the color specification will be mapped to a color that the device supports, but the resulting colors may not be appealing. Moreover, different CMYK colors may map to the same device color because a four-color space supports more colors than a three-color space.

HLS Color Codes

You can use the HLS color-naming scheme to specify colors in terms of hue, lightness, and saturation components. SAS/GRAPH software uses an HLS color scheme that is modeled directly after the Tektronix Color Standard, which is shown in Tektronix Color Standard. HLS color names are of the form Hhhhllss, where

H indicates that this is an HLS color specification
hhh is the color's hue component
ll is the color's lightness component
ss is the color's saturation component.

The components are given as hexadecimal numbers. The hue component has the range 000 through FFF. Valid values are 000 through 360 (168 base 16). If the value for the Hue is greater than 360 (168 base 16), the Hue will be calculated by using modular arithmetic with a modulus of 360 (168 base 16). Both the lightness and saturation components are hexadecimal and have the range 00 through FF. Thus, they provide 256 levels for each component. For example, bright blue is specified as H14066FF and light gray as H000BB00. White is defined as Hxxx FF00 and black as Hxxx 0000, where xxx can be any hue. For white and black, the lightness component determines the intensity of the gray level. When the saturation is zero, the color is a shade of gray that is determined by the lightness value.

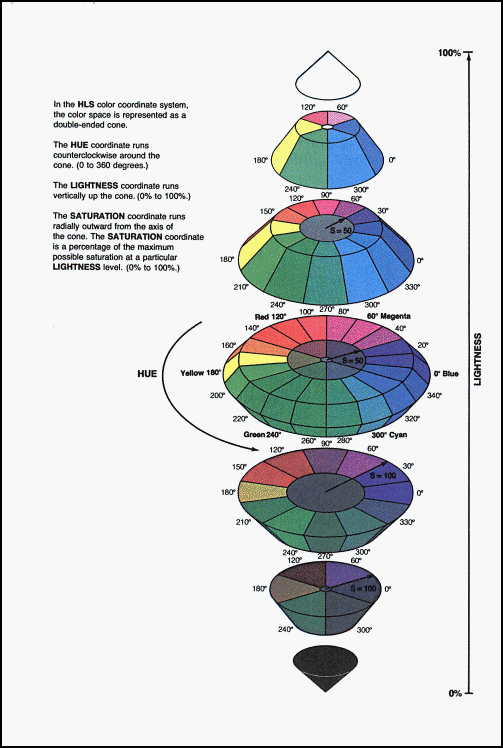

Tektronix Color Standard

[IMAGE]

HSV (or HSB) Color Codes

You can use the HSV color-naming scheme to specify colors in terms of hue, saturation, and value (or brightness) components. HSV color names are of the form Vhhhssvv, where

V indicates that this is an HSV color specification
hhh is the color's hue component
ss is the color's saturation component
vv is the color's value or brightness component.

For example, bright blue is specified as V0C8FFCC, light gray as Vxxx00BB, and White as Vxxx00FF, where xxx can be any hue. For white and black, the value component determines the intensity of gray level. Any combination of the color components is valid.

Gray-Scale Color Codes

You can use gray scales to specify colors in terms of gray components. Gray-scale color names are of the form GRAYll. The value ll is the lightness of the gray and is given as a hexadecimal number in the range 00 through FF. This scheme allows for 256 levels on the gray scale. For example, GRAYFF is white, GRAY00 is black, and GRAY4C is a dark gray.

Predefined SAS Colors

To specify colors in intuitive terms, use the predefined SAS color names, which form a color by combining the abbreviations for prefixes and prefix hues with the abbreviations for the names of several common hues. See Abbreviations for Hues and Prefixes Used in Predefined SAS/GRAPH Color Names.

Abbreviations for Hues and Prefixes Used in Predefined SAS/GRAPH Color Names
Hue Abbreviation Prefix Abbreviation

red R pale PA

pink PK brilliant BI

olive OL light LI

brown BR moderate MO

orange O medium ME

yellow Y strong ST

yellow-green LG dark DA

yellowish green YG deep DE

green G vivid VI

blue B very pale VPA

purple P very light VLI

violet V very dark VDA

gray GR very deep VDE

black BL

white WH

***Abbreviations for Hues and Prefixes Used in Predefined SAS/GRAPH Color Names***
Hue	Abbreviation	Prefix	Abbreviation
red	R	pale	PA
pink	PK	brilliant	BI
olive	OL	light	LI
brown	BR	moderate	MO
orange	O	medium	ME
yellow	Y	strong	ST
yellow-green	LG	dark	DA
yellowish green	YG	deep	DE
green	G	vivid	VI
blue	B	very pale	VPA
purple	P	very light	VLI
violet	V	very dark	VDA
gray	GR	very deep	VDE
black	BL
white	WH

Predefined SAS color names follow the formulas prefix+hue, prefix+hue+hue, or prefix+hue+hue+hue. For example, the common hue red can be denoted by R. The common prefixes grayish and dark can be denoted by GR and DA. To construct the color dark grayish red, combine the prefix DA, the prefix hue GR, and the hue R to form the predefined SAS color DAGRR. The predefined colors are approximations only and may not produce the same results on different devices.

Generally, to describe a predefined SAS color name that uses more than one hue, add the suffix ish to the name of each prefix hue. In the previous example, the color name from the prefix dark and the hues gray and red is described as dark grayish red (DAGRR).

Not all combinations of prefixes and hues are available as predefined SAS color names. You can specify colors that do not have a predefined SAS color name by using the RGB, HLS, HSV, CMYK, or gray-scale color-naming schemes.

Predefined SAS Colors That Can Be Used in SAS/GRAPH Software provides a comprehensive list of the predefined SAS color names that you can use. The table lists the predefined SAS color name followed by the description and the equivalent RGB and HLS values.

Note: Hardware characteristics may cause some colors with different color definitions to appear the same. Also, the same predefined color is likely to appear different on different devices and may not appear correct on some devices. [cautionend]

Predefined SAS Colors That Can Be Used in SAS/GRAPH Software
Color Name Color Description RGB HLS

Basic Hues

BLACK | BL black CX000000 H0000000

BLUE | B blue CX0000FF H00080FF

BROWN | BR brown CXA05000 H09650FF

CHARCOAL charcoal CX4F4F4F H0784F00

CREAM cream CXE8D898 H0A8C0A2

CYAN cyan CX00FFFF H12C80FF

GOLD gold CXFFAA00 H0A080FF

GRAY | GREY | GR | A gray CX808080 H0008000

GREEN | G green CX00FF00 H0F080FF

LILAC lilac CXE06090 H062A0AC

LIME lime CXC0FF81 H0D2C0FF

MAGENTA magenta CXFF00FF H03C80FF

MAROON maroon CX700000 H07838FF

OLIVE olive CX2A8307 H0DF45E6

ORANGE | O orange CXFF8000 H09680FF

PINK pink CXFF0080 H05980FF

PURPLE | P purple CX703070 H03C5066

RED | R red CXFF0000 H07880FF

ROSE rose CXFF6060 H078B0FF

SALMON salmon CXFF0055 H06480FF

STEEL steel CX3883A8 H1407080

TAN tan CXE0A860 H09AA0AC

VIOLET violet CXB090D0 H01EB067

WHITE | WH | W white CXFFFFFF H000FF00

YELLOW | Y yellow CXFFFF00 H0B480FF

Blacks

RBK reddish black CX191919 H06D1904

BRBL brownish black CX010101 H0980101

GBL greenish black CX191919 H0F81900

OLBL olive black CX191919 H0CB1900

PBL purplish black CX191919 H0341901

BBL bluish black CX191919 H0011901

Blues

VIGB vivid greenish blue CX13478C H14E4FC3

BIGB brilliant greenish blue CX4D7EBF H14E8679

STGB strong greenish blue CX2E4C73 H14E506D

DEGB deep greenish blue CX142233 H14E246D

LIGB light greenish blue CX6E86A6 H14E8A3C

VLIGB very light greenish blue CX90B0D9 H14EB57C

MOGB moderate greenish blue CX4C5D73 H14E6033

DAGB dark greenish blue CX2A3440 H14E3533

VDAGB very dark greenish blue CX121519 H14E162D

VIB vivid blue CX090766 H00136DF

BIB brilliant blue CX3230B2 H0017194

STB strong blue CX201F73 H0014994

DEB deep blue CX100F26 H0011B6D

PAB pale blue CX8585A6 H0019528

VPAB very pale blue CXAEADD9 H001C35C

GRB grayish blue CX5C5C73 H001671C

DAGRB dark grayish blue CX373740 H0013B12

VIPB vivid purplish blue CX2B0766 H01736DF

BIPB brilliant purplish blue CX6130B2 H0177194

STPB strong purplish blue CX3F1F73 H0174994

DEPB deep purplish blue CX180F26 H0171B6D

VLIPB very light purplish blue CXA37AE5 H017B0AD

LIPB light purplish blue CX6D5299 H017754E

MOPB moderate purplish blue CX3F3059 H017444E

DAPB dark purplish blue CX151219 H017162D

LIB light blue CX5A58A6 H0017F4E

VLIB very light blue CX7674D9 H001A691

MOB moderate blue CX3E3D73 H001584E

DAB dark blue CX1B1B26 H001212D

PAPB pale purplish blue CX8A7AA6 H0179033

VPAPB very pale purplish blue CXC0A8E5 H017C78B

GRPB grayish purplish blue CX4A4159 H0174D27

BLB blackish blue CX171719 H001180D

Browns

LIBR light brown CX8C7962 H098772D

MOBR moderate brown CX594E41 H0984D27

DABR dark brown CX191714 H098171C

LIGRBR light grayish brown CX8C887A H0A58313

GRBR grayish brown CX59564D H0A55312

DAGRBR dark grayish brown CX33322E H0A5300D

STYBR strong yellowish brown CX806A2B H0A5557F

DEYBR deep yellowish brown CX332E14 H0AA246D

LIYBR light yellowish brown CXA69F7A H0AA9033

MOYBR moderate yellowish brown CX736E58 H0AA6522

DAYBR dark yellowish brown CX26251F H0AA221C

LIGRYBR light grayish yellowish brown CXA6A18A H0AA9822

GRYBR grayish yellowish brown CX737060 H0AA6917

DAGRYBR dark grayish yellowish brown CX403E37 H0AA3B12

LIOLBR light olive brown CX8B8C4B H0B56C4E

MOOLBR moderate olive brown CX595936 H0B54740

DAOLBR dark olive brown CX26261C H0B52127

STBR strong brown CX593B18 H0983994

STRBR strong reddish brown CX4C2714 H08C3094

DERBR deep reddish brown CX26150D H08C1980

LIRBR light reddish brown CX8C7367 H08C7A27

MORBR moderate reddish brown CX59453B H08C4A33

DARBR dark reddish brown CX191614 H08C171C

LIGRRBR light grayish reddish brown CX8C7D75 H08C8118

GRRBR grayish reddish brown CX594F4A H08C5217

DAGRRBR dark grayish reddish brown CX332E2C H08C3012

DEBR deep brown CX261C0F H0981B6D

Grays

LIBRGR light brownish gray CX8C8883 H098880A

BRGR brownish gray CX595753 H0985609

PKGR pinkish gray CXBFB2B5 H06DB917

RGR reddish gray CX8C8385 H06D880A

DARGR dark reddish gray CX595354 H06D5609

YGR yellowish gray CXBBBFAC H0C2B621

LIGGR light greenish gray CXBFBFBF H0F8BF01

GGR greenish gray CX8C8C8C H0F88C01

DAGGR dark greenish gray CX595959 H0F85900

LIOLGR light olive gray CX878C7E H0CB850F

LIPGR light purplish gray CXBDB2BF H034B917

PGR purplish gray CX8B838C H034880A

DAPGR dark purplish gray CX585359 H0345609

LIGR light gray CXBFBFBF H000BF00

MEGR medium gray CX8C8C8C H0008C00

DAGR dark gray CX595959 H0005900

LTGRAY light gray CXC0C0C0 H000C000

DAGRAY dark gray CX404040 H0004000

LIBGR light bluish gray CXB3B2BF H001B917

BGR bluish gray CX83838C H001880A

OLGR olive gray CX575953 H0CB5609

DABGR dark bluish gray CX535359 H0015609

VIBG vivid bluish green CX138C89 H12A4FC3

BIBG brilliant bluish green CX4DBFBC H12A8679

STBG strong bluish green CX2E7371 H12A506D

DEBG deep bluish green CX143332 H12A246D

LIBG light bluish green CX6EA6A4 H12A8A3C

VLIBG very light bluish green CX90D9D7 H12AB57C

MOBG moderate bluish green CX4C7372 H12A6033

DABG dark bluish green CX2D403F H12A362D

VDABG very dark bluish green CX121919 H12A162D

VILG vivid yellow-green CX44A616 H0DD5EC3

BILG brilliant yellow-green CX88E55C H0DDA1BA

STLG strong yellow-green CX5B993D H0DD6B6D

DELG deep yellow-green CX3C6629 H0DD476D

LILG light yellow-green CXB1E599 H0DDBF99

MOLG moderate yellow-green CX769966 H0DD7F33

PALG pale yellow-green CXD1E5C7 H0DDD660

GRLG grayish yellow-green CX8B9985 H0DD8F17

STOLG strong olive green CX264C14 H0DD3094

DEOLG deep olive green CX15260D H0DD1980

MOOLG moderate olive green CX45593B H0DD4A33

DAOLG dark olive green CX1F261C H0DD2127

GROLG grayish olive green CX8B9985 H0DD8F17

DAGROLG dark grayish olive green CX2E332C H0DD3012

VIYG vivid yellowish green CX16A629 H0F85EC3

BIYG brilliant yellowish green CX52CC62 H0F88F8B

STYG strong yellowish green CX388C4C H0F8626D

DEYG deep yellowish green CX185920 H0F83994

VDEYG very deep yellowish green CX0A260E H0F81894

VLIYG very light yellowish green CX9EEDA8 H0F8C6B0

LIYG light yellowish green CX80BF88 H0F89F55

MOYG moderate yellowish green CX5D8C64 H0F87533

DAYG dark yellowish green CX3B593F H0F84A33

VDAYG very dark yellowish green CX172118 H0F81C2D

VIG vivid green CX118044 H10C48C3

BIG brilliant green CX4DBF81 H10C8679

STG strong green CX2E734E H10C506D

DEG deep green CX143322 H10C246D

LIG light green CX6EA688 H10C8A3C

VLIG very light green CX99E5BC H10CBF99

MOG moderate green CX4C735E H10C6033

DAG dark green CX364C40 H10C412D

VDAG very dark green CX121915 H10C162D

PAG pale green CX90A69A H10C9B1C

VPAG very pale green CXBCD9C5 H103CA46

GRG grayish green CX63736A H10C6B12

DAGRG dark grayish green CX454C48 H10C490D

BLG blackish green CX171918 H10C180D

Olives

LIOL light olive CX628033 H0CB596D

MOOL moderate olive CX47592A H0CB415D

DAOL dark olive CX161911 H0CB1533

LIGROL light grayish olive CX838C75 H0CB8118

GROL grayish olive CX54594A H0CB5217

DAGROL dark grayish olive CX30332C H0CB3012

Oranges

VIRO vivid reddish orange CX803009 H08C44DF

STRO strong reddish orange CX8C411C H08C54AA

DERO deep reddish orange CX662F14 H08C3DAA

MORO moderate reddish orange CX8C5438 H08C626D

DARO dark reddish orange CX663D29 H08C476D

GRRO grayish reddish orange CX8C6754 H08C7040

VIO vivid orange CXB26306 H0985CEF

BIO brilliant orange CXD9892B H0988281

STO strong orange CXA66921 H09863AA

DEO deep orange CX80511A H0984DAA

LIO light orange CXD9A465 H0989F99

MOO moderate orange CXA67D4D H0987A5D

BRO brownish orange CX80603C H0985E5D

Pinks

VIPK vivid pink CXCC1B2B H06D74C3

STPK strong pink CXD9576E H06D98A1

DEPK deep pink CX99293D H06D6194

LIPK light pink CXE599A7 H06DBF99

MOPK moderate pink CXBA7C87 H06D9B4F

DAPK dark pink CX995C67 H06D7A40

GRPK grayish pink CXBA9BA1 H06DAB2F

PAPK pale pink CXE5BFC6 H06DD26D

VIYPK vivid yellowish pink CXCC2B1B H07D74C3

STYPK strong yellowish pinf CXCC5D52 H07D8F8B

DEYPK deep yellowish pink CX993329 H0706194

LIYPK light yellowish pink CXE5A099 H07DBF99

MOYPK moderate yellowish pink CXBF8580 H07D9F55

DAYPK dark yellowish pink CX99615C H07D7A40

PAYPK pale yellowish pink CXE5C5C2 H07DD468

GRYPK grayish yellowish pink CXBFA5A2 H07DB130

BRPK brownish pink CXBFB9A6 H0A5B22A

STPPK strong purplish pink CXB2309E H0467194

DEPPK deep purplish pink CX991F85 H0465CAA

LIPPK light purplish pink CXD974C9 H046A691

MOPPK moderate purplish pink CXB25FA5 H046895A

DAPPK dark purplish pink CX995278 H058754E

PAPPK pale purplish pink CXE5B8D0 H058CF79

GRPPK grayish purplish pink CXB28FA2 H058A130

BIPPK brilliant purplish pink CXD93ABF H04689AC

Purples

VIP vivid purple CX6F0980 H0347194

BIP brilliant purple CXA030B2 H0347194

STP strong purple CX671F73 H0344994

DEP deep purple CX3E1745 H0342E80

VDEP very deep purple CX170819 H034117F

LIP light purple CX9B58A6 H0347F4E

VLIP very light purple CXCB74D9 H034A691

MOP moderate purple CX6B3D73 H034584E

DAP dark purple CX423045 H0343B2D

VDAP very dark purple CX181219 H034162D

PAP pale purple CXA185A6 H0349528

VPAP very pale purple CXD3ADD9 H034C35C

GRP grayish purple CX705C73 H034671C

DAGRP dark grayish purple CX443C45 H0344012

BLP blackish purple CX191719 H034180D

VIRP vivid reddish purple CX59064C H04630DF

STRP strong reddish purple CX731F65 H0464994

DERP deep reddish purple CX45173E H0462E80

VDERP very deep reddish purple CX190817 H046117F

LIRP light reddish purple CX99528E H046754E

MORP moderate reddish purple CX733D6A H046584E

DARP dark reddish purple CX453042 H0463B2D

VDARP very dark reddish purple CX191218 H046162D

GRRP grayish reddish purple CX73546E H0466327

PARP pale reddish purple CX997092 H046852A

Reds

VIR vivid red CX33070F H06D1DC3

STR strong red CX731727 H06D45AA

DER deep red CX4C1923 H06D3380

VDER very deep red CX190A0D H06D126D

MOR moderate red CX732E3A H06D506D

DAR dark red CX40262B H06D3340

VDAR very dark red CX191213 H06D162D

LIGRR light grayish red CX997078 H06D852A

GRR grayish red CX73545A H06D6327

LIGRPR light grayish purplish red CX997086 H058852A

DAGRR dark grayish red CX453C3D H06D4012

BLR blackish red CX191717 H06D180D

VIPR vivid purplish red CX4C052C H05829DF

STPR strong purplish red CX731749 H05745AA

DEPR deep purplish red CX45122E H0582C94

VDEPR very deep purplish red CX190A12 H058126D

MOPR moderate purplish red CX732E53 H058506D

DAPR dark purplish red CX452938 H0583740

GRPR grayish purplish red CX734C61 H0586033

VDAPR very dark purplish red CX191216 H058162D

Violets

VIV vivid violet CX53098C H0244BDF

BIV brilliant violet CX7930B2 H0227194

STV strong violet CX3C1859 H0223994

DEV deep violet CX1B0D26 H0221980

LIV light violet CX7A5299 H022754E

VLIV very light violet CXAC74D9 H022A691

MOV moderate violet CX473059 H022444E

DAV dark violet CX161219 H022162D

PAV pale violet CX877099 H022852A

VPAV very pale violet CXCBA8E5 H022C78B

GRV grayish violet CX4F4159 H0224D27

Whites

YWH yellowish white CXE8EDD5 H0C2E166

GWH greenish white CXECEDEC H0F8ED06

PKWH pinkish white CXEDDDE0 H06DE54E

PWH purplish white CXEBDDED H034E54E

BWH bluish white CXDEDDED H001E54E

Yellows

VIOY vivid orange-yellow CXBF9106 H0A563EF

BIOY brilliant orange-yellow CXE5B82E H0A58AC8

STOY strong orange-yellow CXBF9926 H0A573AA

DEOY deep orange-yellow CX997A1F H0A55CAA

LIOY light orange-yellow CXE5C76B H0A5A8B4

MOOY moderate orange-yellow CXBAA157 H0A5896B

DAOY dark orange-yellow CX998547 H0A5705D

PAOY pale orange-yellow CXE5D4A1 H0A5C392

DAY dark yellow CX99BF1A H0C26CC3

PAY pale yellow CXC6E55C H0C2A1BA

GRY grayish yellow CXA3BF46 H0C2837C

DAGRY dark grayish yellow CX839938 H0C26976

VIGY vivid greenish yellow CXCDE57A H0C2B0AD

BIGY brilliant greenish yellow CXABBF66 H0C29369

STGY strong greenish yellow CX899952 H0C2754E

DEGY deep greenish yellow CXD9E5B0 H0C2CB83

VIY vivid yellow CXB5BF93 H0C2A942

BIY brilliant yellow CX8E996B H0C2822F

STY strong yellow CX80BF1A H0CB6CC3

DEY deep yellow CXAEE554 H0CB9DB0

LIY light yellow CX8DBA44 H0CB7F76

MOY moderate yellow CX749938 H0CB6976

LIGY light greenish yellow CXBDE57A H0CBB0AD

MOGY moderate greenish yellow CX9DBF66 H0CB9396

DAGY dark greenish yellow CX7E9952 H0CB754E

GRGY grayish greenish yellow CXA9BF86 H0CBA34F

PAGY pale greenish yellow CXCBE5A1 H0CBC392

***Predefined SAS Colors That Can Be Used in SAS/GRAPH Software***
Color Name	Color Description	RGB	HLS
	Basic Hues
BLACK \| BL	black	CX000000	H0000000
BLUE \| B	blue	CX0000FF	H00080FF
BROWN \| BR	brown	CXA05000	H09650FF
CHARCOAL	charcoal	CX4F4F4F	H0784F00
CREAM	cream	CXE8D898	H0A8C0A2
CYAN	cyan	CX00FFFF	H12C80FF
GOLD	gold	CXFFAA00	H0A080FF
GRAY \| GREY \| GR \| A	gray	CX808080	H0008000
GREEN \| G	green	CX00FF00	H0F080FF
LILAC	lilac	CXE06090	H062A0AC
LIME	lime	CXC0FF81	H0D2C0FF
MAGENTA	magenta	CXFF00FF	H03C80FF
MAROON	maroon	CX700000	H07838FF
OLIVE	olive	CX2A8307	H0DF45E6
ORANGE \| O	orange	CXFF8000	H09680FF
PINK	pink	CXFF0080	H05980FF
PURPLE \| P	purple	CX703070	H03C5066
RED \| R	red	CXFF0000	H07880FF
ROSE	rose	CXFF6060	H078B0FF
SALMON	salmon	CXFF0055	H06480FF
STEEL	steel	CX3883A8	H1407080
TAN	tan	CXE0A860	H09AA0AC
VIOLET	violet	CXB090D0	H01EB067
WHITE \| WH \| W	white	CXFFFFFF	H000FF00
YELLOW \| Y	yellow	CXFFFF00	H0B480FF
	Blacks
RBK	reddish black	CX191919	H06D1904
BRBL	brownish black	CX010101	H0980101
GBL	greenish black	CX191919	H0F81900
OLBL	olive black	CX191919	H0CB1900
PBL	purplish black	CX191919	H0341901
BBL	bluish black	CX191919	H0011901
	Blues
VIGB	vivid greenish blue	CX13478C	H14E4FC3
BIGB	brilliant greenish blue	CX4D7EBF	H14E8679
STGB	strong greenish blue	CX2E4C73	H14E506D
DEGB	deep greenish blue	CX142233	H14E246D
LIGB	light greenish blue	CX6E86A6	H14E8A3C
VLIGB	very light greenish blue	CX90B0D9	H14EB57C
MOGB	moderate greenish blue	CX4C5D73	H14E6033
DAGB	dark greenish blue	CX2A3440	H14E3533
VDAGB	very dark greenish blue	CX121519	H14E162D
VIB	vivid blue	CX090766	H00136DF
BIB	brilliant blue	CX3230B2	H0017194
STB	strong blue	CX201F73	H0014994
DEB	deep blue	CX100F26	H0011B6D
PAB	pale blue	CX8585A6	H0019528
VPAB	very pale blue	CXAEADD9	H001C35C
GRB	grayish blue	CX5C5C73	H001671C
DAGRB	dark grayish blue	CX373740	H0013B12
VIPB	vivid purplish blue	CX2B0766	H01736DF
BIPB	brilliant purplish blue	CX6130B2	H0177194
STPB	strong purplish blue	CX3F1F73	H0174994
DEPB	deep purplish blue	CX180F26	H0171B6D
VLIPB	very light purplish blue	CXA37AE5	H017B0AD
LIPB	light purplish blue	CX6D5299	H017754E
MOPB	moderate purplish blue	CX3F3059	H017444E
DAPB	dark purplish blue	CX151219	H017162D
LIB	light blue	CX5A58A6	H0017F4E
VLIB	very light blue	CX7674D9	H001A691
MOB	moderate blue	CX3E3D73	H001584E
DAB	dark blue	CX1B1B26	H001212D
PAPB	pale purplish blue	CX8A7AA6	H0179033
VPAPB	very pale purplish blue	CXC0A8E5	H017C78B
GRPB	grayish purplish blue	CX4A4159	H0174D27
BLB	blackish blue	CX171719	H001180D
	Browns
LIBR	light brown	CX8C7962	H098772D
MOBR	moderate brown	CX594E41	H0984D27
DABR	dark brown	CX191714	H098171C
LIGRBR	light grayish brown	CX8C887A	H0A58313
GRBR	grayish brown	CX59564D	H0A55312
DAGRBR	dark grayish brown	CX33322E	H0A5300D
STYBR	strong yellowish brown	CX806A2B	H0A5557F
DEYBR	deep yellowish brown	CX332E14	H0AA246D
LIYBR	light yellowish brown	CXA69F7A	H0AA9033
MOYBR	moderate yellowish brown	CX736E58	H0AA6522
DAYBR	dark yellowish brown	CX26251F	H0AA221C
LIGRYBR	light grayish yellowish brown	CXA6A18A	H0AA9822
GRYBR	grayish yellowish brown	CX737060	H0AA6917
DAGRYBR	dark grayish yellowish brown	CX403E37	H0AA3B12
LIOLBR	light olive brown	CX8B8C4B	H0B56C4E
MOOLBR	moderate olive brown	CX595936	H0B54740
DAOLBR	dark olive brown	CX26261C	H0B52127
STBR	strong brown	CX593B18	H0983994
STRBR	strong reddish brown	CX4C2714	H08C3094
DERBR	deep reddish brown	CX26150D	H08C1980
LIRBR	light reddish brown	CX8C7367	H08C7A27
MORBR	moderate reddish brown	CX59453B	H08C4A33
DARBR	dark reddish brown	CX191614	H08C171C
LIGRRBR	light grayish reddish brown	CX8C7D75	H08C8118
GRRBR	grayish reddish brown	CX594F4A	H08C5217
DAGRRBR	dark grayish reddish brown	CX332E2C	H08C3012
DEBR	deep brown	CX261C0F	H0981B6D
	Grays
LIBRGR	light brownish gray	CX8C8883	H098880A
BRGR	brownish gray	CX595753	H0985609
PKGR	pinkish gray	CXBFB2B5	H06DB917
RGR	reddish gray	CX8C8385	H06D880A
DARGR	dark reddish gray	CX595354	H06D5609
YGR	yellowish gray	CXBBBFAC	H0C2B621
LIGGR	light greenish gray	CXBFBFBF	H0F8BF01
GGR	greenish gray	CX8C8C8C	H0F88C01
DAGGR	dark greenish gray	CX595959	H0F85900
LIOLGR	light olive gray	CX878C7E	H0CB850F
LIPGR	light purplish gray	CXBDB2BF	H034B917
PGR	purplish gray	CX8B838C	H034880A
DAPGR	dark purplish gray	CX585359	H0345609
LIGR	light gray	CXBFBFBF	H000BF00
MEGR	medium gray	CX8C8C8C	H0008C00
DAGR	dark gray	CX595959	H0005900
LTGRAY	light gray	CXC0C0C0	H000C000
DAGRAY	dark gray	CX404040	H0004000
LIBGR	light bluish gray	CXB3B2BF	H001B917
BGR	bluish gray	CX83838C	H001880A
OLGR	olive gray	CX575953	H0CB5609
DABGR	dark bluish gray	CX535359	H0015609
VIBG	vivid bluish green	CX138C89	H12A4FC3
BIBG	brilliant bluish green	CX4DBFBC	H12A8679
STBG	strong bluish green	CX2E7371	H12A506D
DEBG	deep bluish green	CX143332	H12A246D
LIBG	light bluish green	CX6EA6A4	H12A8A3C
VLIBG	very light bluish green	CX90D9D7	H12AB57C
MOBG	moderate bluish green	CX4C7372	H12A6033
DABG	dark bluish green	CX2D403F	H12A362D
VDABG	very dark bluish green	CX121919	H12A162D
VILG	vivid yellow-green	CX44A616	H0DD5EC3
BILG	brilliant yellow-green	CX88E55C	H0DDA1BA
STLG	strong yellow-green	CX5B993D	H0DD6B6D
DELG	deep yellow-green	CX3C6629	H0DD476D
LILG	light yellow-green	CXB1E599	H0DDBF99
MOLG	moderate yellow-green	CX769966	H0DD7F33
PALG	pale yellow-green	CXD1E5C7	H0DDD660
GRLG	grayish yellow-green	CX8B9985	H0DD8F17
STOLG	strong olive green	CX264C14	H0DD3094
DEOLG	deep olive green	CX15260D	H0DD1980
MOOLG	moderate olive green	CX45593B	H0DD4A33
DAOLG	dark olive green	CX1F261C	H0DD2127
GROLG	grayish olive green	CX8B9985	H0DD8F17
DAGROLG	dark grayish olive green	CX2E332C	H0DD3012
VIYG	vivid yellowish green	CX16A629	H0F85EC3
BIYG	brilliant yellowish green	CX52CC62	H0F88F8B
STYG	strong yellowish green	CX388C4C	H0F8626D
DEYG	deep yellowish green	CX185920	H0F83994
VDEYG	very deep yellowish green	CX0A260E	H0F81894
VLIYG	very light yellowish green	CX9EEDA8	H0F8C6B0
LIYG	light yellowish green	CX80BF88	H0F89F55
MOYG	moderate yellowish green	CX5D8C64	H0F87533
DAYG	dark yellowish green	CX3B593F	H0F84A33
VDAYG	very dark yellowish green	CX172118	H0F81C2D
VIG	vivid green	CX118044	H10C48C3
BIG	brilliant green	CX4DBF81	H10C8679
STG	strong green	CX2E734E	H10C506D
DEG	deep green	CX143322	H10C246D
LIG	light green	CX6EA688	H10C8A3C
VLIG	very light green	CX99E5BC	H10CBF99
MOG	moderate green	CX4C735E	H10C6033
DAG	dark green	CX364C40	H10C412D
VDAG	very dark green	CX121915	H10C162D
PAG	pale green	CX90A69A	H10C9B1C
VPAG	very pale green	CXBCD9C5	H103CA46
GRG	grayish green	CX63736A	H10C6B12
DAGRG	dark grayish green	CX454C48	H10C490D
BLG	blackish green	CX171918	H10C180D
	Olives
LIOL	light olive	CX628033	H0CB596D
MOOL	moderate olive	CX47592A	H0CB415D
DAOL	dark olive	CX161911	H0CB1533
LIGROL	light grayish olive	CX838C75	H0CB8118
GROL	grayish olive	CX54594A	H0CB5217
DAGROL	dark grayish olive	CX30332C	H0CB3012
	Oranges
VIRO	vivid reddish orange	CX803009	H08C44DF
STRO	strong reddish orange	CX8C411C	H08C54AA
DERO	deep reddish orange	CX662F14	H08C3DAA
MORO	moderate reddish orange	CX8C5438	H08C626D
DARO	dark reddish orange	CX663D29	H08C476D
GRRO	grayish reddish orange	CX8C6754	H08C7040
VIO	vivid orange	CXB26306	H0985CEF
BIO	brilliant orange	CXD9892B	H0988281
STO	strong orange	CXA66921	H09863AA
DEO	deep orange	CX80511A	H0984DAA
LIO	light orange	CXD9A465	H0989F99
MOO	moderate orange	CXA67D4D	H0987A5D
BRO	brownish orange	CX80603C	H0985E5D
	Pinks
VIPK	vivid pink	CXCC1B2B	H06D74C3
STPK	strong pink	CXD9576E	H06D98A1
DEPK	deep pink	CX99293D	H06D6194
LIPK	light pink	CXE599A7	H06DBF99
MOPK	moderate pink	CXBA7C87	H06D9B4F
DAPK	dark pink	CX995C67	H06D7A40
GRPK	grayish pink	CXBA9BA1	H06DAB2F
PAPK	pale pink	CXE5BFC6	H06DD26D
VIYPK	vivid yellowish pink	CXCC2B1B	H07D74C3
STYPK	strong yellowish pinf	CXCC5D52	H07D8F8B
DEYPK	deep yellowish pink	CX993329	H0706194
LIYPK	light yellowish pink	CXE5A099	H07DBF99
MOYPK	moderate yellowish pink	CXBF8580	H07D9F55
DAYPK	dark yellowish pink	CX99615C	H07D7A40
PAYPK	pale yellowish pink	CXE5C5C2	H07DD468
GRYPK	grayish yellowish pink	CXBFA5A2	H07DB130
BRPK	brownish pink	CXBFB9A6	H0A5B22A
STPPK	strong purplish pink	CXB2309E	H0467194
DEPPK	deep purplish pink	CX991F85	H0465CAA
LIPPK	light purplish pink	CXD974C9	H046A691
MOPPK	moderate purplish pink	CXB25FA5	H046895A
DAPPK	dark purplish pink	CX995278	H058754E
PAPPK	pale purplish pink	CXE5B8D0	H058CF79
GRPPK	grayish purplish pink	CXB28FA2	H058A130
BIPPK	brilliant purplish pink	CXD93ABF	H04689AC
	Purples
VIP	vivid purple	CX6F0980	H0347194
BIP	brilliant purple	CXA030B2	H0347194
STP	strong purple	CX671F73	H0344994
DEP	deep purple	CX3E1745	H0342E80
VDEP	very deep purple	CX170819	H034117F
LIP	light purple	CX9B58A6	H0347F4E
VLIP	very light purple	CXCB74D9	H034A691
MOP	moderate purple	CX6B3D73	H034584E
DAP	dark purple	CX423045	H0343B2D
VDAP	very dark purple	CX181219	H034162D
PAP	pale purple	CXA185A6	H0349528
VPAP	very pale purple	CXD3ADD9	H034C35C
GRP	grayish purple	CX705C73	H034671C
DAGRP	dark grayish purple	CX443C45	H0344012
BLP	blackish purple	CX191719	H034180D
VIRP	vivid reddish purple	CX59064C	H04630DF
STRP	strong reddish purple	CX731F65	H0464994
DERP	deep reddish purple	CX45173E	H0462E80
VDERP	very deep reddish purple	CX190817	H046117F
LIRP	light reddish purple	CX99528E	H046754E
MORP	moderate reddish purple	CX733D6A	H046584E
DARP	dark reddish purple	CX453042	H0463B2D
VDARP	very dark reddish purple	CX191218	H046162D
GRRP	grayish reddish purple	CX73546E	H0466327
PARP	pale reddish purple	CX997092	H046852A
	Reds
VIR	vivid red	CX33070F	H06D1DC3
STR	strong red	CX731727	H06D45AA
DER	deep red	CX4C1923	H06D3380
VDER	very deep red	CX190A0D	H06D126D
MOR	moderate red	CX732E3A	H06D506D
DAR	dark red	CX40262B	H06D3340
VDAR	very dark red	CX191213	H06D162D
LIGRR	light grayish red	CX997078	H06D852A
GRR	grayish red	CX73545A	H06D6327
LIGRPR	light grayish purplish red	CX997086	H058852A
DAGRR	dark grayish red	CX453C3D	H06D4012
BLR	blackish red	CX191717	H06D180D
VIPR	vivid purplish red	CX4C052C	H05829DF
STPR	strong purplish red	CX731749	H05745AA
DEPR	deep purplish red	CX45122E	H0582C94
VDEPR	very deep purplish red	CX190A12	H058126D
MOPR	moderate purplish red	CX732E53	H058506D
DAPR	dark purplish red	CX452938	H0583740
GRPR	grayish purplish red	CX734C61	H0586033
VDAPR	very dark purplish red	CX191216	H058162D
	Violets
VIV	vivid violet	CX53098C	H0244BDF
BIV	brilliant violet	CX7930B2	H0227194
STV	strong violet	CX3C1859	H0223994
DEV	deep violet	CX1B0D26	H0221980
LIV	light violet	CX7A5299	H022754E
VLIV	very light violet	CXAC74D9	H022A691
MOV	moderate violet	CX473059	H022444E
DAV	dark violet	CX161219	H022162D
PAV	pale violet	CX877099	H022852A
VPAV	very pale violet	CXCBA8E5	H022C78B
GRV	grayish violet	CX4F4159	H0224D27
	Whites
YWH	yellowish white	CXE8EDD5	H0C2E166
GWH	greenish white	CXECEDEC	H0F8ED06
PKWH	pinkish white	CXEDDDE0	H06DE54E
PWH	purplish white	CXEBDDED	H034E54E
BWH	bluish white	CXDEDDED	H001E54E
	Yellows
VIOY	vivid orange-yellow	CXBF9106	H0A563EF
BIOY	brilliant orange-yellow	CXE5B82E	H0A58AC8
STOY	strong orange-yellow	CXBF9926	H0A573AA
DEOY	deep orange-yellow	CX997A1F	H0A55CAA
LIOY	light orange-yellow	CXE5C76B	H0A5A8B4
MOOY	moderate orange-yellow	CXBAA157	H0A5896B
DAOY	dark orange-yellow	CX998547	H0A5705D
PAOY	pale orange-yellow	CXE5D4A1	H0A5C392
DAY	dark yellow	CX99BF1A	H0C26CC3
PAY	pale yellow	CXC6E55C	H0C2A1BA
GRY	grayish yellow	CXA3BF46	H0C2837C
DAGRY	dark grayish yellow	CX839938	H0C26976
VIGY	vivid greenish yellow	CXCDE57A	H0C2B0AD
BIGY	brilliant greenish yellow	CXABBF66	H0C29369
STGY	strong greenish yellow	CX899952	H0C2754E
DEGY	deep greenish yellow	CXD9E5B0	H0C2CB83
VIY	vivid yellow	CXB5BF93	H0C2A942
BIY	brilliant yellow	CX8E996B	H0C2822F
STY	strong yellow	CX80BF1A	H0CB6CC3
DEY	deep yellow	CXAEE554	H0CB9DB0
LIY	light yellow	CX8DBA44	H0CB7F76
MOY	moderate yellow	CX749938	H0CB6976
LIGY	light greenish yellow	CXBDE57A	H0CBB0AD
MOGY	moderate greenish yellow	CX9DBF66	H0CB9396
DAGY	dark greenish yellow	CX7E9952	H0CB754E
GRGY	grayish greenish yellow	CXA9BF86	H0CBA34F
PAGY	pale greenish yellow	CXCBE5A1	H0CBC392

Chapter Contents
Previous
Next
Top of Page
