The GREPLAY Procedure

Using the GREPLAY Procedure

You can use the GREPLAY windows instead of code-based statements to replay and manage catalog entries. You perform tasks that use the GREPLAY procedure windows by entering values in the fields that are displayed in the windows and by issuing commands from the command line.

There are five GREPLAY windows:

PROC GREPLAY window
PRESENTATION window
DIRECTORY window
TEMPLATE DESIGN window
COLOR MAPPING window.

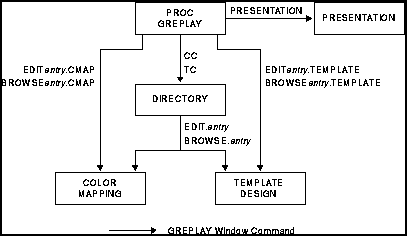

GREPLAY Procedure Windows shows how these windows relate to each other. Each window can be scrolled forward or backward as needed to display additional fields and information.

GREPLAY Procedure Windows

[IMAGE]

This section briefly describes the GREPLAY windows; for a complete description of each window and its fields, refer to the SAS Help facility.

GREPLAY Window Commands

You can navigate and manipulate the GREPLAY windows by entering commands on the command line or by selecting them from the menus. For a complete description of all the GREPLAY window commands, refer to the SAS Help facility.

PROC GREPLAY Window

This window is the first to appear when you submit the PROC GREPLAY statement on a full-screen device without the PRESENTATION or NOFS option. You can use it to both replay graphics output and to manage catalog entries that contain graphics output.

The PROC GREPLAY Window

[IMAGE]

PRESENTATION Window

This window is a modified version of the PROC GREPLAY window that enables you to replay graphics output while it prevents you from deleting entries or changing templates and color maps. Once you have created and organized your catalog, you may want to use the PRESENTATION window in an application for replaying graphics output.

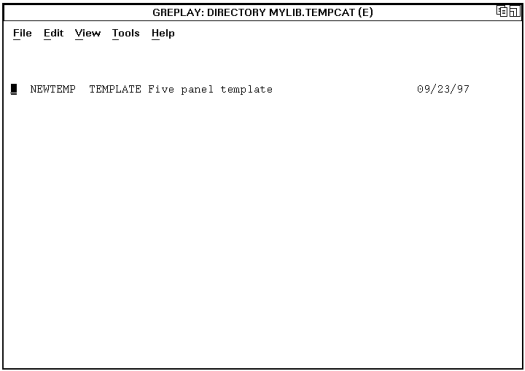

DIRECTORY Window

This window lists the names of the catalog entries, gives a brief description of each, and indicates the date on which each entry was created or last changed. Although all catalog entry types are displayed in the DIRECTORY window, you can manage only entries of type CMAP or TEMPLATE from this window.

The DIRECTORY Window

[IMAGE]

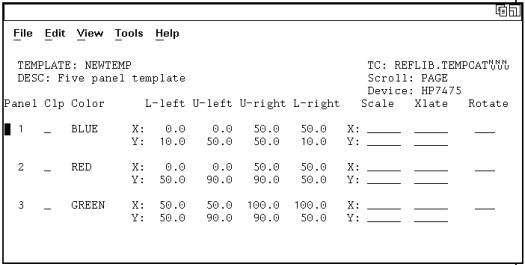

TEMPLATE DESIGN Window

This window lets you design templates that you can use to present graphics output. You design a template by specifying the coordinates of its panels and determining the order in which the template panels are filled. Once you enter coordinates for a panel, you can alter them easily by using the Scale, Xlate (translate), and Rotate utility fields. These utility fields recalculate coordinate values automatically.

The TEMPLATE DESIGN Window

[IMAGE]

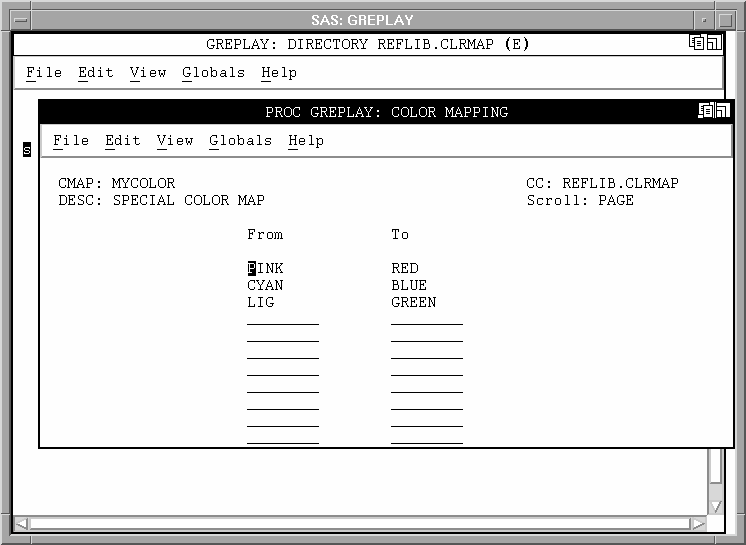

COLOR MAPPING Window

This window allows you to map colors in existing graphics output to new colors when you replay the graphics output. When you replay graphics output that is contained in a catalog entry and assign a current color map, any color in the graphics output that appears in the From column of the color map is mapped to the corresponding color in the To column of the color map. Using a color map does not change the contents of the replayed graphics output and does not produce new graphics output unless a template is also used.

The COLOR MAPPING Window

[IMAGE]

GREPLAY Procedure Windows
If you are in the... and you want to open the... then...

PROC GREPLAY statement PROC GREPLAY window Submit the PROC GREPLAY statement without using the PRESENTATION or NOFS options.

PRESENTATION window Submit the PROC GREPLAY statement and include the PRESENTATION and IGOUT= options.

PROC GREPLAY window PRESENTATION window Specify a catalog and issue the PRES command.

DIRECTORY window Specify a template catalog and issue the TC command.
OR
Specify a color map catalog and issue the CC command.

TEMPLATE DESIGN window Specify a template catalog and issue the following command: edit template-name.template

COLOR MAPPING window Specify a color map catalog and issue the following command: edit color-map-name.cmap

DIRECTORY window TEMPLATE DESIGN window Place an S beside the name of an existing template.
OR
Issue the following command:
edit template-name.template

COLOR MAPPING window Place an S beside the name of an existing color map.
OR
Issue the following command:
edit color-map-name.cmap

***GREPLAY Procedure Windows***
If you are in the...	and you want to open the...	then...
PROC GREPLAY statement	PROC GREPLAY window	Submit the PROC GREPLAY statement without using the PRESENTATION or NOFS options.
	PRESENTATION window	Submit the PROC GREPLAY statement and include the PRESENTATION and IGOUT= options.
PROC GREPLAY window	PRESENTATION window	Specify a catalog and issue the PRES command.
	DIRECTORY window	Specify a template catalog and issue the TC command. OR Specify a color map catalog and issue the CC command.
	TEMPLATE DESIGN window	Specify a template catalog and issue the following command: edit template-name.template
	COLOR MAPPING window	Specify a color map catalog and issue the following command: edit color-map-name.cmap
DIRECTORY window	TEMPLATE DESIGN window	Place an S beside the name of an existing template. OR Issue the following command: edit template-name.template
	COLOR MAPPING window	Place an S beside the name of an existing color map. OR Issue the following command: edit color-map-name.cmap

Managing Catalog Entries

You can replay entries or perform a variety of catalog management tasks with GREPLAY code-based statements. Ways of Performing Common GREPLAY Procedure Tasks lists several common tasks and the statements that you use to perform them.

Ways of Performing Common GREPLAY Procedure Tasks
Task Code-based Statement

copy graphics output (GRSEGs) from the input catalog to the output catalog* COPY statement

arrange GRSEG entries into logical groupings GROUP statement

reorder the entries MOVE statement

delete unneeded GRSEG entries DELETE statement

change entry names and descriptions of entries in the input catalog MODIFY statement

replay an entry from the input catalog REPLAY statement

replay an entry in a template panel TREPLAY statement

*You must assign an output catalog before copying graphics output.

***Ways of Performing Common GREPLAY Procedure Tasks***
Task	Code-based Statement
copy graphics output (GRSEGs) from the input catalog to the output catalog*	COPY statement
arrange GRSEG entries into logical groupings	GROUP statement
reorder the entries	MOVE statement
delete unneeded GRSEG entries	DELETE statement
change entry names and descriptions of entries in the input catalog	MODIFY statement
replay an entry from the input catalog	REPLAY statement
replay an entry in a template panel	TREPLAY statement
*You must assign an output catalog before copying graphics output.

Replaying Catalog Entries

To select catalog entries for replay, first assign an input catalog that contains the graphics output that is to be replayed. Then assign the entry with the REPLAY statement.

For example, the following statements replay the GRSEG entry named GRAPH1 from the catalog MYLIB.GRAPHS, which is assigned with the IGOUT= option:

libname mylib 'SAS-data-library';

proc greplay igout=mylib.graphs nofs;
   replay graph1;
run;
quit;

If you do not specify an output catalog with the GOUT= option in the PROC statement of the SAS/GRAPH procedure that creates the graphics output, the graphics output is automatically stored in the WORK.GSEG catalog. Replay the graphics output that is stored in this catalog as follows:

proc greplay nofs;
   igout work.gseg;
   replay _all_;
run;
quit;

Creating Templates and Color Maps

You can use the GREPLAY procedure to create templates and color maps. You can use templates to replay graphics output from several catalog entries on a single display, or to change the shape or size of graphics output. You can use color maps to remap colors when replaying graphics output.

A color map is a list of up to 256 pairs of colors that enables you to change the colors in graphics output by mapping the original colors to a list of new colors. Color maps are useful for controlling how colors that are not available on the current device are remapped.

When you assign a current color map and replay graphics output that is stored in a catalog entry, any color in your graphics output that appears in the From column of the color map is mapped to the corresponding color in the To column of the color map. The new colors are not saved with the graphics output, and you do not create new graphics output when you use a color map to replay graphics output.

Ways of Performing Common GREPLAY Procedure Tasks
Task In line mode

assign a color map catalog CC statement

copy a color map from another catalog CCOPY statement

define or modify a color map in the current catalog CDEF statement

assign a color map to use when you replay graphics output CMAP statement

delete unneeded entries DELETE statement

assign a template catalog TC statement

copy a template from another catalog TCOPY statement

delete a template TDELETE statement

define a template TDEF statement

display the panel outlines for a template PREVIEW statement

assign a template to use when you replay graphics output TEMPLATE statement

replay an entry in a template panel TREPLAY statement

***Ways of Performing Common GREPLAY Procedure Tasks***
Task	In line mode
assign a color map catalog	CC statement
copy a color map from another catalog	CCOPY statement
define or modify a color map in the current catalog	CDEF statement
assign a color map to use when you replay graphics output	CMAP statement
delete unneeded entries	DELETE statement
assign a template catalog	TC statement
copy a template from another catalog	TCOPY statement
delete a template	TDELETE statement
define a template	TDEF statement
display the panel outlines for a template	PREVIEW statement
assign a template to use when you replay graphics output	TEMPLATE statement
replay an entry in a template panel	TREPLAY statement

Before you create a template, you must assign a template catalog. If you are use the GREPLAY procedure in line mode, use the TDEF statement to define a template and the PREVIEW statement to preview a template. For example, the following statements define and preview a template named TEMPLT:

tdef templt 1/def;
preview templt;

Before you create a color map, you must assign a color map catalog. If you use the GREPLAY procedure in line mode, use the CDEF statement to define a color map. For example, the following statement defines a color map named CLRMAP:

cdef clrmap 1 / cyan : blue;

Replaying Graphics Output in a Template

You can use the GREPLAY procedure to create new graphics output by replaying existing graphics output in templates. You can use the templates that are provided with SAS/GRAPH software and stored in the catalog SASHELP.TEMPLT, or you can create your own templates. Before you can replay graphics output in a template, you must assign a template catalog and a current template, as well as an input catalog. Then assign the entries to the template with the TREPLAY statement.

For example, the following statements replay the entries GRAPH1 and GRAPH2 into the V2 template, which is stored in the catalog SASHELP.TEMPLT. The TC statement specifies the catalog that contains the template, and the TEMPLATE statement specifies the template. The TREPLAY statement assigns each entry to a panel. (The V2 template has two panels, so there is an assignment for panel 1 and panel 2.)

proc greplay igout=mylib.graphs nofs;
   tc sashelp.templt;
   template v2;
   treplay 1:graph1 2:graph2;
run;

When you replay graphics output in a template, the new graphics output that is created by the GREPLAY procedure is automatically provided a default name and is stored in the output catalog, WORK.GSEG.

Templates are often used to describe positioning for replaying graphics output from several catalog entries on a single display.
