Editing Windows |
Restore the arrow tool by clicking on the arrow button in the Tools window. |
Choose Edit:Windows:Renew. |
Figure 25.10: Edit:Windows Menu

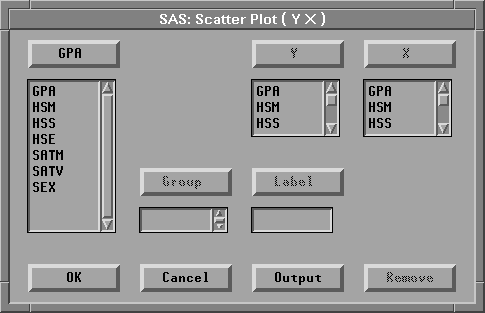

This displays the Scatter Plot variables dialog used to create the window.
Click OK to re-create the scatter plot matrix at its original size, as shown in Figure 25.3. |
You can also use Edit:Windows:Renew to adjust variables and options associated with your window.
Choose Edit:Windows:Renew again to display the variables dialog. |
In the dialog, select SATM, SATV, and SEX in both Y and X lists. |
Click Remove to remove these variables. |

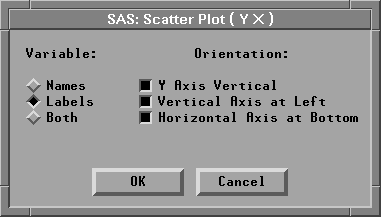

Click Output to display the output options dialog. |
In the options dialog, click on the Labels button to display variable labels. |
Click OK in both dialogs to renew the window. |

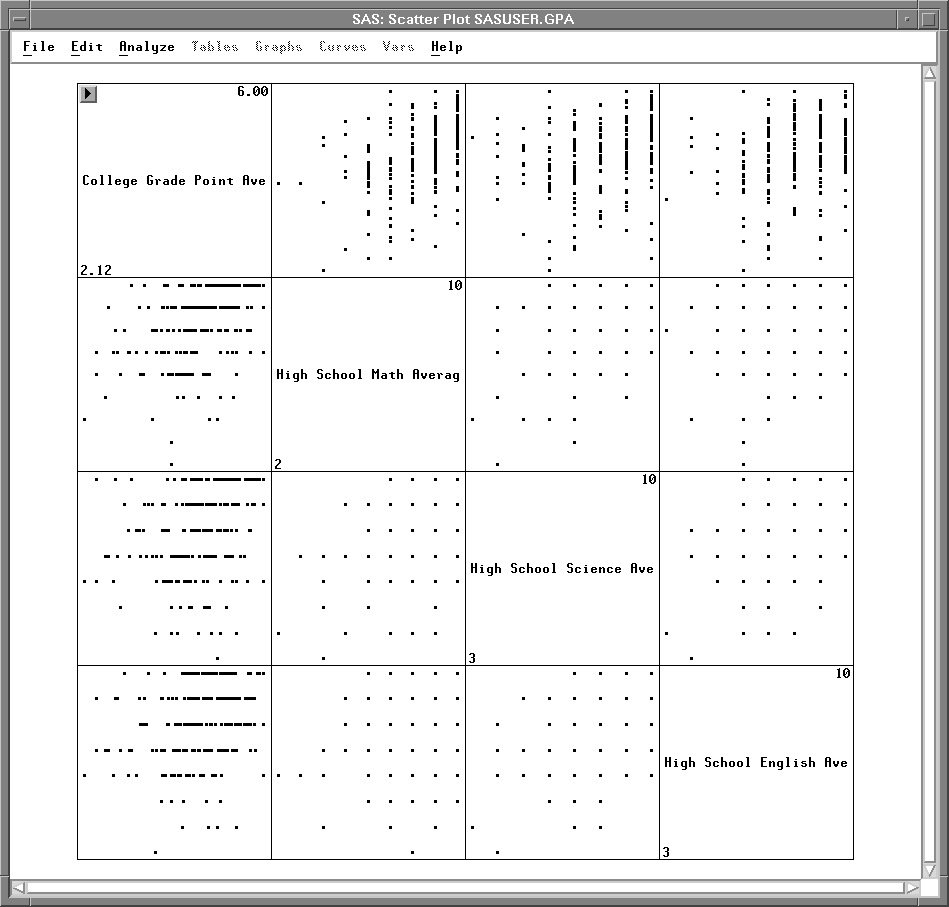

The matrix that was seven-by-seven is now four-by-four,
and it displays variable labels instead of names.
To reset the scatter plot output to display variable names again, follow the same steps to display the scatter plot options dialog, then click on the Names button under Variable: in the dialog.
Related Reading | Scatter Plot Matrix, Chapter 5, Chapter 35. |
