SAS Companion for the Microsoft Windows Environment

Editing an OLE Object within a FRAME Entry

One of the most impressive features of OLE 2.0 is visual editing--the ability to edit an embedded object in-place, without explicitly changing to another application.

To activate visual editing for an OLE object in your FRAME entry at build time, click the right mouse button and select Edit. To activate visual editing at run time, simply double-click on the object. If the object's application supports visual editing as a server application, then the following occurs:

The object's representation in the FRAME entry changes to an editing session of the actual object. The object's borders might change to accommodate the tools supplied by the server application.
The SAS menu bar changes to accommodate the menu bar of the server application. The File and Window menu remains the same, but the remainder of the menu bar changes to that of the server application.
If the server application normally provides any tools, such as toolbar icons or a floating toolbox, those items also become available.

For example, SAS/AF FRAME Entry with Word Object Activated shows a SAS/AF FRAME entry with a Microsoft Word object activated.

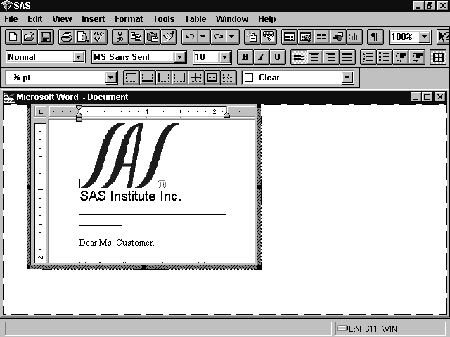

SAS/AF FRAME Entry with Word Object Activated

[IMAGE]

After this transformation, you can edit the object using all of the tools and menus provided by the server application.

To end your visual editing session, click elsewhere inside the FRAME entry and outside the object. SAS resumes control of the session, and returns to the default SAS menus and tools.

Note:

The HSERVICE entry is automatically updated at the end of a visual editing session only if the object has been saved previously (that is, an HSERVICE entry has been created for it). Otherwise, you must select Save (or End) from the File menu in SAS/AF software to create the HSERVICE entry.
Also, if you modify the object during TESTAF mode and you want to save the modifications in the HSERVICE entry, you must update the object's contents by selecting Update from the Locals menu before returning to BUILD mode.
If you move the OLE object within the FRAME entry during visual editing (in BUILD mode), the object returns to its original position when you click outside of it (ending the visual editing session). If you want to move the object to another position in the FRAME entry, end the visual editing session and then move the object region.
Most OLE objects require that you double-click on them to activate them. However, a few types of objects require only a single-click to activate them.
If you attempt to edit a linked object or an OLE object whose server application does not support visual editing, the server application launches as a separate instance and allows you to edit the object. This is known as open editing and is consistent with the behavior of linked objects and all OLE 1.0 objects.
