DCT-based General Structure for Linear Phase Paraunitary Filter Banks

The DCT-based TDLT can be generalized to cover all even-channel linear phase paraunitary filter banks, which can be viewed as the dual of the generalized LOT (GenLOT). The DCT can also be embedded in the existing structure of odd-channel LPPUFB and filter bank with pair-wise mirror image property.

Advantages of the new structure:

• Fast implementation;
• Reduced complexity in the FB design;
• DCT-oriented initialization can be applied to ensure the convergence of the FB optimization.
• DC leakage can be eliminated with simple modification.

General Structure

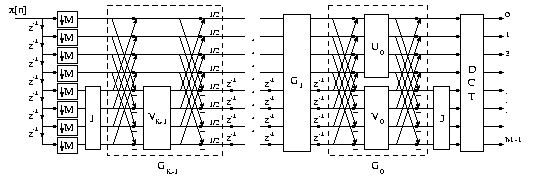

Fig. 1. DCT-based general structure for even-channel LPPUFB.

Design Examples

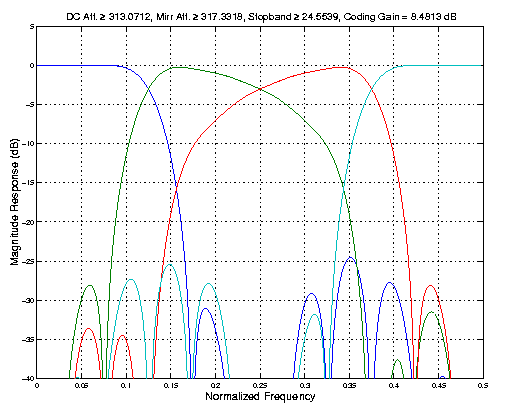

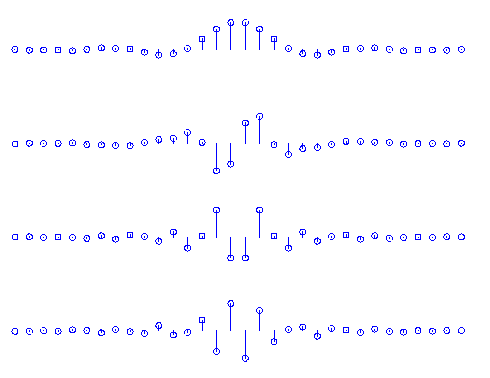

Fig. 2. 4-channel 32-tap LPPUFB.

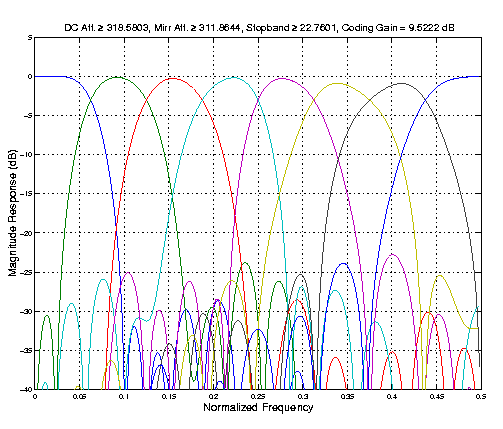

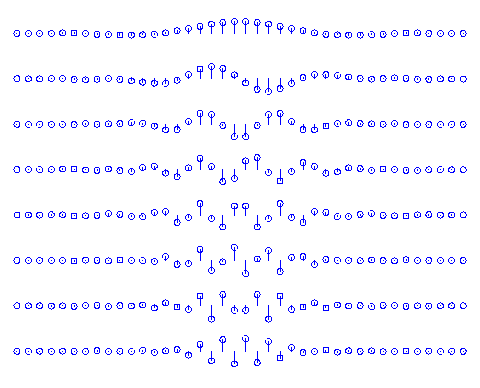

Fig. 3. 8-channel 40-tap LPPUFB.

For more information, please check the paper:

J. Liang and T. D. Tran, "DCT-based General Structure for Linear Phase Paraunitary Filter Banks", submitted to 2002 IEEE Int. Conf. on Acoustics, Speech, and Signal Processing, Oct. 2001.
PostScript | PDF
