Automatic State Space Model Selection

The STATESPACE Procedure

Automatic State Space Model Selection

The STATESPACE procedure is designed to automatically select the best state space model for forecasting the series. You can specify your own model if you wish, and you can use the output from PROC STATESPACE to help you identify a state space model. However, the easiest way to use PROC STATESPACE is to let it choose the model.

Stationarity and Differencing

Although PROC STATESPACE selects the state space model automatically, it does assume that the input series are stationary. If the series are nonstationary, then the process may fail. Therefore the first step is to examine your data and test to see if differencing is required. (See the section "Stationarity and Differencing" later in this chapter for further discussion of this issue.)

The series shown in Figure 18.1 are nonstationary. In order to forecast X and Y with a state space model, you must difference them (or use some other de-trending method). If you fail to difference when needed and try to use PROC STATESPACE with nonstationary data, an inappropriate state space model may be selected, and the model estimation may fail to converge.

The following statements identify and fit a state space model for the first differences of X and Y, and forecast X and Y 10 periods ahead:

   proc statespace data=in out=out lead=10;
      var x(1) y(1);
      id t;
   run;

The DATA= option specifies the input data set and the OUT= option specifies the output data set for the forecasts. The LEAD= option specifies forecasting 10 observations past the end of the input data. The VAR statement specifies the variables to forecast and specifies differencing. The notation X(1) Y(1) specifies that the state space model analyzes the first differences of X and Y.

Descriptive Statistics and Preliminary Autoregressions

The first page of the printed output produced by the preceding statements is shown in Figure 18.2.

The STATESPACE Procedure

Number of Observations	200

Variable	Mean	Standard Error
x	0.144316	1.233457	Has been differenced. With period(s) = 1.
y	0.164871	1.304358	Has been differenced. With period(s) = 1.

The STATESPACE Procedure

Information Criterion for Autoregressive Models
Lag=0	Lag=1	Lag=2	Lag=3	Lag=4	Lag=5	Lag=6	Lag=7	Lag=8	Lag=9	Lag=10
149.697	8.387786	5.517099	12.05986	15.36952	21.79538	24.00638	29.88874	33.55708	41.17606	47.70222

Schematic Representation of Correlations
Name/Lag	0	1	2	3	4	5	6	7	8	9	10
x	++	++	++	++	++	++	+.	..	+.	+.	..
y	++	++	++	++	++	+.	+.	+.	+.	..	..
*+ is > 2std error, - is < -2std error, . is between*

Figure 18.2: Descriptive Statistics and VAR Order Selection

Descriptive statistics are printed first, giving the number of nonmissing observations after differencing, and the sample means and standard deviations of the differenced series. The sample means are subtracted before the series are modeled (unless the NOCENTER option is specified), and the sample means are added back when the forecasts are produced.

Let X_t and Y_t be the observed values of X and Y, and let x_t and y_t be the values of X and Y after differencing and subtracting the mean difference. The series x_t modeled by the STATEPSPACE procedure is

$x_{t} = [\matrix{x_{t} \cr y_{t} }] = [\matrix{(1-B)X_{t} - 0.144316 \cr (1-B)Y_{t} - 0.164871 }]$

where B represents the backshift operator.

After the descriptive statistics, PROC STATESPACE prints the Akaike information criterion (AIC) values for the autoregressive models fit to the series. The smallest AIC value, in this case 5.517 at lag 2, determines the number of autocovariance matrices analyzed in the canonical correlation phase.

A schematic representation of the autocorrelations is printed next. This indicates which elements of the autocorrelation matrices at different lags are significantly greater or less than 0.

The second page of the STATESPACE printed output is shown in Figure 18.3.

The STATESPACE Procedure

Schematic Representation of Partial Autocorrelations
Name/Lag	1	2	3	4	5	6	7	8	9	10
x	++	+.	..	..	..	..	..	..	..	..
y	++	..	..	..	..	..	..	..	..	..
*+ is > 2std error, - is < -2std error, . is between*

Yule-Walker Estimates for Minimum AIC
	Lag=1		Lag=2
	x	y	x	y
x	0.257438	0.202237	0.170812	0.133554
y	0.292177	0.469297	-0.00537	-0.00048

Figure 18.3: Partial Autocorrelations and VAR Model

Figure 18.3 shows a schematic representation of the partial autocorrelations, similar to the autocorrelations shown in Figure 18.2. The selection of a second order autoregressive model by the AIC statistic looks reasonable in this case because the partial autocorrelations for lags greater than 2 are not significant.

Next, the Yule-Walker estimates for the selected autoregressive model are printed. This output shows the coefficient matrices of the vector autoregressive model at each lag.

Selected State Space Model Form and Preliminary Estimates

After the autoregressive order selection process has determined the number of lags to consider, the canonical correlation analysis phase selects the state vector. By default, output for this process is not printed. You can use the CANCORR option to print details of the canonical correlation analysis. See the section "Canonical Correlation Analysis" later in this chapter for an explanation of this process.

Once the state vector is selected the state space model is estimated by approximate maximum likelihood. Information from the canonical correlation analysis and from the preliminary autoregression is used to form preliminary estimates of the state space model parameters. These preliminary estimates are used as starting values for the iterative estimation process.

The form of the state vector and the preliminary estimates are printed next, as shown in Figure 18.4.

The STATESPACE Procedure

Selected Statespace Form and Preliminary Estimates

State Vector
x(T;T)	y(T;T)	x(T+1;T)

Estimate of Transition Matrix
0	0	1
0.291536	0.468762	-0.00411
0.24869	0.24484	0.204257

Input Matrix for Innovation
1	0
0	1
0.257438	0.202237

Variance Matrix for Innovation
0.945196	0.100786
0.100786	1.014703

Figure 18.4: Preliminary Estimates of State Space Model

Figure 18.4 first prints the state vector as X[T;T] Y[T;T] X[T+1;T]. This notation indicates that the state vector is

$z_{t} = [\matrix{x_{t| t} \cr y_{t| t} \cr x_{t+1| t} }]$

The notation x_t+1|t indicates the conditional expectation or prediction of x_t+1 based on the information available at time t, and x_t|t and y_t|t are x_t and y_t respectively.

The remainder of Figure 18.4 shows the preliminary estimates of the transition matrix F, the input matrix G, and the covariance matrix ${{{\Sigma}_{ee}}}$ .

Estimated State Space Model

The next page of the STATESPACE output prints the final estimates of the fitted model, as shown in Figure 18.5. This output has the same form as in Figure 18.4, but shows the maximum likelihood estimates instead of the preliminary estimates.

The STATESPACE Procedure

Selected Statespace Form and Fitted Model

State Vector
x(T;T)	y(T;T)	x(T+1;T)

Estimate of Transition Matrix
0	0	1
0.297273	0.47376	-0.01998
0.2301	0.228425	0.256031

Input Matrix for Innovation
1	0
0	1
0.257284	0.202273

Variance Matrix for Innovation
0.945188	0.100752
0.100752	1.014712

Figure 18.5: Fitted State Space Model

The estimated state space model shown in Figure 18.5 is

$[\matrix{ x_{t+1| t+1} \cr y_{t+1| t+1} \cr x_{t+2| t+1} }] &=& [\matrix{0 & ... ...\matrix{e_{t+1} \cr n_{t+1} }] &=& [\matrix{0.945 & 0.101 \cr 0.101 & 1.015 }]$

The next page of the STATESPACE output lists the estimates of the free parameters in the F and G matrices with standard errors and t statistics, as shown in Figure 18.6.

The STATESPACE Procedure

Parameter Estimates
Parameter	Estimate	Standard Error	t Value
F(2,1)	0.297273	0.129995	2.29
F(2,2)	0.473760	0.115688	4.10
F(2,3)	-0.01998	0.313025	-0.06
F(3,1)	0.230100	0.126226	1.82
F(3,2)	0.228425	0.112978	2.02
F(3,3)	0.256031	0.305256	0.84
G(3,1)	0.257284	0.071060	3.62
G(3,2)	0.202273	0.068593	2.95

Figure 18.6: Final Parameter Estimates

Convergence Failures

The maximum likelihood estimates are computed by an iterative nonlinear maximization algorithm, which may not converge. If the estimates fail to converge, warning messages are printed in the output.

If you encounter convergence problems, you should recheck the stationarity of the data and ensure that the specified differencing orders are correct. Attempting to fit state space models to nonstationary data is a common cause of convergence failure. You can also use the MAXIT= option to increase the number of iterations allowed, or experiment with the convergence tolerance options DETTOL= and PARMTOL=.

Forecast Data Set

The following statements print the output data set. The WHERE statement excludes the first 190 observations from the output, so that only the forecasts and the last 10 actual observations are printed.

   proc print data=out;
      id t;
      where t > 190;
   run;

The PROC PRINT output is shown in Figure 18.7.

t	x	FOR1	RES1	STD1	y	FOR2	RES2	STD2
191	34.8159	33.6299	1.18600	0.97221	58.7189	57.9916	0.72728	1.00733
192	35.0656	35.6598	-0.59419	0.97221	58.5440	59.7718	-1.22780	1.00733
193	34.7034	35.5530	-0.84962	0.97221	59.0476	58.5723	0.47522	1.00733
194	34.6626	34.7597	-0.09707	0.97221	59.7774	59.2241	0.55330	1.00733
195	34.4055	34.8322	-0.42664	0.97221	60.5118	60.1544	0.35738	1.00733
196	33.8210	34.6053	-0.78434	0.97221	59.8750	60.8260	-0.95102	1.00733
197	34.0164	33.6230	0.39333	0.97221	58.4698	59.4502	-0.98046	1.00733
198	35.3819	33.6251	1.75684	0.97221	60.6782	57.9167	2.76150	1.00733
199	36.2954	36.0528	0.24256	0.97221	60.9692	62.1637	-1.19450	1.00733
200	37.8945	37.1431	0.75142	0.97221	60.8586	61.4085	-0.54984	1.00733
201	.	38.5068	.	0.97221	.	61.3161	.	1.00733
202	.	39.0428	.	1.59125	.	61.7509	.	1.83678
203	.	39.4619	.	2.28028	.	62.1546	.	2.62366
204	.	39.8284	.	2.97824	.	62.5099	.	3.38839
205	.	40.1474	.	3.67689	.	62.8275	.	4.12805
206	.	40.4310	.	4.36299	.	63.1139	.	4.84149
207	.	40.6861	.	5.03040	.	63.3755	.	5.52744
208	.	40.9185	.	5.67548	.	63.6174	.	6.18564
209	.	41.1330	.	6.29673	.	63.8435	.	6.81655
210	.	41.3332	.	6.89383	.	64.0572	.	7.42114

Figure 18.7: OUT= Data Set Produced by PROC STATESPACE

The OUT= data set produced by PROC STATESPACE contains the VAR and ID statement variables. In addition, for each VAR statement variable, the OUT= data set contains the variables FORi, RESi, and STDi. These variables contain the predicted values, residuals, and forecast standard errors for the ith variable in the VAR statement list. In this case, X is listed first in the VAR statement, so FOR1 contains the forecasts of X, while FOR2 contains the forecasts of Y.

The following statements plot the forecasts and actuals for the series.

   proc gplot data=out;
      plot for1*t=1 for2*t=1 x*t=2 y*t=2 /
           overlay HREF=200.5;
      symbol1 v=circle i=join;
      symbol2 v=star i=none;
      where t > 150;
   run;

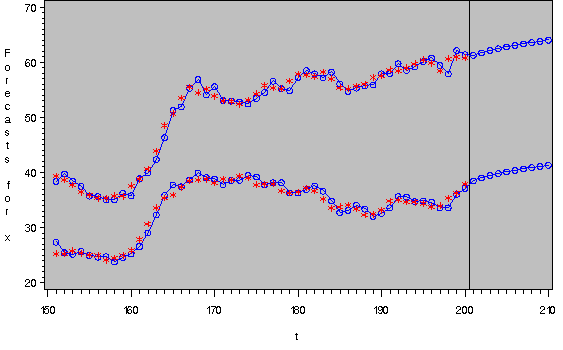

The forecast plot is shown in Figure 18.8. The last 50 observations are also plotted to provide context, and a reference line is drawn between the historical and forecast periods. The actual values are plotted with asterisks.

Figure 18.8: Plot of Forecasts

Controlling Printed Output

By default, the STATESPACE procedure produces a large amount of printed output. The NOPRINT option suppresses all printed output. You can suppress the printed output for the autoregressive model selection process with the PRINTOUT=NONE option. The descriptive statistics and state space model estimation output are still printed when PRINTOUT=NONE is specified. You can produce more detailed output with the PRINTOUT=LONG option and by specifying the printing control options CANCORR, COVB, and PRINT.
