Example 4.16: Gantt Charts by Persons

The GANTT Procedure

Example 4.16: Gantt Charts by Persons

Now suppose that you want to obtain individual Gantt charts for two people (Thomas and William) working on the widget manufacturing project. The data set WIDGBYGP, displayed in Output 4.16.1, contains two new variables, THOMAS and WILLIAM. Each variable has a value '1' for activities in which the person is involved and a missing value otherwise. Thus, a value of '1' for the variable THOMAS in observation number 2 indicates that Thomas is working on the activity 'Drawings'.

PROC CPM is used to schedule the project to start on December 2, 1991. A data set named PERSONS is created containing one observation per activity per person working on that activity and a new variable named PERSON containing the name of the person to which the observation pertains. For example, this new data set contains two observations for the activity 'Write Specs', one with PERSON='Thomas' and the other with PERSON='William', and no observation for the activity 'Approve Plan' . This data set is sorted by PERSON and E_START, and displayed in Output 4.16.2. PROC GANTT is next invoked with a BY statement to obtain individual charts for each person. The resulting Gantt charts are shown in Output 4.16.3. The BY-LINE is suppressed by specifying the NOBYLINE option in an OPTIONS statement and the name of the person corresponding to the chart is displayed in the subtitle by using the #BYVAL substitution in the TITLE2 statement.

Output 4.16.1: Gantt Charts by Persons

Gantt Example 16

Data widgbyp

Obs	task	days	tail	head	thomas	william
1	Approve Plan	5	1	2	.	.
2	Drawings	10	2	3	1	.
3	Anal. Market	5	2	4	.	.
4	Write Specs	5	2	3	1	1
5	Prototype	15	3	5	1	1
6	Mkt. Strat.	10	4	6	.	.
7	Materials	10	5	7	.	1
8	Facility	10	5	7	.	1
9	Init. Prod.	10	7	8	1	.
10	Evaluate	10	8	9	1	1
11	Test Market	15	6	9	.	.
12	Changes	5	9	10	1	.
13	Production	0	10	11	.	1
14	Marketing	0	6	12	.	.
15	Dummy	0	8	6	.	.

   title f=swiss 'Gantt Example 16';

   proc cpm data=widgbyp date='2dec91'd;
      tailnode tail;
      duration days;
      headnode head;
      id task thomas william;
   run;


   data persons;
      set _last_;
      if william^=. then do;
         person='William';
         output;
         end;
      if thomas^=. then do;
         person='Thomas';
         output;
         end;
      drop thomas william;
   run;


   proc sort data=persons;
      by person e_start;
   run;


   title2 'Data PERSONS';
   proc print data=persons;
   run;

   /* suppress byline */
   options nobyline;

   title2 f=swiss 'Personalized Gantt Chart for #BYVAL(person)';

   proc gantt data=persons;
      chart / pcompress font=swiss;
      by person;
      id task;
      run;

Output 4.16.2: Gantt Charts by Persons

Data PERSONS

Obs	tail	head	days	task	E_START	E_FINISH	L_START	L_FINISH	T_FLOAT	F_FLOAT	person
1	2	3	10	Drawings	07DEC91	16DEC91	07DEC91	16DEC91	0	0	Thomas
2	2	3	5	Write Specs	07DEC91	11DEC91	12DEC91	16DEC91	5	5	Thomas
3	3	5	15	Prototype	17DEC91	31DEC91	17DEC91	31DEC91	0	0	Thomas
4	7	8	10	Init. Prod.	11JAN92	20JAN92	11JAN92	20JAN92	0	0	Thomas
5	8	9	10	Evaluate	21JAN92	30JAN92	26JAN92	04FEB92	5	5	Thomas
6	9	10	5	Changes	05FEB92	09FEB92	05FEB92	09FEB92	0	0	Thomas
7	2	3	5	Write Specs	07DEC91	11DEC91	12DEC91	16DEC91	5	5	William
8	3	5	15	Prototype	17DEC91	31DEC91	17DEC91	31DEC91	0	0	William
9	5	7	10	Materials	01JAN92	10JAN92	01JAN92	10JAN92	0	0	William
10	5	7	10	Facility	01JAN92	10JAN92	01JAN92	10JAN92	0	0	William
11	8	9	10	Evaluate	21JAN92	30JAN92	26JAN92	04FEB92	5	5	William
12	10	11	0	Production	10FEB92	10FEB92	10FEB92	10FEB92	0	0	William

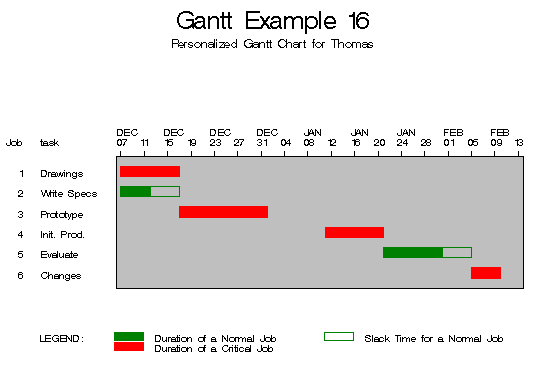

Output 4.16.3: Gantt Charts by Person
