Positioning the Inset Using Compass Points

INSET Statement

Positioning the Inset Using Compass Points

You can specify the eight compass points N, NE, E, SE, S, SW, W, and NW as keywords for the POSITION= option. The following statements create the display in Figure 28.5, which demonstrates all eight compass positions. The default is NW.

   proc pareto data=failure3;
      vbar cause /
         freq     = counts;
         cframe   = ligr
         cbars    = vigb
         cconnect = salmon;
      inset n / height=3 cfill=ywh ctext = vigb header='NW' pos=nw;
      inset n / height=3 cfill=ywh ctext = vigb header='N ' pos=n ;
      inset n / height=3 cfill=ywh ctext = vigb header='NE' pos=ne;
      inset n / height=3 cfill=ywh ctext = vigb header='E ' pos=e ;
      inset n / height=3 cfill=ywh ctext = vigb header='SE' pos=se;
      inset n / height=3 cfill=ywh ctext = vigb header='S ' pos=s ;
      inset n / height=3 cfill=ywh ctext = vigb header='SW' pos=sw;
      inset n / height=3 cfill=ywh ctext = vigb header='W ' pos=w ;
   run;

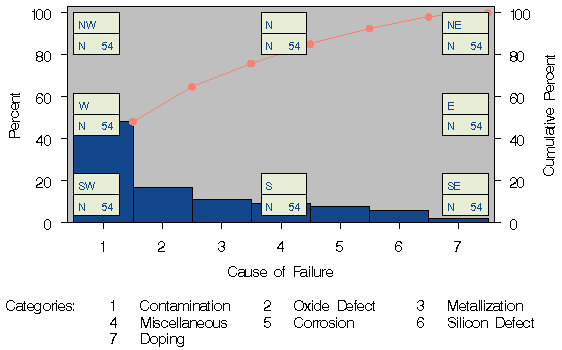

Figure 28.5: Insets Positioned Using Compass Points
