Example 33.1: Applying Tests for Special Causes

CCHART Statement

Example 33.1: Applying Tests for Special Causes

See SHWCEX1 in the SAS/QC Sample Library

This example illustrates how you can apply tests for special causes to make c charts more sensitive to special causes of variation. Twenty trucks of the same model are inspected, and the number of paint defects per truck is recorded. The following statements create a SAS data set named TRUCKS3:

   data trucks3;
      input truckid $ defects @@;
      label truckid='Truck Identification Number'
            defects='Number of Paint Defects';
      datalines;
   B1  12   B2   4   B3   4   B4   3   B5   4
   D1   2   D2   3   D3   3   D4   2   D9   4
   M2   9   M6  13   L3   5   L4   4   L7   6
   Z1  15   Z2   8   Z3   9   Z7   6   Z9   8
   ;

The following statements create a c chart and tabulate the information on the chart. The chart and table are shown in Output 33.1.1 and Output 33.1.2.

   title1 'c Chart for Paint Defects in New Trucks';
   title2 'Tests=1 to 4';
   symbol v=dot c=red;
   proc shewhart data=trucks3;
      cchart defects*truckid / tests      = 1 to 4
                               testlabel1 = 'Test=1 Signaled'
                               testlabel2 = 'Test=2 signaled'
                               testfont   = swiss
                               ltests     = 20
                               zonelabels
                               tabletests
                               tablelegend
                               cframe     = steel
                               cinfill    = ligr
                               coutfill   = yellow
                               czones     = vig
                               ltests     = 20
                               ctests     = dagr
                               cconnect   = red;
   run;

The TESTS= option requests Tests 1, 2, 3, and 4, which are described in Chapter 48, "Tests for Special Causes." Only Tests 1, 2, 3, and 4 are recommended for c charts. The TESTLABEL1= and TESTLABEL2= options specify the labels for points where Tests 1 and 2 are positive. The TESTFONT= option specifies the font for the labels indicating points at which the tests are positive.

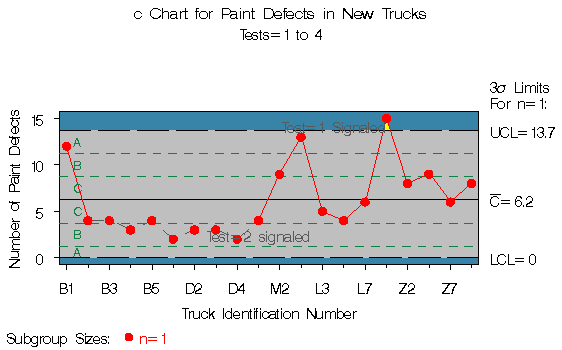

Output 33.1.1: Tests for Special Causes Displayed on c Chart

Output 33.1.2: Tabular Form of c Chart

c Chart for Paint Defects in New Trucks

Tests=1 to 4

The SHEWHART Procedure

c Chart Summary for defects
truckid	Subgroup Sample Size	3 Sigma Limits with n=1 for Count			Special Tests Signaled
truckid	Subgroup Sample Size	Lower Limit	Subgroup Count	Upper Limit	Special Tests Signaled
B1	1.00000	0	12.000000	13.669940
B2	1.00000	0	4.000000	13.669940
B3	1.00000	0	4.000000	13.669940
B4	1.00000	0	3.000000	13.669940
B5	1.00000	0	4.000000	13.669940
D1	1.00000	0	2.000000	13.669940
D2	1.00000	0	3.000000	13.669940
D3	1.00000	0	3.000000	13.669940
D4	1.00000	0	2.000000	13.669940
D9	1.00000	0	4.000000	13.669940	2
M2	1.00000	0	9.000000	13.669940
M6	1.00000	0	13.000000	13.669940
L3	1.00000	0	5.000000	13.669940
L4	1.00000	0	4.000000	13.669940
L7	1.00000	0	6.000000	13.669940
Z1	1.00000	0	15.000000	13.669940	1
Z2	1.00000	0	8.000000	13.669940
Z3	1.00000	0	9.000000	13.669940
Z7	1.00000	0	6.000000	13.669940
Z9	1.00000	0	8.000000	13.669940

Test Descriptions
Test 1	One point beyond Zone A (outside control limits)
Test 2	Nine points in a row on one side of center line

The ZONELABELS option requests zone lines and displays zone labels on the chart. The zones are used to define the tests. The LTESTS= option specifies the line type used to connect the points in a pattern for a test that is signaled. The TABLETESTS option requests a table of counts of nonconformities, subgroup sample sizes, and control limits, together with a column indicating the subgroups at which the tests are positive. The TABLELEGEND option adds a legend describing the tests that are positive.

Output 33.1.1 and Output 33.1.2 indicate that Test 1 is positive at Truck Z1 and Test 2 is positive at Truck D9.
