Example 37.1: Applying Tests for Special Causes

See SHWNP2 in the SAS/QC Sample Library

This example shows how you can apply tests for special causes to make np charts more sensitive to special causes of variation. The following statements create a SAS data set named CIRCUIT3, which contains the number of failing circuits for 20 batches from the circuit manufacturing process introduced in the "Creating np Charts from Count Data" section:

   data circuit3;
      input batch fail @@;
   datalines;
    1 12    2 21    3 16    4  9
    5  3    6  4    7  6    8  9
    9 11   10 13   11 12   12  7
   13  2   14 14   15  9   16  8
   17 14   18 10   19 11   20  9
   ;

The following statements create the np chart, apply several tests to the chart, and tabulate the results:

   title1'np Chart for the Number of Failing Circuits';
   title2 'Tests=1 to 4';
   symbol v=dot c=yellow;
   proc shewhart data=circuit3;
      npchart fail*batch / subgroupn = 500
                           tests     = 1 to 4
                           ltests    = 20
                           zonelabels
                           tabletest
                           tablelegend
                           cframe    = vibg
                           cinfill   = vlibg
                           coutfill  = salmon
                           cconnect  = yellow
                           czones    = blue
                           ctests    = cxfefefe;
   run;

The chart is shown in Output 37.1.1, and the printed output is shown in Output 37.1.2. The TESTS= option requests Tests 1, 2, 3, and 4, which are described in Chapter 48, "Tests for Special Causes." The TABLETESTS option requests a table of counts of nonconforming items and control limits, with a column indicating which subgroups tested positive for special causes. The TABLELEGEND option adds a legend describing the tests.

The ZONELABELS option displays zone lines and zone labels on the chart. The zones are used to define the tests. The LTESTS= option specifies the line type used to connect the points in a pattern for a test that is signaled.

Output 37.1.1 and Output 37.1.2 indicate that Test 1 is positive at batch 2 and Test 3 is positive at batch 10.

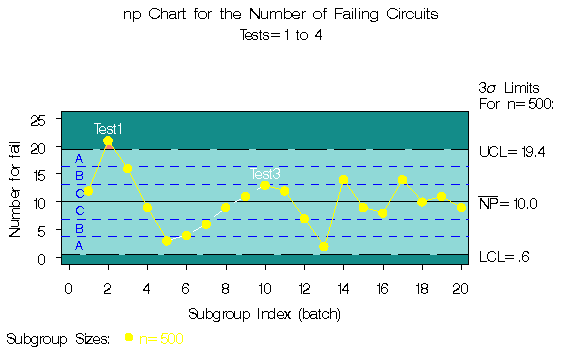

Output 37.1.1: Tests for Special Causes Displayed on np Chart

Output 37.1.2: Tabular Form of np Chart

np Chart for the Number of Failing Circuits

Tests=1 to 4

The SHEWHART Procedure

np Chart Summary for fail
batch	Subgroup Sample Size	3 Sigma Limits with n=500 for Number			Special Tests Signaled
batch	Subgroup Sample Size	Lower Limit	Subgroup Number	Upper Limit	Special Tests Signaled
1	500	0.60851449	12.000000	19.391486
2	500	0.60851449	21.000000	19.391486	1
3	500	0.60851449	16.000000	19.391486
4	500	0.60851449	9.000000	19.391486
5	500	0.60851449	3.000000	19.391486
6	500	0.60851449	4.000000	19.391486
7	500	0.60851449	6.000000	19.391486
8	500	0.60851449	9.000000	19.391486
9	500	0.60851449	11.000000	19.391486
10	500	0.60851449	13.000000	19.391486	3
11	500	0.60851449	12.000000	19.391486
12	500	0.60851449	7.000000	19.391486
13	500	0.60851449	2.000000	19.391486
14	500	0.60851449	14.000000	19.391486
15	500	0.60851449	9.000000	19.391486
16	500	0.60851449	8.000000	19.391486
17	500	0.60851449	14.000000	19.391486
18	500	0.60851449	10.000000	19.391486
19	500	0.60851449	11.000000	19.391486
20	500	0.60851449	9.000000	19.391486

Test Descriptions
Test 1	One point beyond Zone A (outside control limits)
Test 3	Six points in a row steadily increasing or decreasing
