Positioning the Inset Using Compass Points

INSET and INSET2 Statements

Positioning the Inset Using Compass Points

You can specify the eight compass points N, NE, E, SE, S, SW, W, and NW as keywords for the POSITION= option. The following statements create the display in Figure 45.5, which demonstrates all eight compass positions. The default is NW.

   proc shewhart data=wafers;
      xchart diamtr*batch / tests= 1 to 8
                            cframe = bibg
                            cinfill = ligr
                            cconnect = red;
      inset ntests 1 / height=3 cfill=ywh header='NW' pos=nw;
      inset ntests 2 / height=3 cfill=ywh header='N ' pos=n ;
      inset ntests 3 / height=3 cfill=ywh header='NE' pos=ne;
      inset ntests 4 / height=3 cfill=ywh header='E ' pos=e ;
      inset ntests 5 / height=3 cfill=ywh header='SE' pos=se;
      inset ntests 6 / height=3 cfill=ywh header='S ' pos=s ;
      inset ntests 7 / height=3 cfill=ywh header='SW' pos=sw;
      inset ntests 8 / height=3 cfill=ywh header='W ' pos=w ;
   run;

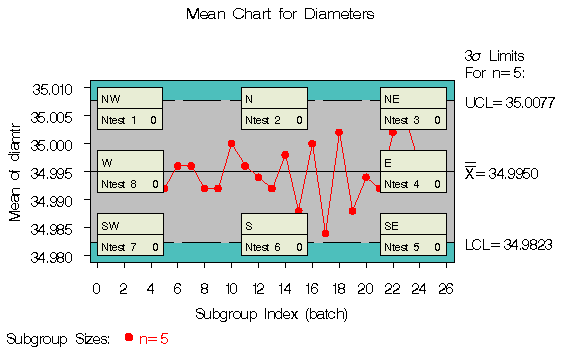

Figure 45.5: Insets Positioned Using Compass Points
