Customizing Tests with DATA Step Programs
See SHWTSC5 in the SAS/QC Sample Library
|
Occasionally, you may find it necessary to apply customized
tests that cannot be specified with the TESTS= option.
You can program your own tests as follows:
-
Run the SHEWHART procedure without the TESTS= option and save
the results in an OUTTABLE= data set.
Use the NOCHART option to suppress the display of the
chart.
-
Use a DATA step program to apply your tests to the subgroup
statistics in the OUTTABLE= data set.
If tests are signaled at certain subgroups,
save these results
as values of a flag variable
named _TESTS_, which should be a character variable of
length 8.
Recall that each observation of an OUTTABLE= data set corresponds
to a subgroup.
Assign the character i to the
i th character of _TESTS_
if the i th customized test is signaled at that subgroup
(otherwise, assign a blank character).
-
Run the procedure reading the modified data set as a TABLE=
data set.
The following example illustrates these steps by creating
an chart for the data in ASSEMBLY
(see
"Requesting Standard Tests" )
that signals a special cause of variation
if an average is greater than 2.5 standard errors
above the central line. The first step is to compute limits and save both the subgroup statistics and the limits
in an OUTTABLE= data set named FIRST.
proc shewhart history=assembly;
xchart offset * sample /
sigmas = 2.5
outtable = first
nochart ;
proc print data=first noobs;
run;
A listing of the data set FIRST is shown in
Figure 48.12.
_VAR_ |
sample |
_SIGMAS_ |
_LIMITN_ |
_SUBN_ |
_LCLX_ |
_SUBX_ |
_MEAN_ |
_UCLX_ |
_EXLIM_ |
offset |
1 |
2.5 |
5 |
5 |
18.1515 |
19.80 |
20.4733 |
22.7951 |
|
offset |
2 |
2.5 |
5 |
5 |
18.1515 |
17.16 |
20.4733 |
22.7951 |
LOWER |
offset |
3 |
2.5 |
5 |
5 |
18.1515 |
20.11 |
20.4733 |
22.7951 |
|
offset |
4 |
2.5 |
5 |
5 |
18.1515 |
20.89 |
20.4733 |
22.7951 |
|
offset |
5 |
2.5 |
5 |
5 |
18.1515 |
20.83 |
20.4733 |
22.7951 |
|
offset |
6 |
2.5 |
5 |
5 |
18.1515 |
18.87 |
20.4733 |
22.7951 |
|
offset |
7 |
2.5 |
5 |
5 |
18.1515 |
20.84 |
20.4733 |
22.7951 |
|
offset |
8 |
2.5 |
5 |
5 |
18.1515 |
23.33 |
20.4733 |
22.7951 |
UPPER |
offset |
9 |
2.5 |
5 |
5 |
18.1515 |
19.21 |
20.4733 |
22.7951 |
|
offset |
10 |
2.5 |
5 |
5 |
18.1515 |
20.48 |
20.4733 |
22.7951 |
|
offset |
11 |
2.5 |
5 |
5 |
18.1515 |
22.05 |
20.4733 |
22.7951 |
|
offset |
12 |
2.5 |
5 |
5 |
18.1515 |
20.02 |
20.4733 |
22.7951 |
|
offset |
13 |
2.5 |
5 |
5 |
18.1515 |
17.58 |
20.4733 |
22.7951 |
LOWER |
offset |
14 |
2.5 |
5 |
5 |
18.1515 |
19.11 |
20.4733 |
22.7951 |
|
offset |
15 |
2.5 |
5 |
5 |
18.1515 |
20.03 |
20.4733 |
22.7951 |
|
offset |
16 |
2.5 |
5 |
5 |
18.1515 |
20.56 |
20.4733 |
22.7951 |
|
offset |
17 |
2.5 |
5 |
5 |
18.1515 |
20.86 |
20.4733 |
22.7951 |
|
offset |
18 |
2.5 |
5 |
5 |
18.1515 |
21.10 |
20.4733 |
22.7951 |
|
offset |
19 |
2.5 |
5 |
5 |
18.1515 |
19.05 |
20.4733 |
22.7951 |
|
offset |
20 |
2.5 |
5 |
5 |
18.1515 |
21.76 |
20.4733 |
22.7951 |
|
offset |
21 |
2.5 |
5 |
5 |
18.1515 |
21.76 |
20.4733 |
22.7951 |
|
offset |
22 |
2.5 |
5 |
5 |
18.1515 |
20.54 |
20.4733 |
22.7951 |
|
offset |
23 |
2.5 |
5 |
5 |
18.1515 |
20.04 |
20.4733 |
22.7951 |
|
offset |
24 |
2.5 |
5 |
5 |
18.1515 |
19.94 |
20.4733 |
22.7951 |
|
offset |
25 |
2.5 |
5 |
5 |
18.1515 |
20.70 |
20.4733 |
22.7951 |
|
offset |
26 |
2.5 |
7 |
7 |
18.5111 |
21.40 |
20.4733 |
22.4356 |
|
offset |
27 |
2.5 |
7 |
7 |
18.5111 |
21.32 |
20.4733 |
22.4356 |
|
offset |
28 |
2.5 |
7 |
7 |
18.5111 |
20.03 |
20.4733 |
22.4356 |
|
offset |
29 |
2.5 |
7 |
7 |
18.5111 |
22.02 |
20.4733 |
22.4356 |
|
offset |
30 |
2.5 |
7 |
7 |
18.5111 |
21.32 |
20.4733 |
22.4356 |
|
|
Figure 48.12: Listing of the Data Set FIRST
The second step is to carry out the test and create the
flag variable _TESTS_.
data first;
set first;
length _tests_ $ 8;
if _subx_ > _uclx_ then substr( _tests_, 1 ) = '1';
run;
Finally, the data set FIRST is read by the SHEWHART procedure as a
TABLE= data set.
symbol v=dot c=salmon;
title 'Customized Analysis of Assembly Data';
proc shewhart table=first;
xchart offset * sample / tests = 1
testlabel1 = 'Test Signaled'
ctests = black
cconnect = salmon
cinfill = ywh
cframe = vligb;
label _subx_ = 'Average Offset in cm';
run;

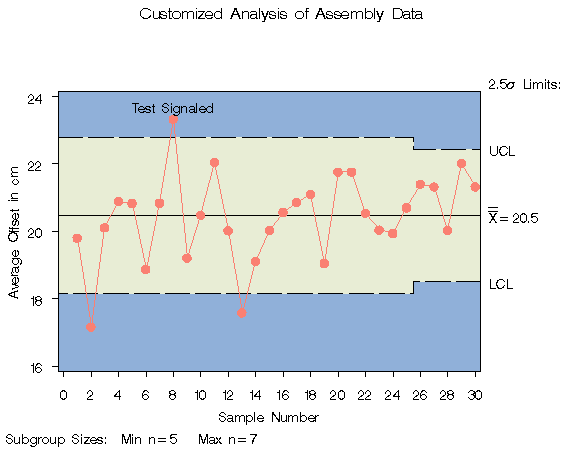

The chart is shown in Figure 48.13. Note that the variable _TESTS_
is read "as is" to flag points on the chart, and the standard
tests are not applied to the data. The option TESTS=1
specifies that a point is to be labeled
if the first character of
_TESTS_ for the corresponding subgroup is 1. The label
is specified by the TESTLABEL1= option (the default would be
Test1).
Figure 48.13: Customized Test
In general, you can simultaneously apply up to eight customized tests
with the variable _TESTS_, which is of length 8.
If two or more tests are signaled at a particular point, the
label that is displayed corresponds
to the test that appears first in the TESTS= list.
In the preceding example, the test involves only the current subgroup.
For customized tests involving patterns that span multiple subgroups,
you will find it helpful to use the LAG functions described in
SAS Language Reference: Dictionary.
Notes:
- If you provide the variable _TESTS_ in a TABLE= data set,
you must also use the TESTS= option to specify which
characters of _TESTS_ are to be checked.
- The CTESTS= and LTESTS= options specify colors and line
styles for standard patterns and may not be
applicable with customized tests.
