Positioning the Inset Using Compass Points

INSET Statement

Positioning the Inset Using Compass Points

See CAPINS2 in the SAS/QC Sample Library

You can specify the eight compass points N, NE, E, SE, S, SW, W, and NW as keywords for the POSITION= option. The following statements create the display in Figure 5.5, which demonstrates all eight compass positions. The default is NW.

   proc capability data=wire;
      histogram strength / cfill  = bigb
                           cframe = ligr;
      inset n     / cfill=ywh header='Position = NW' pos=nw;
      inset mean  / cfill=ywh header='Position = N ' pos=n ;
      inset sum   / cfill=ywh header='Position = NE' pos=ne;
      inset max   / cfill=ywh header='Position = E ' pos=e ;
      inset min   / cfill=ywh header='Position = SE' pos=se;
      inset nobs  / cfill=ywh header='Position = S ' pos=s ;
      inset range / cfill=ywh header='Position = SW' pos=sw;
      inset mode  / cfill=ywh header='Position = W ' pos=w ;
   run;

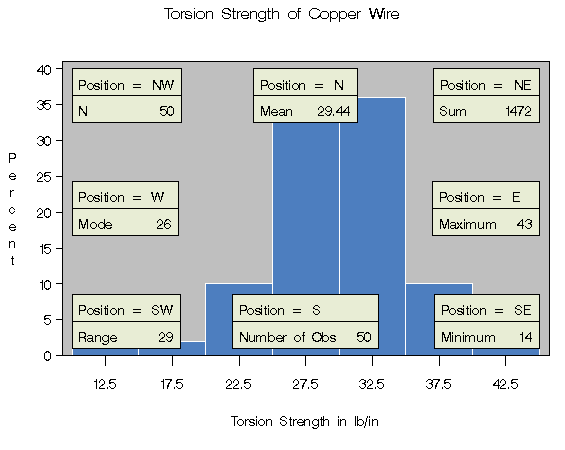

Figure 5.5: Insets Positioned Using Compass Points
