The following example demonstrates how you can use the CLUSTER procedure to compute hierarchical clusters of observations in a SAS data set.
Suppose you want to determine whether national figures for birth rates, death rates, and infant death rates can be used to determine certain types or categories of countries. You want to perform a cluster analysis to determine whether the observations can be formed into groups suggested by the data. Previous studies indicate that the clusters computed from this type of data can be elongated and elliptical. Thus, you need to perform some linear transformation on the raw data before the cluster analysis.
The following data* from Rouncefield (1995) are birth rates, death rates, and infant death rates for 97 countries. The DATA step creates the SAS data set Poverty:
data Poverty;
input Birth Death InfantDeath Country $20. @@;
datalines;
24.7 5.7 30.8 Albania 12.5 11.9 14.4 Bulgaria
13.4 11.7 11.3 Czechoslovakia 12 12.4 7.6 Former_E._Germany
11.6 13.4 14.8 Hungary 14.3 10.2 16 Poland
13.6 10.7 26.9 Romania 14 9 20.2 Yugoslavia
17.7 10 23 USSR 15.2 9.5 13.1 Byelorussia_SSR
13.4 11.6 13 Ukrainian_SSR 20.7 8.4 25.7 Argentina
46.6 18 111 Bolivia 28.6 7.9 63 Brazil
23.4 5.8 17.1 Chile 27.4 6.1 40 Columbia
32.9 7.4 63 Ecuador 28.3 7.3 56 Guyana
34.8 6.6 42 Paraguay 32.9 8.3 109.9 Peru
18 9.6 21.9 Uruguay 27.5 4.4 23.3 Venezuela
29 23.2 43 Mexico 12 10.6 7.9 Belgium
13.2 10.1 5.8 Finland 12.4 11.9 7.5 Denmark
13.6 9.4 7.4 France 11.4 11.2 7.4 Germany
10.1 9.2 11 Greece 15.1 9.1 7.5 Ireland
9.7 9.1 8.8 Italy 13.2 8.6 7.1 Netherlands
14.3 10.7 7.8 Norway 11.9 9.5 13.1 Portugal
10.7 8.2 8.1 Spain 14.5 11.1 5.6 Sweden
12.5 9.5 7.1 Switzerland 13.6 11.5 8.4 U.K.
14.9 7.4 8 Austria 9.9 6.7 4.5 Japan
14.5 7.3 7.2 Canada 16.7 8.1 9.1 U.S.A.
40.4 18.7 181.6 Afghanistan 28.4 3.8 16 Bahrain
42.5 11.5 108.1 Iran 42.6 7.8 69 Iraq
22.3 6.3 9.7 Israel 38.9 6.4 44 Jordan
26.8 2.2 15.6 Kuwait 31.7 8.7 48 Lebanon
45.6 7.8 40 Oman 42.1 7.6 71 Saudi_Arabia
29.2 8.4 76 Turkey 22.8 3.8 26 United_Arab_Emirates
42.2 15.5 119 Bangladesh 41.4 16.6 130 Cambodia
21.2 6.7 32 China 11.7 4.9 6.1 Hong_Kong
30.5 10.2 91 India 28.6 9.4 75 Indonesia
23.5 18.1 25 Korea 31.6 5.6 24 Malaysia
36.1 8.8 68 Mongolia 39.6 14.8 128 Nepal
30.3 8.1 107.7 Pakistan 33.2 7.7 45 Philippines
17.8 5.2 7.5 Singapore 21.3 6.2 19.4 Sri_Lanka
22.3 7.7 28 Thailand 31.8 9.5 64 Vietnam
35.5 8.3 74 Algeria 47.2 20.2 137 Angola
48.5 11.6 67 Botswana 46.1 14.6 73 Congo
38.8 9.5 49.4 Egypt 48.6 20.7 137 Ethiopia
39.4 16.8 103 Gabon 47.4 21.4 143 Gambia
44.4 13.1 90 Ghana 47 11.3 72 Kenya
44 9.4 82 Libya 48.3 25 130 Malawi
35.5 9.8 82 Morocco 45 18.5 141 Mozambique
44 12.1 135 Namibia 48.5 15.6 105 Nigeria
48.2 23.4 154 Sierra_Leone 50.1 20.2 132 Somalia
32.1 9.9 72 South_Africa 44.6 15.8 108 Sudan
46.8 12.5 118 Swaziland 31.1 7.3 52 Tunisia
52.2 15.6 103 Uganda 50.5 14 106 Tanzania
45.6 14.2 83 Zaire 51.1 13.7 80 Zambia
41.7 10.3 66 Zimbabwe
;
The data set Poverty contains the character variable Country and the numeric variables Birth, Death, and InfantDeath, which represent the birth rate per thousand, death rate per thousand, and infant death rate per thousand. The $20. in the INPUT statement specifies that the variable Country is a character variable with a length of 20. The double trailing at sign (@@) in the INPUT statement holds the input line for further iterations of the DATA step, specifying that observations are input from each line until all values are read.
Because the variables in the data set do not have equal variance, you must perform some form of scaling or transformation. One method is to standardize the variables to mean zero and variance one. However, when you suspect that the data contain elliptical clusters, you can use the ACECLUS procedure to transform the data such that the resulting within-cluster covariance matrix is spherical. The procedure obtains approximate estimates of the pooled within-cluster covariance matrix and then computes canonical variables to be used in subsequent analyses.
The following statements perform the ACECLUS transformation using the SAS data set Poverty. The OUT= option creates an output SAS data set called Ace to contain the canonical variable scores.
proc aceclus data=Poverty out=Ace p=.03 noprint;
var Birth Death InfantDeath;
run;
The P= option specifies that approximately three percent of the pairs are included in the estimation of the within-cluster covariance matrix. The NOPRINT option suppresses the display of the output. The VAR statement specifies that the variables Birth, Death, and InfantDeath are used in computing the canonical variables.
The following statements invoke the CLUSTER procedure, using the SAS data set ACE created in the previous PROC ACECLUS run.
proc cluster data=Ace outtree=Tree method=ward
ccc pseudo print=15;
var can1 can2 can3 ;
id Country;
run;
The OUTTREE= option creates an output SAS data set called Tree that can be used by the TREE procedure to draw a tree diagram. Ward's minimum-variance clustering method is specified by the METHOD= option. The CCC option displays the cubic clustering criterion, and the PSEUDO option displays pseudo F and t2 statistics. Only the last 15 generations of the cluster history are displayed, as defined by the PRINT= option.
The VAR statement specifies that the canonical variables computed in the ACECLUS procedure are used in the cluster analysis. The ID statement specifies that the variable Country should be added to the Tree output data set.
The results of this analysis are displayed in the following figures.
PROC CLUSTER first displays the table of eigenvalues of the covariance matrix for the three canonical variables (Figure 23.1). The first two columns list each eigenvalue and the difference between the eigenvalue and its successor. The last two columns display the individual and cumulative proportion of variation associated with each eigenvalue.
As displayed in the last column, the first two canonical variables account for about 93% of the total variation. Figure 23.1 also displays the root mean square of the total sample standard deviation and the root mean square distance between observations.
Figure 23.2 displays the last 15 generations of the cluster history. First listed are the number of clusters and the names of the clusters joined. The observations are identified either by the ID value or by CLn, where n is the number of the cluster. Next, PROC CLUSTER displays the number of observations in the new cluster and the semipartial R2. The latter value represents the decrease in the proportion of variance accounted for by joining the two clusters.
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Next listed is the squared multiple correlation, R2, which is the proportion of variance accounted for by the clusters. Figure 23.2 shows that, when the data are grouped into three clusters, the proportion of variance accounted for by the clusters (R2) is about 77%. The approximate expected value of R2 is given in the column labeled "ERSQ."
The next three columns display the values of the cubic clustering criterion (CCC), pseudo F (PSF), and t2 (PST2) statistics. These statistics are useful in determining the number of clusters in the data.
Values of the cubic clustering criterion greater than 2 or 3 indicate good clusters; values between 0 and 2 indicate potential clusters, but they should be considered with caution; large negative values can indicate outliers. In Figure 23.2, there is a local peak of the CCC when the number of clusters is 3. The CCC drops at 4 clusters and then steadily increases, levelling off at 11 clusters.
Another method of judging the number of clusters in a data set is to look at the pseudo F statistic (PSF). Relatively large values indicate a stopping point. Reading down the PSF column, you can see that this method indicates a possible stopping point at 11 clusters and another at 3 clusters.
A general rule for interpreting the values of the pseudo t2 statistic is to move down the column until you find the first value markedly larger than the previous value and move back up the column by one cluster. Moving down the PST2 column, you can see possible clustering levels at 11 clusters, 6 clusters, 3 clusters, and 2 clusters.
The final column in Figure 23.2 lists ties for minimum distance; a blank value indicates the absence of a tie.
These statistics indicate that the data can be clustered into 11 clusters or 3 clusters. The following statements examine the results of clustering the data into 3 clusters.
A graphical view of the clustering process can often be helpful in interpreting the clusters. The following statements use the TREE procedure to produce a tree diagram of the clusters:
goptions vsize=8in htext=1pct htitle=2.5pct;
axis1 order=(0 to 1 by 0.2);
proc tree data=Tree out=New nclusters=3
graphics haxis=axis1 horizontal;
height _rsq_;
copy can1 can2 ;
id country;
run;
The AXIS1 statement defines axis parameters that are used in the TREE procedure. The ORDER= option specifies the data values in the order in which they should appear on the axis.
The preceding statements use the SAS data set Tree as input. The OUT= option creates an output SAS data set named New to contain information on cluster membership. The NCLUSTERS= option specifies the number of clusters desired in the data set New.
The GRAPHICS option directs the procedure to use high resolution graphics. The HAXIS= option specifies AXIS1 to customize the appearance of the horizontal axis. Use this option only when the GRAPHICS option is in effect. The HORIZONTAL option orients the tree diagram horizontally. The HEIGHT statement specifies the variable _RSQ_ (R2) as the height variable.
The COPY statement copies the canonical variables can1 and can2 (computed in the ACECLUS procedure) into the output SAS data set New. Thus, the SAS output data set New contains information for three clusters and the first two of the original canonical variables.

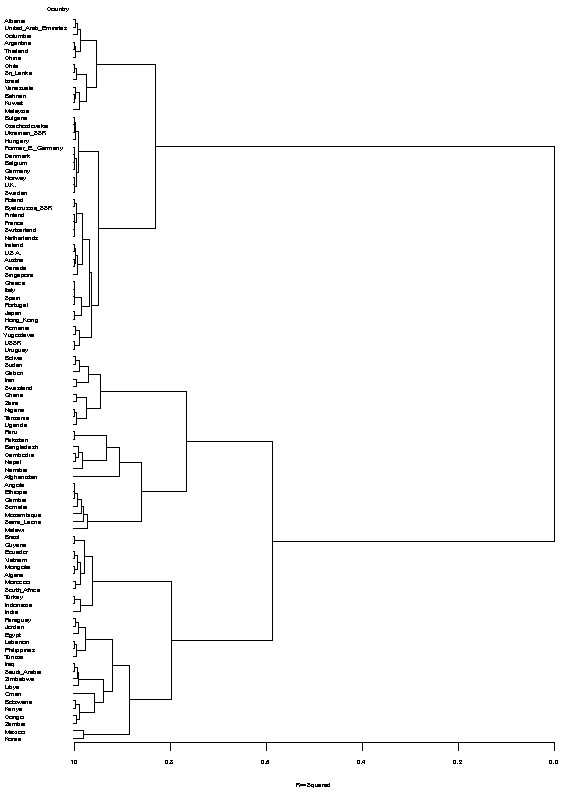

Figure 23.3 displays the tree diagram. The figure provides a graphical view of the information in Figure 23.2. As the number of branches grows to the left from the root, the R2 approaches 1; the first three clusters (branches of the tree) account for over half of the variation (about 77%, from Figure 23.2). In other words, only three clusters are necessary to explain over three-fourths of the variation.
|
The following statements invoke the GPLOT procedure on the SAS data set New.
legend1 frame cframe=ligr cborder=black
position=center value=(justify=center);
axis1 label=(angle=90 rotate=0) minor=none order=(-10 to 20 by 5);
axis2 minor=none order=(-10 to 20 by 5);
proc gplot data=New ;
plot can2*can1=cluster/frame cframe=ligr
legend=legend1 vaxis=axis1 haxis=axis2;
run;
The PLOT statement requests a plot of the two canonical variables, using the value of the variable cluster as the identification variable.

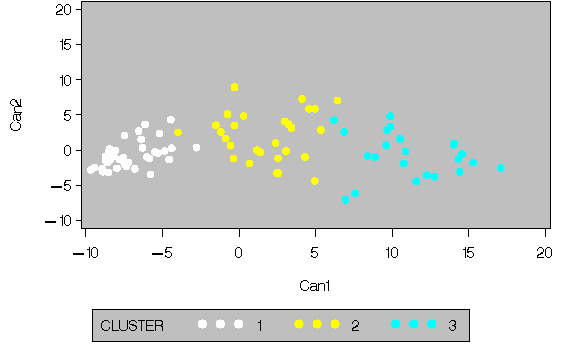

Figure 23.4 displays the separation of the clusters when three clusters are calculated. The plotting symbol is the cluster number.
|
The statistics in Figure 23.2, the tree diagram in Figure 23.3, and the plot of the canonical variables assist in the determination of clusters in the data. There seems to be reasonable separation in the clusters. However, you must use this information, along with experience and knowledge of the field, to help in deciding the correct number of clusters.
|
