Example 23.3: Cluster Analysis of Fisher Iris Data

The iris data published by Fisher (1936) have been widely used for examples in discriminant analysis and cluster analysis. The sepal length, sepal width, petal length, and petal width are measured in millimeters on fifty iris specimens from each of three species, Iris setosa, I. versicolor, and I. virginica. Mezzich and Solomon (1980) discuss a variety of cluster analyses of the iris data.

This example analyzes the iris data by Ward's method and two-stage density linkage and then illustrates how the FASTCLUS procedure can be used in combination with PROC CLUSTER to analyze large data sets.

   title 'Cluster Analysis of Fisher (1936) Iris Data';
   proc format;
      value specname
         1='Setosa    '
         2='Versicolor'
         3='Virginica ';
   run;

   data iris;
      input SepalLength SepalWidth PetalLength PetalWidth Species @@;
      format Species specname.;
      label SepalLength='Sepal Length in mm.'
            SepalWidth ='Sepal Width in mm.'
            PetalLength='Petal Length in mm.'
            PetalWidth ='Petal Width in mm.';
      symbol = put(species, specname10.);
      datalines;
   50 33 14 02 1 64 28 56 22 3 65 28 46 15 2 67 31 56 24 3
   63 28 51 15 3 46 34 14 03 1 69 31 51 23 3 62 22 45 15 2
   59 32 48 18 2 46 36 10 02 1 61 30 46 14 2 60 27 51 16 2
   65 30 52 20 3 56 25 39 11 2 65 30 55 18 3 58 27 51 19 3
   68 32 59 23 3 51 33 17 05 1 57 28 45 13 2 62 34 54 23 3
   77 38 67 22 3 63 33 47 16 2 67 33 57 25 3 76 30 66 21 3
   49 25 45 17 3 55 35 13 02 1 67 30 52 23 3 70 32 47 14 2
   64 32 45 15 2 61 28 40 13 2 48 31 16 02 1 59 30 51 18 3
   55 24 38 11 2 63 25 50 19 3 64 32 53 23 3 52 34 14 02 1
   49 36 14 01 1 54 30 45 15 2 79 38 64 20 3 44 32 13 02 1
   67 33 57 21 3 50 35 16 06 1 58 26 40 12 2 44 30 13 02 1
   77 28 67 20 3 63 27 49 18 3 47 32 16 02 1 55 26 44 12 2
   50 23 33 10 2 72 32 60 18 3 48 30 14 03 1 51 38 16 02 1
   61 30 49 18 3 48 34 19 02 1 50 30 16 02 1 50 32 12 02 1
   61 26 56 14 3 64 28 56 21 3 43 30 11 01 1 58 40 12 02 1
   51 38 19 04 1 67 31 44 14 2 62 28 48 18 3 49 30 14 02 1
   51 35 14 02 1 56 30 45 15 2 58 27 41 10 2 50 34 16 04 1
   46 32 14 02 1 60 29 45 15 2 57 26 35 10 2 57 44 15 04 1
   50 36 14 02 1 77 30 61 23 3 63 34 56 24 3 58 27 51 19 3
   57 29 42 13 2 72 30 58 16 3 54 34 15 04 1 52 41 15 01 1
   71 30 59 21 3 64 31 55 18 3 60 30 48 18 3 63 29 56 18 3
   49 24 33 10 2 56 27 42 13 2 57 30 42 12 2 55 42 14 02 1
   49 31 15 02 1 77 26 69 23 3 60 22 50 15 3 54 39 17 04 1
   66 29 46 13 2 52 27 39 14 2 60 34 45 16 2 50 34 15 02 1
   44 29 14 02 1 50 20 35 10 2 55 24 37 10 2 58 27 39 12 2
   47 32 13 02 1 46 31 15 02 1 69 32 57 23 3 62 29 43 13 2
   74 28 61 19 3 59 30 42 15 2 51 34 15 02 1 50 35 13 03 1
   56 28 49 20 3 60 22 40 10 2 73 29 63 18 3 67 25 58 18 3
   49 31 15 01 1 67 31 47 15 2 63 23 44 13 2 54 37 15 02 1
   56 30 41 13 2 63 25 49 15 2 61 28 47 12 2 64 29 43 13 2
   51 25 30 11 2 57 28 41 13 2 65 30 58 22 3 69 31 54 21 3
   54 39 13 04 1 51 35 14 03 1 72 36 61 25 3 65 32 51 20 3
   61 29 47 14 2 56 29 36 13 2 69 31 49 15 2 64 27 53 19 3
   68 30 55 21 3 55 25 40 13 2 48 34 16 02 1 48 30 14 01 1
   45 23 13 03 1 57 25 50 20 3 57 38 17 03 1 51 38 15 03 1
   55 23 40 13 2 66 30 44 14 2 68 28 48 14 2 54 34 17 02 1
   51 37 15 04 1 52 35 15 02 1 58 28 51 24 3 67 30 50 17 2
   63 33 60 25 3 53 37 15 02 1
   ;

The following macro, SHOW, is used in the subsequent analyses to display cluster results. It invokes the FREQ procedure to crosstabulate clusters and species. The CANDISC procedure computes canonical variables for discriminating among the clusters, and the first two canonical variables are plotted to show cluster membership. See Chapter 21, "The CANDISC Procedure," for a canonical discriminant analysis of the iris species.

   %macro show;
   proc freq;
      tables cluster*species;
   run;
   proc candisc noprint out=can;
      class cluster;
      var petal: sepal:;
   run;
   legend1 frame cframe=ligr cborder=black
           position=center value=(justify=center);
   axis1 label=(angle=90 rotate=0) minor=none;
   axis2 minor=none;
   proc gplot;
      plot can2*can1=cluster /
         frame cframe=ligr legend=legend1 vaxis=axis1 haxis=axis2;
   run;
   %mend;

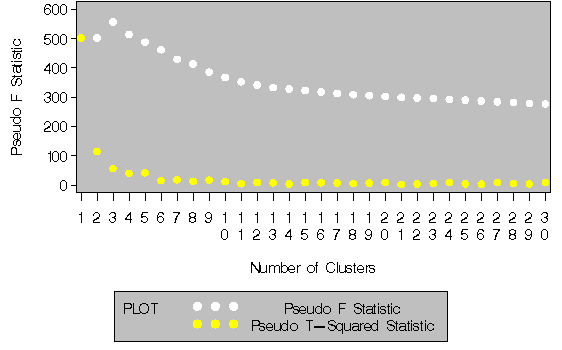

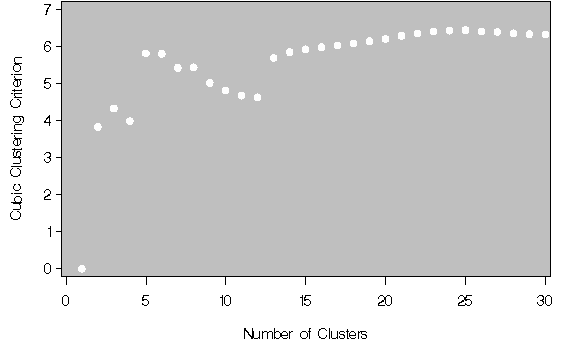

The first analysis clusters the iris data by Ward's method and plots the CCC and pseudo F and t² statistics. The CCC has a local peak at 3 clusters but a higher peak at 5 clusters. The pseudo F statistic indicates 3 clusters, while the pseudo t² statistic suggests 3 or 6 clusters. For large numbers of clusters, Version 6 of the SAS System produces somewhat different results than previous versions of PROC CLUSTER. This is due to changes in the treatment of ties. Results are identical for 5 or fewer clusters.

The TREE procedure creates an output data set containing the 3-cluster partition for use by the SHOW macro. The FREQ procedure reveals 16 misclassifications. The results are shown in Output 23.3.1.

   title2 'By Ward''s Method';
   proc cluster data=iris method=ward print=15 ccc pseudo;
      var petal: sepal:;
      copy species;
   run;
   legend1 frame cframe=ligr cborder=black
           position=center value=(justify=center);
   axis1 label=(angle=90 rotate=0) minor=none order=(0 to 600 by 100);
   axis2 minor=none order=(1 to 30 by 1);
   axis3 label=(angle=90 rotate=0) minor=none order=(0 to 7 by 1);

   proc gplot;
      plot _ccc_*_ncl_  /
         frame cframe=ligr legend=legend1 vaxis=axis3 haxis=axis2;
      plot _psf_*_ncl_  _pst2_*_ncl_  /overlay
         frame cframe=ligr legend=legend1 vaxis=axis1 haxis=axis2;
   run;

   proc tree noprint ncl=3 out=out;
      copy petal: sepal: species;
   run;

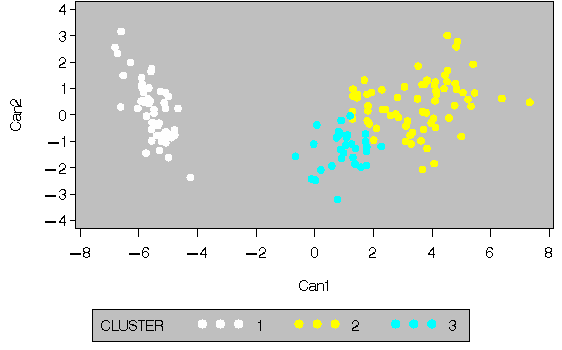

   %show;

However, the ACECLUS procedure can be used to reveal 3 modes. This analysis uses K=8 to produce 3 clusters for comparison with other analyses. There are only 6 misclassifications. The results are shown in Output 23.3.2.

   title2 'By Two-Stage Density Linkage';
   proc cluster data=iris method=twostage k=8 print=15 ccc pseudo;
      var petal: sepal:;
      copy species;
   run;

   proc tree noprint ncl=3 out=out;
      copy petal: sepal: species;
   run;

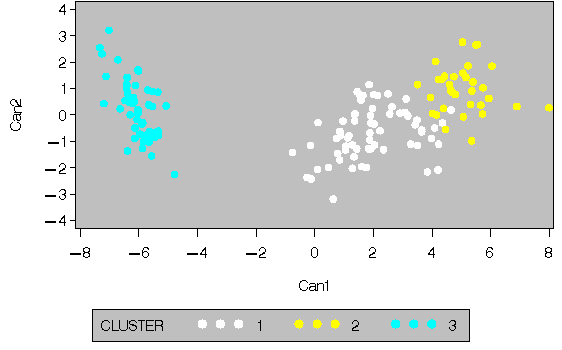

   %show;

FASTCLUS automatically creates variables _FREQ_ and _RMSSTD_ in the MEAN= output data set. These variables are then automatically used by PROC CLUSTER in the computation of various statistics.

The iris data are used to illustrate the process of clustering clusters. In the preliminary analysis, PROC FASTCLUS produces ten clusters, which are then crosstabulated with species. The data set containing the preliminary clusters is sorted in preparation for later merges. The results are shown in Output 23.3.3.

   title2 'Preliminary Analysis by FASTCLUS';
   proc fastclus data=iris summary maxc=10 maxiter=99 converge=0
                 mean=mean out=prelim cluster=preclus;
      var petal: sepal:;
   run;

   proc freq;
      tables preclus*species;
   run;

   proc sort data=prelim;
      by preclus;
   run;

   %macro clus(method);
   proc cluster data=mean method=&method ccc pseudo;
      var petal: sepal:;
      copy preclus;
   run;
   proc tree noprint ncl=3 out=out;
      copy petal: sepal: preclus;
   run;
   proc sort data=out;
      by preclus;
   run;
   data clus;
      merge prelim out;
      by preclus;
   run;

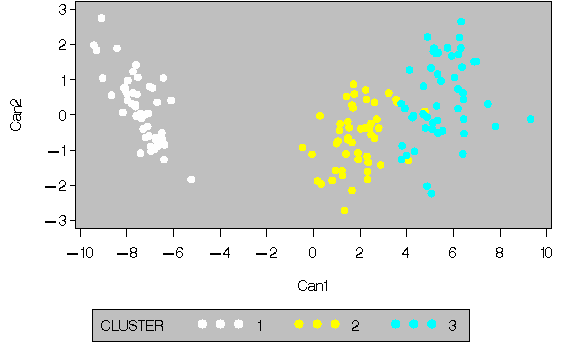

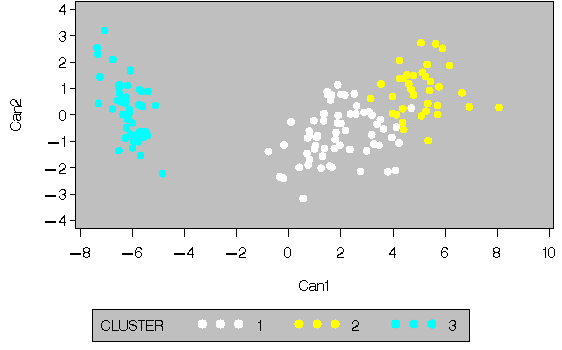

   %show;
   %mend;

   title2 'Clustering Clusters by Ward''s Method';
   %clus(ward);

   title2 'Clustering Clusters by Wong''s Hybrid Method';
   %clus(twostage hybrid);
