Example 64.4: Large Data Set Application

The TPSPLINE Procedure

Example 64.4: Large Data Set Application

The following example illustrates how you can use the D= option to decrease the computation time needed by the TPSPLINE procedure. Note that, while the D= option can be helpful in decreasing computation time for large data sets, it may produce unexpected results when used with small data sets.

The following statements generate the data set large:

   data large;
      do x=-5 to 5 by 0.02;
         y=5*sin(3*x)+1*rannor(57391);
         output;
      end;
   run;

The data set large contains 501 observations with one independent variable x and one dependent variable y. The following statements invoke PROC TPSPLINE to produce a thin-plate smoothing spline estimate and the associated 99% confidence interval. The output statistics are saved in the data set fit1.

   proc tpspline data=large;
      model y  =(x) /lambda=(-5 to -1 by 0.2) alpha=0.01;
      output out=fit1 pred LCLM UCLM;
   run;

The results from this MODEL statement are displayed in Output 64.4.1.

Output 64.4.1: Output from PROC TPSPLINE without the D= Option

The TPSPLINE Procedure

Dependent Variable: y

Summary of Input Data Set
Number of Non-Missing Observations	501
Number of Missing Observations	0
Unique Smoothing Design Points	501

Summary of Final Model
Number of Regression Variables	0
Number of Smoothing Variables	1
Order of Derivative in the Penalty	2
Dimension of Polynomial Space	2

GCV Function
*log10(nLambda)**	GCV
-5.000000	1.258653
-4.800000	1.228743
-4.600000	1.205835
-4.400000	1.188371
-4.200000	1.174644
-4.000000	1.163102
-3.800000	1.152627
-3.600000	1.142590
-3.400000	1.132700
-3.200000	1.122789
-3.000000	1.112755
-2.800000	1.102642
-2.600000	1.092769
-2.400000	1.083779
-2.200000	1.076636
-2.000000	1.072763	*
-1.800000	1.074636
-1.600000	1.087152
-1.400000	1.120339
-1.200000	1.194023
-1.000000	1.344213

Note: * indicates minimum GCV value.

The TPSPLINE Procedure

Dependent Variable: y

Summary Statistics of Final Estimation
*log10(nLambda)**	-1.948303
Smoothing Penalty	9953.706749
Residual SS	475.098382
Tr(I-A)	471.086071
Model DF	29.913929
Standard Deviation	1.004250

The following statements specify an identical model, but with the additional specification of the D= option. The estimates are obtained by treating nearby points as replicates.

   proc tpspline data=large;
      model y  =(x) /lambda=(-5 to -1 by 0.2) d=0.05 alpha=0.01;
      output out=fit2 pred LCLM UCLM;
   run;

The output is displayed in Output 64.4.2.

Output 64.4.2: Output from PROC TPSPLINE with the D= Option

The TPSPLINE Procedure

Dependent Variable: y

Summary of Input Data Set
Number of Non-Missing Observations	501
Number of Missing Observations	0
Unique Smoothing Design Points	251

Summary of Final Model
Number of Regression Variables	0
Number of Smoothing Variables	1
Order of Derivative in the Penalty	2
Dimension of Polynomial Space	2

GCV Function
*log10(nLambda)**	GCV
-5.000000	1.306536
-4.800000	1.261692
-4.600000	1.226881
-4.400000	1.200060
-4.200000	1.179284
-4.000000	1.162776
-3.800000	1.149072
-3.600000	1.137120
-3.400000	1.126220
-3.200000	1.115884
-3.000000	1.105766
-2.800000	1.095730
-2.600000	1.085972
-2.400000	1.077066
-2.200000	1.069954
-2.000000	1.066076	*
-1.800000	1.067929
-1.600000	1.080419
-1.400000	1.113564
-1.200000	1.187172
-1.000000	1.337252

Note: * indicates minimum GCV value.

The TPSPLINE Procedure

Dependent Variable: y

Summary Statistics of Final Estimation
*log10(nLambda)**	-1.947711
Smoothing Penalty	9943.561350
Residual SS	472.142409
Tr(I-A)	471.090128
Model DF	29.909872
Standard Deviation	1.001116

The difference between the two estimates is minimal. However, the CPU time for the second MODEL statement is only about 1/8 of the CPU time used in the first model fit.

The following statements produce a plot for comparison of the two estimates:

   data fit2;
      set fit2;
      P1_y     = P_y;
      LCLM1_y  = LCLM_y;
      UCLM1_y  = UCLM_y;
      drop P_y
           LCLM_y
           UCLM_y;

   proc sort data=fit1;
      by x y;
   proc sort data=fit2;
      by x y;

   data comp;
      merge fit1 fit2;
         by x y;
      label p1_y   ="Yhat1" p_y="Yhat0"
            lclm_y ="Lower CL"
            uclm_y ="Upper CL";

   symbol1  i=join v=none ;
   symbol2  i=join v=none ;
   symbol3  i=join v=none color=cyan;
   symbol4  i=join v=none color=cyan;

   title 'Comparison of Two Estimates';
   title2 'with and without the D= Option';

   proc gplot data=comp;
      plot P_y*x=1
           P1_y*x=2
           LCLM_y*x=4
           UCLM_y*x=4/overlay     legend=legend1
                      vaxis=axis1 haxis=axis2
                      frame       cframe=ligr;
   run;

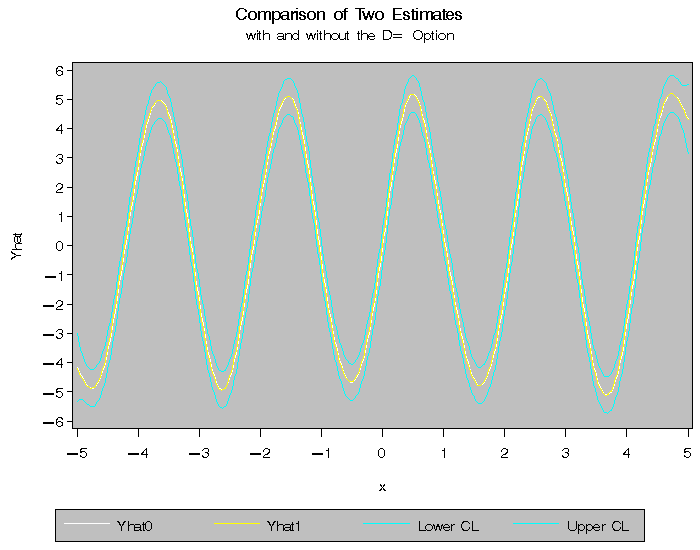

The estimates fit1 and fit2 are displayed in Output 64.4.3 with the 99% confidence interval from the fit1 output data set.

Output 64.4.3: Comparison of Two Fits with and without the D= Option
