Example 10.2: BLS Consumer Price Index Surveys

The DATASOURCE Procedure

Example 10.2: BLS Consumer Price Index Surveys

This example compares changes of the prices in medical care services with respect to different regions for all urban consumers (SURVEY='CU') since May, 1975. The source of data is the Consumer Price Index Surveys distributed by the U.S. Department of Labor, Bureau of Labor Statistics.

An initial run of PROC DATASOURCE gives the descriptive information on different regions available (the OUTBY= data set), as well as the series variable name corresponding to medical care services (the OUTCONT= data set).

   filename datafile 'host-specific-file-name' <host-options>;
   proc datasource filetype=blscpi interval=month
                   outby=cpikey outcont=cpicont;
      where survey='CU';
   run;

   title1 'Partial Listing of the OUTBY= Data Set';
   proc print data=cpikey noobs;
      where upcase(areaname) in
            ('NORTHEAST','NORTH CENTRAL','SOUTH','WEST');
   run;

   title1 'Partial Listing of the OUTCONT= Data Set';
   proc print data=cpicont noobs;
      where index( upcase(label), 'MEDICAL CARE' );
   run;

The OUTBY= data set in Output 10.2.1 lists all cross sections available for the four geographical regions: Northeast (AREA='0100'), North Central (AREA='0200'), Southern (AREA='0300'), and Western (AREA='0400'). The OUTCONT= data set gives the variable names for medical care related series.

Output 10.2.1: Partial Listings of the OUTBY= and OUTCONT= Data Sets

Partial Listing of the OUTBY= Data Set

survey	season	area	basptype	baseper	st_date	end_date	ntime	nobs	nseries	nselect	surtitle	areaname
CU	U	0100	A	DECEMBER 1977=100	DEC1966	JUL1990	284	284	1	1	ALL URBAN CONSUM	NORTHEAST
CU	U	0100	S	1982-84=100	DEC1966	JUL1990	284	284	90	90	ALL URBAN CONSUM	NORTHEAST
CU	U	0100	S	DECEMBER 1982=100	DEC1982	JUL1990	92	92	7	7	ALL URBAN CONSUM	NORTHEAST
CU	U	0100	S	DECEMBER 1986=100	DEC1986	JUL1990	44	44	1	1	ALL URBAN CONSUM	NORTHEAST
CU	U	0200	A	DECEMBER 1977=100	DEC1966	JUL1990	284	284	1	1	ALL URBAN CONSUM	NORTH CENTRAL
CU	U	0200	S	1982-84=100	DEC1966	JUL1990	284	284	90	90	ALL URBAN CONSUM	NORTH CENTRAL
CU	U	0200	S	DECEMBER 1982=100	DEC1982	JUL1990	92	92	7	7	ALL URBAN CONSUM	NORTH CENTRAL
CU	U	0200	S	DECEMBER 1986=100	DEC1986	JUL1990	44	44	1	1	ALL URBAN CONSUM	NORTH CENTRAL
CU	U	0300	A	DECEMBER 1977=100	DEC1966	JUL1990	284	284	1	1	ALL URBAN CONSUM	SOUTH
CU	U	0300	S	1982-84=100	DEC1966	JUL1990	284	284	90	90	ALL URBAN CONSUM	SOUTH
CU	U	0300	S	DECEMBER 1982=100	DEC1982	JUL1990	92	92	7	7	ALL URBAN CONSUM	SOUTH
CU	U	0300	S	DECEMBER 1986=100	DEC1986	JUL1990	44	44	1	1	ALL URBAN CONSUM	SOUTH
CU	U	0400	A	DECEMBER 1977=100	DEC1966	JUL1990	284	284	1	1	ALL URBAN CONSUM	WEST
CU	U	0400	S	1982-84=100	DEC1966	JUL1990	284	284	90	90	ALL URBAN CONSUM	WEST
CU	U	0400	S	DECEMBER 1982=100	DEC1982	JUL1990	92	92	7	7	ALL URBAN CONSUM	WEST
CU	U	0400	S	DECEMBER 1986=100	DEC1986	JUL1990	44	44	1	1	ALL URBAN CONSUM	WEST

Partial Listing of the OUTCONT= Data Set

name	selected	type	length	varnum	label	format	formatl	formatd
ASL5	1	1	5	.	SERVICES LESS MEDICAL CARE		0	0
A0L5	1	1	5	.	ALL ITEMS LESS MEDICAL CARE		0	0
A5	1	1	5	.	MEDICAL CARE		0	0
A51	1	1	5	.	MEDICAL CARE COMMODITIES		0	0
A512	1	1	5	.	MEDICAL CARE SERVICES		0	0

The following statements make use of this information to extract the data for A512 and descriptive information on cross sections containing A512:

   proc format;
      value $areafmt '0100' = 'Northeast Region'
                     '0200' = 'North Central Region'
                     '0300' = 'Southern Region'
                     '0400' = 'Western Region';
   run;

   filename datafile 'host-specific-file-name' <host-options>;
   proc datasource filetype=blscpi interval=month
                   out=medical outall=medinfo;
      where survey='CU' and area in ( '0100','0200','0300','0400' );
      keep a512;
      range  from 1980:5;
      format area $areafmt.;
      rename a512=medcare;
   run;

   title1 'Information on Medical Care Service';
   proc print data=medinfo;
   run;

Output 10.2.2: Printout of the OUTALL= Data Set

Information on Medical Care Service

Obs	survey	season	area	basptype	baseper	length	byselect	name	kept	selected	type	varnum	blknum	label	format	formatl	formatd	st_date	end_date	ntime	nobs	ninrange	surtitle	areaname	s_code	units	ndec
1	CU	U	Northeast Region	S	1982-84=100	5	1	MEDCAR	1	1	1	7	3479	MEDICAL CARE SERVICES		0	0	DEC1977	JUL1990	152	152	123	ALL URBAN CONSUM	NORTHEAST	CUUR0100SA512		1
2	CU	U	North Central Region	S	1982-84=100	5	1	MEDCAR	1	1	1	7	3578	MEDICAL CARE SERVICES		0	0	DEC1977	JUL1990	152	152	123	ALL URBAN CONSUM	NORTH CENTRAL	CUUR0200SA512		1
3	CU	U	Southern Region	S	1982-84=100	5	1	MEDCAR	1	1	1	7	3677	MEDICAL CARE SERVICES		0	0	DEC1977	JUL1990	152	152	123	ALL URBAN CONSUM	SOUTH	CUUR0300SA512		1
4	CU	U	Western Region	S	1982-84=100	5	1	MEDCAR	1	1	1	7	3776	MEDICAL CARE SERVICES		0	0	DEC1977	JUL1990	152	152	123	ALL URBAN CONSUM	WEST	CUUR0400SA512		1

Note that only the cross sections with BASEPER='1982-84=100' are listed in the OUTALL= data set (see Output 10.2.2). This is because only those cross sections contain data for MEDCARE.

The OUTALL= data set indicates that data values are stored with one decimal place (see the NDEC variable). Therefore, they need to be rescaled, as follows:

   data medical;
      set medical;
      medcare = medcare * 0.1;
   run;

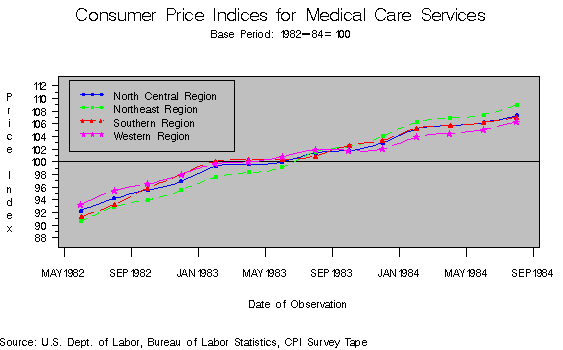

The variation of MEDCARE against DATE with respect to different geographic regions can be demonstrated graphically, as follows:

Output 10.2.3: Plot of Time Series in the OUT= Data Set for FILETYPE=BLSCPI

This example illustrates the following features:

Descriptive information needed to write KEEP and WHERE statements can be obtained with an initial run of the DATASOURCE procedure.
The OUTCONT= and OUTALL= data sets may contain information on how data values are stored, such as the precision, the units, and so on.
The OUTCONT= and OUTALL= data sets report the new series names assigned by the RENAME statement, not the old names (see the NAME variable in Output 10.2.2).
You can use PROC FORMAT to define formats for series or BY variables to enhance your output. Note that PROC DATASOURCE associated a permanent format, $AREAFMT., with the BY variable AREA. As a result, the formatted values are displayed in the printout of the OUTALL=MEDINFO data set (see Output 10.2.2) and in the legend created by PROC GPLOT.
The base period for all the geographical areas is the same (BASEPER='1982-84=100') as indicated by the intersections of plots with the horizontal reference line drawn at 100. This makes comparisons meaningful.
