Using Predictor Variables

Seasonal Dummies

A "Seasonal Dummies" predictor is a special feature that adds to the model seasonal indicator or "dummy" variables to serve as regressors for seasonal effects.

From the Develop Models window, select Fit ARIMA Model. From the ARIMA Model Specification window, select Add and then select Seasonal Dummies from the menu (shown in Display 27.1).

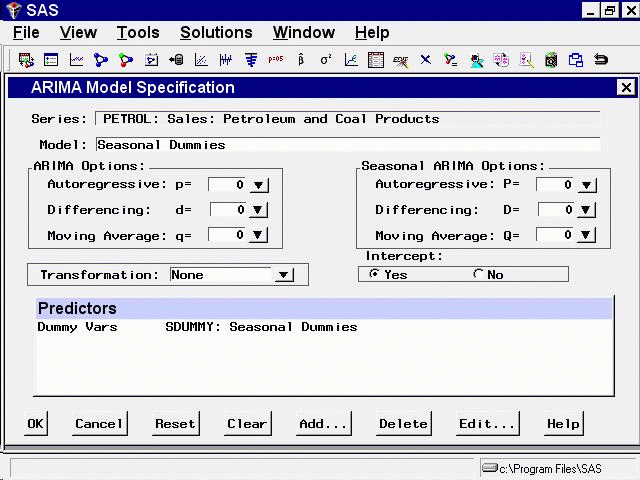

A Seasonal Dummies input is added to the Predictors list, as shown in Display 27.24.

Display 27.24: Seasonal Dummies Specified

Select the OK button. A model consisting of an intercept and 11 seasonal dummy variables is fit and added to the model list in the Develop Models window. This is effectively a mean model with a separate mean for each month.

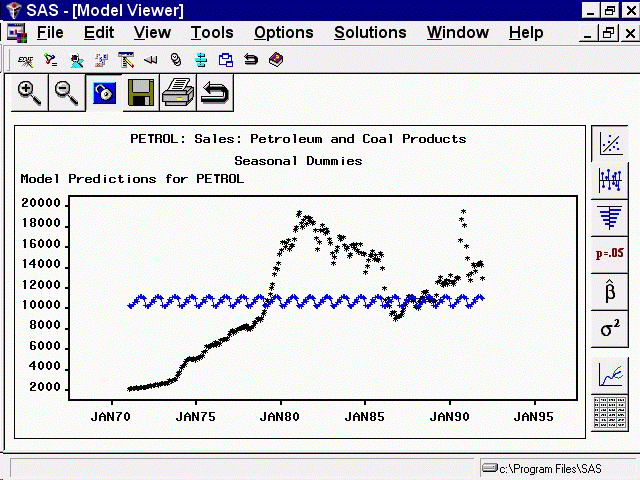

Now return to the Model Viewer, which displays a plot of the model predictions and actual series values, as shown in Display 27.25. This is obviously a poor model for this series, but it serves to illustrate how seasonal dummy variables work.

Display 27.25: Seasonal Dummies Model

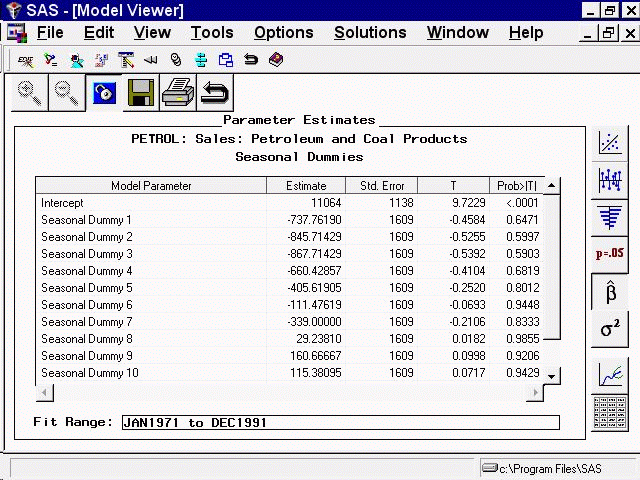

Now select the parameter estimates icon, the fifth from the top on the vertical tool bar. This displays the Parameter Estimates table, as shown in Display 27.26.

Display 27.26: Parameter Estimates for Seasonal Dummies Model

Since the data for this example are monthly, the Seasonal Dummies option added 11 seasonal dummy variables. These include a dummy regressor variable that is 1.0 for January and 0 for other months, a regressor that is 1.0 only for February, and so forth through November.

Because the model includes an intercept, no dummy variable is added for December. The December effect is measured by the intercept, while the effect of other seasons is measured by the difference between the intercept and the estimated regression coefficient for the season's dummy variable.

The same principle applies for other data frequencies: the "Seasonal Dummy 1" parameter will always refer to the first period in the seasonal cycle, and, when an intercept is present in the model, there will be no seasonal dummy parameter for the last period in the seasonal cycle.
