Example 5.13: Modifying Network Layout

The NETDRAW Procedure

Example 5.13: Modifying Network Layout

This example uses the SURVEY project described in Chapter 1, "Introduction to Project Management," to illustrate how you can modify the default layout of the network. The data set SURVEY contains the project information. PROC NETDRAW is invoked with the GRAPHICS option. The network diagram is shown in Output 5.13.1.

data survey;
   input id        $ 1-20
         activity  $ 22-29
         duration
         succ1     $ 34-41
         succ2     $ 43-50
         succ3     $ 52-58
         phase     $ 60-68;
   datalines;
Plan Survey          plan sur 4  hire per design q         Plan
Hire Personnel       hire per 5  trn per                   Prepare
Design Questionnaire design q 3  trn per  select h print q Plan
Train Personnel      trn per  3  cond sur                  Prepare
Select Households    select h 3  cond sur                  Prepare
Print Questionnaire  print q  4  cond sur                  Prepare
Conduct Survey       cond sur 10 analyze                   Implement
Analyze Results      analyze  6                            Implement
;

pattern1 v=s c=green;
title f=swiss j=l ' Project: Market Survey';
title2 f=swiss j=l h=1.5 ' Changing Node Positions';
footnote f=swiss j=r 'Default Layout ';
proc netdraw data=survey graphics out=network;
   actnet / act=activity
            succ=(succ1-succ3)
            id=(id)
            nodefid
            nolabel
            carcs = blue
            ctext  = white
            coutline=red
            font=swiss
            centerid
            boxht = 3
            htext=2
            pcompress
            separatearcs
            ybetween=8;
   run;

title2 'NETWORK Output Data Set';
proc print data=network;
   run;

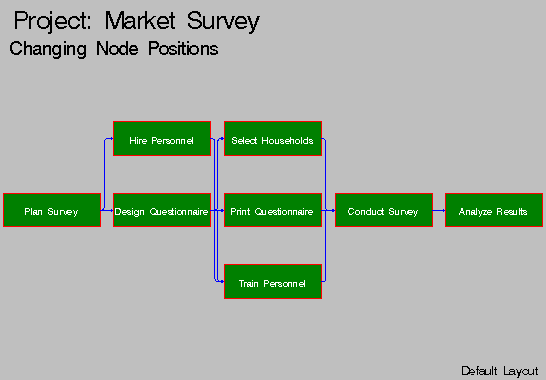

Output 5.13.1: Default Network Layout of SURVEY Project

The Layout data set produced by PROC NETDRAW (displayed in Output 5.13.2) contains the X and Y coordinates for all the nodes in the network and for all the turning points of the arcs connecting them.

Suppose that you want to interchange the positions of the nodes corresponding to the two activities, `Select Housholds' and `Train Personnel'. As explained in the "Controlling the Layout" section, you can invoke the procedure in FULLSCREEN mode and use the MOVE command to move the nodes to desired locations. In this example, the data set NETWORK produced by PROC NETDRAW is used to change the X and Y coordinates of the nodes. A new data set called NODEPOS is created from NETWORK by retaining only the observations containing node positions (recall that for such observations, _SEQ_ = `0') and by dropping the _SEQ_ variable. Further, the _Y_ coordinates for the two activities `Select Households' and `Train Personnel' are interchanged. The new data set, displayed in Output 5.13.3, is then input to PROC NETDRAW.

Output 5.13.2: Layout Data Set

Project: Market Survey

NETWORK Output Data Set

Obs	_FROM_	_TO_	_X_	_Y_	_SEQ_	_PATTERN	id
1	plan sur	hire per	1.0	2	0	1	Plan Survey
2	plan sur	hire per	1.5	2	1	.	Plan Survey
3	plan sur	hire per	1.5	3	2	.	Plan Survey
4	plan sur	design q	1.0	2	0	1	Plan Survey
5	hire per	trn per	2.0	3	0	1	Hire Personnel
6	hire per	trn per	2.5	3	1	.	Hire Personnel
7	hire per	trn per	2.5	1	2	.	Hire Personnel
8	design q	trn per	2.0	2	0	1	Design Questionnaire
9	design q	trn per	2.5	2	1	.	Design Questionnaire
10	design q	trn per	2.5	1	2	.	Design Questionnaire
11	design q	select h	2.0	2	0	1	Design Questionnaire
12	design q	select h	2.5	2	1	.	Design Questionnaire
13	design q	select h	2.5	3	2	.	Design Questionnaire
14	design q	print q	2.0	2	0	1	Design Questionnaire
15	trn per	cond sur	3.0	1	0	1	Train Personnel
16	trn per	cond sur	3.5	1	1	.	Train Personnel
17	trn per	cond sur	3.5	2	2	.	Train Personnel
18	select h	cond sur	3.0	3	0	1	Select Households
19	select h	cond sur	3.5	3	1	.	Select Households
20	select h	cond sur	3.5	2	2	.	Select Households
21	print q	cond sur	3.0	2	0	1	Print Questionnaire
22	cond sur	analyze	4.0	2	0	1	Conduct Survey
23	analyze		5.0	2	0	1	Analyze Results

   data nodepos;
      set network;
      if _seq_ = 0;
      drop _seq_;
      if _from_ = 'select h' then _y_=1;
      if _from_ = 'trn per' then _y_=3;
      run;

   title2 'Modified Node Positions';
   proc print data=nodepos;
      run;

Output 5.13.3: Modified Layout Data Set

Project: Market Survey

Modified Node Positions

Obs	_FROM_	_TO_	_X_	_Y_	_PATTERN	id
1	plan sur	hire per	1	2	1	Plan Survey
2	plan sur	design q	1	2	1	Plan Survey
3	hire per	trn per	2	3	1	Hire Personnel
4	design q	trn per	2	2	1	Design Questionnaire
5	design q	select h	2	2	1	Design Questionnaire
6	design q	print q	2	2	1	Design Questionnaire
7	trn per	cond sur	3	3	1	Train Personnel
8	select h	cond sur	3	1	1	Select Households
9	print q	cond sur	3	2	1	Print Questionnaire
10	cond sur	analyze	4	2	1	Conduct Survey
11	analyze		5	2	1	Analyze Results

Note that the data set NODEPOS contains variables named _FROM_ and _TO_ , which specify the (activity, successor) information; hence, the call to PROC NETDRAW does not contain the ACTIVITY= and SUCCESSOR= specifications. The presence of the variables _X_ and _Y_ indicates to PROC NETDRAW that the data set contains the X and Y coordinates for all the nodes. Because there is no variable named _SEQ_ in this data set, PROC NETDRAW assumes that only the node coordinates are given and uses these node positions to determine how the arcs are to be routed. The resulting network diagram is shown in Output 5.13.4.

   title2 f=swiss j=l h=1.5 ' Changing Node Positions';
   footnote f=swiss j=r 'Modified Network Layout ';
   proc netdraw data=nodepos graphics;
      actnet / id=(id)
               nodefid
               nolabel
               carcs = blue
               ctext = white
               coutline = red
               font = swiss
               centerid
               boxht = 3
               htext=2
               pcompress
               separatearcs
               ybetween=8;
      run;

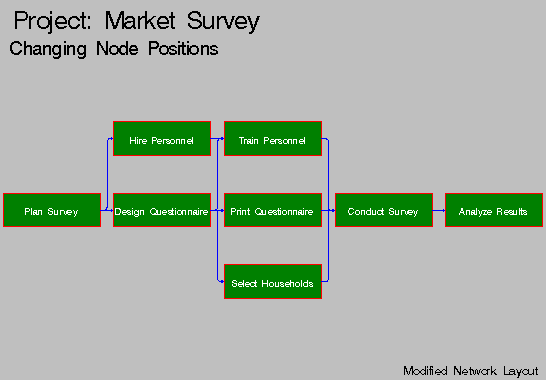

Output 5.13.4: Modified Network Layout of SURVEY Project
