Example 38.3: Working with Unequal Subgroup Sample Sizes

PCHART Statement

Example 38.3: Working with Unequal Subgroup Sample Sizes

See SHWPEX3 in the SAS/QC Sample Library

The following statements create a SAS data set named BATTERY, which contains the number of alkaline batteries per lot failing an acceptance test. The number of batteries tested in each lot varies but is approximately 150.

   data battery;
      length lot $3;
      input lot nfailed sampsize @@;;
      label nfailed ='Number Failed'
            lot     ='Lot Identifier'
            sampsize='Number Sampled';
      datalines;
   AE3  6  151     AE4  5  142     AE9  6  145
   BR3  9  149     BR7  3  150     BR8  0  156
   BR9  4  150     DB1  9  158     DB2  4  152
   DB3  0  162     DB5  9  140     DB6  7  161
   DS4  6  154     DS6  1  144     DS8  5  154
   JG1  3  151     MC3  8  148     MC4  2  143
   MK6  4  150     MM1  4  147     MM2  0  150
   RT5  2  154     RT9  8  149     SP1  3  160
   SP3  9  153
   ;

The variable NFAILED contains the number of battery failures, the variable LOT contains the lot number, and the variable SAMPSIZE contains the lot sample size. The following statements request a p chart for this data:

   title 'Proportion of Battery Failures';
   symbol v=dot c=salmon;
   proc shewhart data=battery;
      pchart nfailed*lot / subgroupn = sampsize
                           turnhlabels
                           outlimits = batlim
                           cframe    = lib
                           cinfill   = bwh
                           cconnect  = salmon
                           coutfill  = yellow ;
      label nfailed = 'Proportion Failed';
   run;

The chart is shown in Output 38.3.1 and the OUTLIMITS= data set BATLIM is listed in Output 38.3.2.

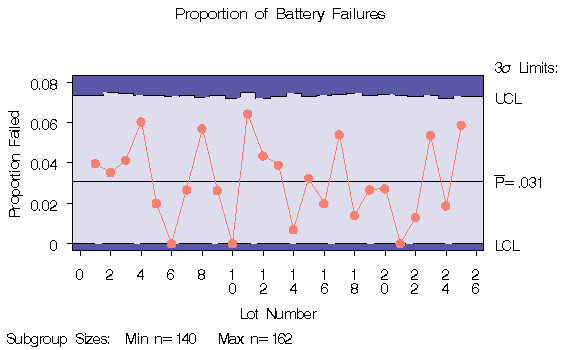

Output 38.3.1: A p Chart with Varying Subgroup Sample Sizes

Note that the upper control limit varies with the subgroup sample size. The lower control limit is truncated at zero. The sample size legend indicates the minimum and maximum subgroup sample sizes.

Output 38.3.2: Listing of the Control Limits Data Set BATLIM

Control Limits for Battery Failures

_VAR_	_SUBGRP_	_TYPE_	_LIMITN_	_ALPHA_	_SIGMAS_	_LCLP_	_P_	_UCLP_
nfailed	lot	ESTIMATE	V	V	3	V	0.031010	V

The variables in BATLIM whose values vary with subgroup sample size are assigned the special missing value V.

The SHEWHART procedure provides various options for working with unequal subgroup sample sizes. For example, you can use the LIMITN= option to specify a fixed (nominal) sample size for computing the control limits, as illustrated by the following statements:

   title 'Proportion of Battery Failures';
   symbol v=dot c=salmon;
   proc shewhart data=battery;
      pchart nfailed*lot / subgroupn = sampsize
                           limitn    = 150
                           alln
                           yscale    = percent
                           cframe    = lib
                           cinfill   = bwh
                           coutfill  = yellow
                           cconnect  = salmon;
      label nfailed = 'Percent Failed';
   run;

The ALLN option specifies that all points (regardless of subgroup sample size) are to be displayed. By default, only points for subgroups whose sample size matches the LIMITN= value are displayed. The YSCALE= option specifies that the vertical axis is to be scaled in percentages rather than proportions. The chart is shown in Output 38.3.3.

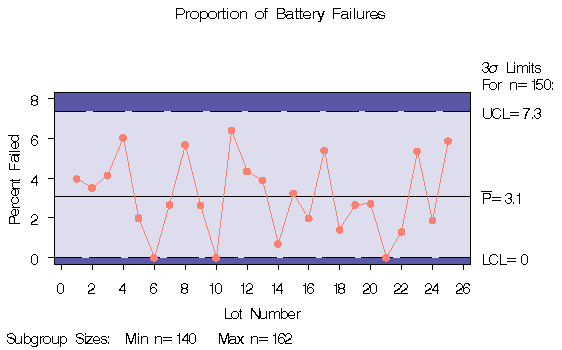

Output 38.3.3: Control Limits Based on Fixed Subgroup Sample Size

All the points are inside the control limits, indicating that the process is in statistical control. Since there is relatively little variation in the sample sizes, the control limits in Output 38.3.3 provide a close approximation to the exact control limits in Output 38.3.1, and the same conclusions can be drawn from both charts. In general, care should be taken when interpreting charts that use a nominal sample size to compute control limits, since these limits are only approximate when the sample sizes vary.
