Selected Examples

Special Routing

There are other ways that independent streams can share resources. One is illustrated in Figure 9.22.

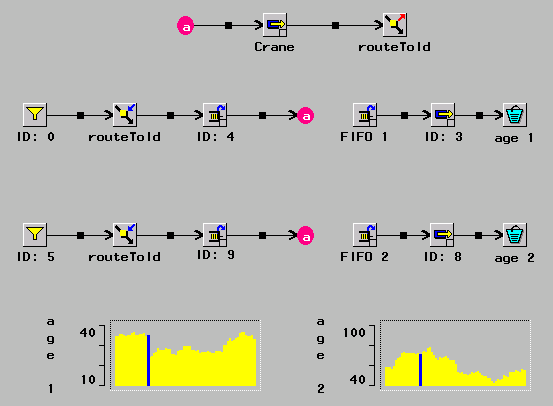

Figure 9.22: Special Routing

Here the Modifiers labeled "routeToId" set the attribute "routeToId" to the id of "FIFO 1" or "FIFO 2." When the transaction finishes with the service of the "Crane" and traverses to the Trigger labeled "routeToId," it is routed to the component whose id is in its attribute "routeToId." This is another way that transactions can be routed through the network.
