Example 25.2: Bivariate Density Estimates and Posterior Probabilities

The DISCRIM Procedure

Example 25.2: Bivariate Density Estimates and Posterior Probabilities

In this example, four more discriminant analyses of iris data are run with two quantitative variables: petal width and petal length. The example produces Output 25.2.1 through Output 25.2.5. A scatter plot shows the joint sample distribution. See Appendix B, "Using the %PLOTIT Macro," for more information on the %PLOTIT macro.

   %plotit(data=iris, plotvars=PetalWidth PetalLength,
           labelvar=_blank_, symvar=symbol, typevar=symbol,
           symsize=0.35, symlen=4, exttypes=symbol, ls=100);

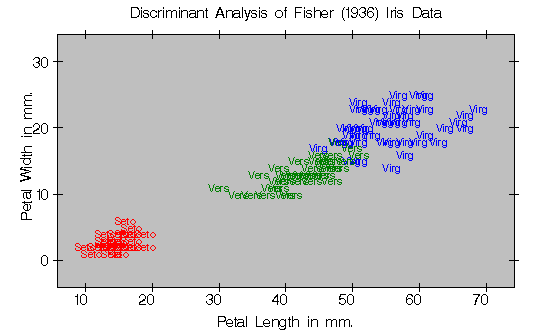

Output 25.2.1: Joint Sample Distribution of Petal Width and Petal Length in Three Species

Another data set is created for plotting, containing a grid of points suitable for contour plots. The large number of points in the grid makes the following analyses very time-consuming. If you attempt to duplicate these examples, begin with a small number of points in the grid.

   data plotdata;
      do PetalLength=-2 to 72 by 0.25;
         h + 1;    * Number of horizontal cells;
         do PetalWidth=-5 to 32 by 0.25;
            n + 1; * Total number of cells;
            output;
         end;
      end;
      * Make variables to contain H and V grid sizes;
      call symput('hnobs', compress(put(h    , best12.)));
      call symput('vnobs', compress(put(n / h, best12.)));
      drop n h;
   run;

A macro CONTOUR is defined to make contour plots of density estimates and posterior probabilities. Classification results are also plotted on the same grid.

   %macro contour;
      data contour(keep=PetalWidth PetalLength symbol density);
         set plotd(in=d) iris;
         if d then density = max(setosa,versicolor,virginica);
      run;

      title3 'Plot of Estimated Densities';
      %plotit(data=contour, plotvars=PetalWidth PetalLength,
              labelvar=_blank_, symvar=symbol, typevar=symbol,
              symlen=4, exttypes=symbol contour, ls=100,
              paint=density white black, rgbtypes=contour,
              hnobs=&hnobs, vnobs=&vnobs, excolors=white,
              rgbround=-16 1 1 1,  extend=close, options=noclip,
              types  =Setosa Versicolor Virginica  '',
              symtype=symbol symbol     symbol     contour,
              symsize=0.6    0.6        0.6        1,
              symfont=swiss  swiss      swiss      solid)

      data posterior(keep=PetalWidth PetalLength symbol
           prob _into_);
         set plotp(in=d) iris;
         if d then prob = max(setosa,versicolor,virginica);
      run;

      title3 'Plot of Posterior Probabilities '
             '(Black to White is Low to High Probability)';
      %plotit(data=posterior, plotvars=PetalWidth PetalLength,
              labelvar=_blank_, symvar=symbol, typevar=symbol,
              symlen=4, exttypes=symbol contour, ls=100,
              paint=prob black white 0.3 0.999, rgbtypes=contour,
              hnobs=&hnobs, vnobs=&vnobs,  excolors=white,
              rgbround=-16 1 1 1, extend=close, options=noclip,
              types  =Setosa Versicolor Virginica  '',
              symtype=symbol symbol     symbol     contour,
              symsize=0.6    0.6        0.6        1,
              symfont=swiss  swiss      swiss      solid)

      title3 'Plot of Classification Results';
      %plotit(data=posterior, plotvars=PetalWidth PetalLength,
              labelvar=_blank_, symvar=symbol, typevar=symbol,
              symlen=4, exttypes=symbol contour, ls=100,
              paint=_into_ CXCCCCCC CXDDDDDD white,
                 rgbtypes=contour, hnobs=&hnobs, vnobs=&vnobs,
                 excolors=white,
              extend=close, options=noclip,
              types  =Setosa Versicolor Virginica  '',
              symtype=symbol symbol     symbol     contour,
              symsize=0.6    0.6        0.6        1,
              symfont=swiss  swiss      swiss      solid)

   %mend;

A normal-theory analysis (METHOD=NORMAL) assuming equal covariance matrices (POOL=YES) illustrates the linearity of the classification boundaries. These statements produce Output 25.2.2:

   proc discrim data=iris method=normal pool=yes
                testdata=plotdata testout=plotp testoutd=plotd
                short noclassify crosslisterr;
      class Species;
      var Petal:;
      title2 'Using Normal Density Estimates with Equal
              Variance';
   run;
   %contour

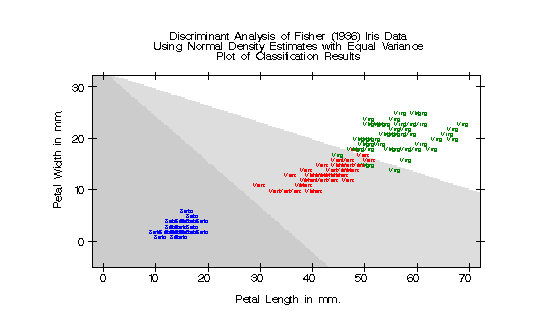

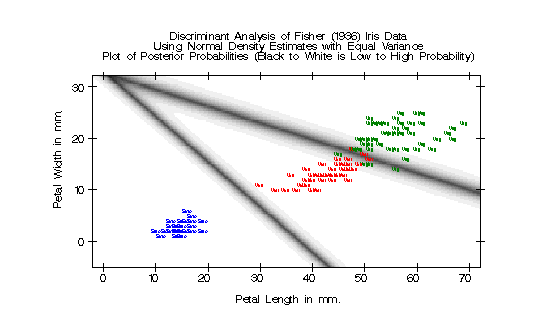

Output 25.2.2: Normal Density Estimates with Equal Variance

Discriminant Analysis of Fisher (1936) Iris Data

Using Normal Density Estimates with Equal Variance

The DISCRIM Procedure

Observations	150	DF Total	149
Variables	2	DF Within Classes	147
Classes	3	DF Between Classes	2

Class Level Information
Species	Variable Name	Frequency	Weight	Proportion	Prior Probability
Setosa	Setosa	50	50.0000	0.333333	0.333333
Versicolor	Versicolor	50	50.0000	0.333333	0.333333
Virginica	Virginica	50	50.0000	0.333333	0.333333

Discriminant Analysis of Fisher (1936) Iris Data

Using Normal Density Estimates with Equal Variance

The DISCRIM Procedure

Classification Results for Calibration Data: WORK.IRIS

Cross-validation Results using Linear Discriminant Function

Posterior Probability of Membership in Species
Obs	From Species	Classified into Species		Setosa	Versicolor	Virginica
5	Virginica	Versicolor	*	0.0000	0.8453	0.1547
9	Versicolor	Virginica	*	0.0000	0.2130	0.7870
25	Virginica	Versicolor	*	0.0000	0.8322	0.1678
57	Virginica	Versicolor	*	0.0000	0.8057	0.1943
91	Virginica	Versicolor	*	0.0000	0.8903	0.1097
148	Versicolor	Virginica	*	0.0000	0.3118	0.6882

* Misclassified observation

Discriminant Analysis of Fisher (1936) Iris Data

Using Normal Density Estimates with Equal Variance

The DISCRIM Procedure

Classification Summary for Calibration Data: WORK.IRIS

Cross-validation Summary using Linear Discriminant Function

Number of Observations and Percent Classified into Species
From Species	Setosa	Versicolor	Virginica	Total
Setosa	50 100.00	0 0.00	0 0.00	50 100.00
Versicolor	0 0.00	48 96.00	2 4.00	50 100.00
Virginica	0 0.00	4 8.00	46 92.00	50 100.00
Total	50 33.33	52 34.67	48 32.00	150 100.00
Priors	0.33333	0.33333	0.33333

Error Count Estimates for Species
	Setosa	Versicolor	Virginica	Total
Rate	0.0000	0.0400	0.0800	0.0400
Priors	0.3333	0.3333	0.3333

Discriminant Analysis of Fisher (1936) Iris Data

Using Normal Density Estimates with Equal Variance

The DISCRIM Procedure

Classification Summary for Test Data: WORK.PLOTDATA

Classification Summary using Linear Discriminant Function

Number of Observations and Percent Classified into Species
	Setosa	Versicolor	Virginica	Total
Total	14507 32.78	16888 38.16	12858 29.06	44253 100.00
Priors	0.33333	0.33333	0.33333

A normal-theory analysis assuming unequal covariance matrices (POOL=NO) illustrates quadratic classification boundaries. These statements produce Output 25.2.3:

   proc discrim data=iris method=normal pool=no
                testdata=plotdata testout=plotp testoutd=plotd
                short noclassify crosslisterr;
      class Species;
      var Petal:;
      title2 'Using Normal Density Estimates with Unequal
              Variance';
   run;
   %contour

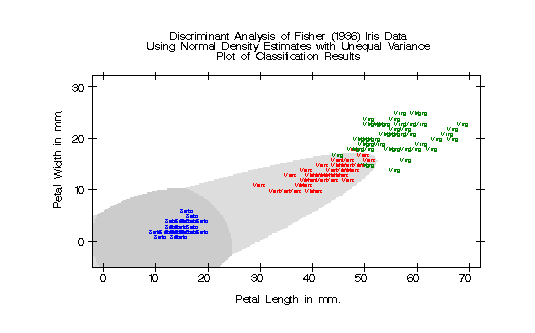

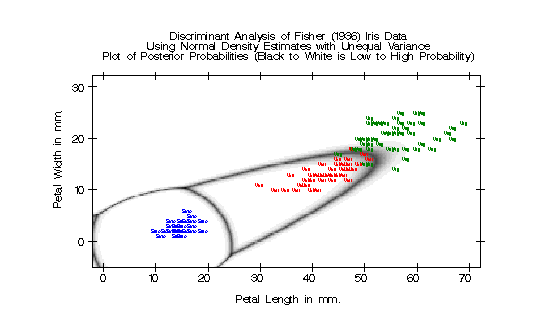

Output 25.2.3: Normal Density Estimates with Unequal Variance

Discriminant Analysis of Fisher (1936) Iris Data

Using Normal Density Estimates with Unequal Variance

The DISCRIM Procedure

Observations	150	DF Total	149
Variables	2	DF Within Classes	147
Classes	3	DF Between Classes	2

Class Level Information
Species	Variable Name	Frequency	Weight	Proportion	Prior Probability
Setosa	Setosa	50	50.0000	0.333333	0.333333
Versicolor	Versicolor	50	50.0000	0.333333	0.333333
Virginica	Virginica	50	50.0000	0.333333	0.333333

Discriminant Analysis of Fisher (1936) Iris Data

Using Normal Density Estimates with Unequal Variance

The DISCRIM Procedure

Classification Results for Calibration Data: WORK.IRIS

Cross-validation Results using Quadratic Discriminant Function

Posterior Probability of Membership in Species
Obs	From Species	Classified into Species		Setosa	Versicolor	Virginica
5	Virginica	Versicolor	*	0.0000	0.7288	0.2712
9	Versicolor	Virginica	*	0.0000	0.0903	0.9097
25	Virginica	Versicolor	*	0.0000	0.5196	0.4804
91	Virginica	Versicolor	*	0.0000	0.8335	0.1665
148	Versicolor	Virginica	*	0.0000	0.4675	0.5325

* Misclassified observation

Discriminant Analysis of Fisher (1936) Iris Data

Using Normal Density Estimates with Unequal Variance

The DISCRIM Procedure

Classification Summary for Calibration Data: WORK.IRIS

Cross-validation Summary using Quadratic Discriminant Function

Number of Observations and Percent Classified into Species
From Species	Setosa	Versicolor	Virginica	Total
Setosa	50 100.00	0 0.00	0 0.00	50 100.00
Versicolor	0 0.00	48 96.00	2 4.00	50 100.00
Virginica	0 0.00	3 6.00	47 94.00	50 100.00
Total	50 33.33	51 34.00	49 32.67	150 100.00
Priors	0.33333	0.33333	0.33333

Error Count Estimates for Species
	Setosa	Versicolor	Virginica	Total
Rate	0.0000	0.0400	0.0600	0.0333
Priors	0.3333	0.3333	0.3333

Discriminant Analysis of Fisher (1936) Iris Data

Using Normal Density Estimates with Unequal Variance

The DISCRIM Procedure

Classification Summary for Test Data: WORK.PLOTDATA

Classification Summary using Quadratic Discriminant Function

Number of Observations and Percent Classified into Species
	Setosa	Versicolor	Virginica	Total
Total	5461 12.34	5354 12.10	33438 75.56	44253 100.00
Priors	0.33333	0.33333	0.33333

A nonparametric analysis (METHOD=NPAR) follows, using normal kernels (KERNEL=NORMAL) and equal bandwidths (POOL=YES) in each class. The value of the radius parameter r that, assuming normality, minimizes an approximate mean integrated square error is 0.50 (see the "Nonparametric Methods" section). These statements produce Output 25.2.4:

   proc discrim data=iris method=npar kernel=normal
                   r=.5 pool=yes
                testdata=plotdata testout=plotp
                   testoutd=plotd
                short noclassify crosslisterr;
      class Species;
      var Petal:;
      title2 'Using Kernel Density Estimates with Equal
              Bandwidth';
   run;
   %contour

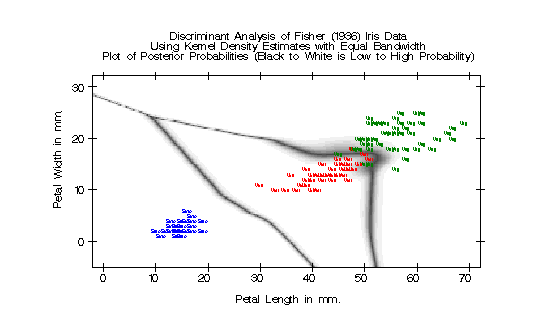

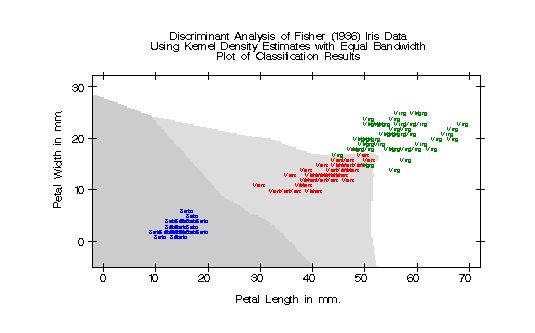

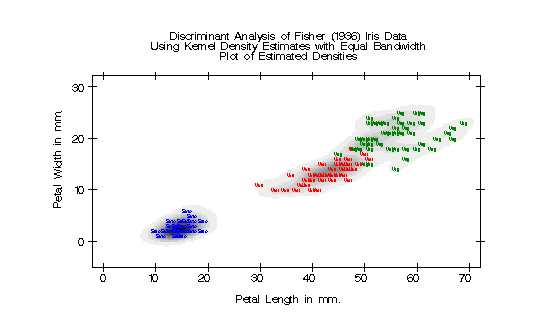

Output 25.2.4: Kernel Density Estimates with Equal Bandwidth

Discriminant Analysis of Fisher (1936) Iris Data

Using Kernel Density Estimates with Equal Bandwidth

The DISCRIM Procedure

Observations	150	DF Total	149
Variables	2	DF Within Classes	147
Classes	3	DF Between Classes	2

Class Level Information
Species	Variable Name	Frequency	Weight	Proportion	Prior Probability
Setosa	Setosa	50	50.0000	0.333333	0.333333
Versicolor	Versicolor	50	50.0000	0.333333	0.333333
Virginica	Virginica	50	50.0000	0.333333	0.333333

Discriminant Analysis of Fisher (1936) Iris Data

Using Kernel Density Estimates with Equal Bandwidth

The DISCRIM Procedure

Classification Results for Calibration Data: WORK.IRIS

Cross-validation Results using Normal Kernel Density

Posterior Probability of Membership in Species
Obs	From Species	Classified into Species		Setosa	Versicolor	Virginica
5	Virginica	Versicolor	*	0.0000	0.7474	0.2526
9	Versicolor	Virginica	*	0.0000	0.0800	0.9200
25	Virginica	Versicolor	*	0.0000	0.5863	0.4137
91	Virginica	Versicolor	*	0.0000	0.8358	0.1642
148	Versicolor	Virginica	*	0.0000	0.4123	0.5877

* Misclassified observation

Discriminant Analysis of Fisher (1936) Iris Data

Using Kernel Density Estimates with Equal Bandwidth

The DISCRIM Procedure

Classification Summary for Calibration Data: WORK.IRIS

Cross-validation Summary using Normal Kernel Density

Number of Observations and Percent Classified into Species
From Species	Setosa	Versicolor	Virginica	Total
Setosa	50 100.00	0 0.00	0 0.00	50 100.00
Versicolor	0 0.00	48 96.00	2 4.00	50 100.00
Virginica	0 0.00	3 6.00	47 94.00	50 100.00
Total	50 33.33	51 34.00	49 32.67	150 100.00
Priors	0.33333	0.33333	0.33333

Error Count Estimates for Species
	Setosa	Versicolor	Virginica	Total
Rate	0.0000	0.0400	0.0600	0.0333
Priors	0.3333	0.3333	0.3333

Discriminant Analysis of Fisher (1936) Iris Data

Using Kernel Density Estimates with Equal Bandwidth

The DISCRIM Procedure

Classification Summary for Test Data: WORK.PLOTDATA

Classification Summary using Normal Kernel Density

Number of Observations and Percent Classified into Species
	Setosa	Versicolor	Virginica	Total
Total	12631 28.54	9941 22.46	21681 48.99	44253 100.00
Priors	0.33333	0.33333	0.33333

Another nonparametric analysis is run with unequal bandwidths (POOL=NO). These statements produce Output 25.2.5:

   proc discrim data=iris method=npar kernel=normal
                   r=.5 pool=no
                testdata=plotdata testout=plotp
                   testoutd=plotd
                short noclassify crosslisterr;
      class Species;
      var Petal:;
      title2 'Using Kernel Density Estimates with Unequal
              Bandwidth';
   run;
   %contour

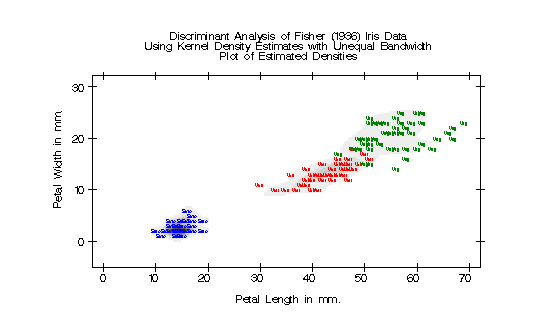

Output 25.2.5: Kernel Density Estimates with Unequal Bandwidth

Discriminant Analysis of Fisher (1936) Iris Data

Using Kernel Density Estimates with Unequal Bandwidth

The DISCRIM Procedure

Observations	150	DF Total	149
Variables	2	DF Within Classes	147
Classes	3	DF Between Classes	2

Class Level Information
Species	Variable Name	Frequency	Weight	Proportion	Prior Probability
Setosa	Setosa	50	50.0000	0.333333	0.333333
Versicolor	Versicolor	50	50.0000	0.333333	0.333333
Virginica	Virginica	50	50.0000	0.333333	0.333333

Discriminant Analysis of Fisher (1936) Iris Data

Using Kernel Density Estimates with Unequal Bandwidth

The DISCRIM Procedure

Classification Results for Calibration Data: WORK.IRIS

Cross-validation Results using Normal Kernel Density

Posterior Probability of Membership in Species
Obs	From Species	Classified into Species		Setosa	Versicolor	Virginica
5	Virginica	Versicolor	*	0.0000	0.7826	0.2174
9	Versicolor	Virginica	*	0.0000	0.0506	0.9494
91	Virginica	Versicolor	*	0.0000	0.8802	0.1198
148	Versicolor	Virginica	*	0.0000	0.3726	0.6274

* Misclassified observation

Discriminant Analysis of Fisher (1936) Iris Data

Using Kernel Density Estimates with Unequal Bandwidth

The DISCRIM Procedure

Classification Summary for Calibration Data: WORK.IRIS

Cross-validation Summary using Normal Kernel Density

Number of Observations and Percent Classified into Species
From Species	Setosa	Versicolor	Virginica	Total
Setosa	50 100.00	0 0.00	0 0.00	50 100.00
Versicolor	0 0.00	48 96.00	2 4.00	50 100.00
Virginica	0 0.00	2 4.00	48 96.00	50 100.00
Total	50 33.33	50 33.33	50 33.33	150 100.00
Priors	0.33333	0.33333	0.33333

Error Count Estimates for Species
	Setosa	Versicolor	Virginica	Total
Rate	0.0000	0.0400	0.0400	0.0267
Priors	0.3333	0.3333	0.3333

Discriminant Analysis of Fisher (1936) Iris Data

Using Kernel Density Estimates with Unequal Bandwidth

The DISCRIM Procedure

Classification Summary for Test Data: WORK.PLOTDATA

Classification Summary using Normal Kernel Density

Number of Observations and Percent Classified into Species
	Setosa	Versicolor	Virginica	Total
Total	5447 12.31	5984 13.52	32822 74.17	44253 100.00
Priors	0.33333	0.33333	0.33333

Chapter Contents
Previous
Next
Top
