The REG Procedure

Interactive Analysis

PROC REG enables you to change interactively both the model and the data used to compute the model, and to produce and highlight scatter plots. The following statements can be used interactively (without reinvoking PROC REG): ADD, DELETE, MODEL, MTEST, OUTPUT, PAINT, PLOT, PRINT, REFIT, RESTRICT, REWEIGHT, and TEST. All interactive features are disabled if there is a BY statement.

The ADD, DELETE and REWEIGHT statements can be used to modify the current MODEL. Every use of an ADD, DELETE or REWEIGHT statement causes the model label to be modified by attaching an additional number to it. This number is the cumulative total of the number of ADD, DELETE or REWEIGHT statements following the current MODEL statement.

A more detailed explanation of changing the data used to compute the model is given in the section "Reweighting Observations in an Analysis". Extra features for line printer scatter plots are discussed in the section "Line Printer Scatter Plot Features".

The following example illustrates the usefulness of the interactive features. First, the full regression model is fit to the class data (see the "Getting Started" section), and Figure 55.22 is produced.

   proc reg data=Class;
      model Weight=Age Height;
   run;


The REG Procedure
Model: MODEL1
Dependent Variable: Weight

Analysis of Variance
Source DF Sum of
Squares
Mean
Square
F Value Pr > F
Model 2 7215.63710 3607.81855 27.23 <.0001
Error 16 2120.09974 132.50623
Corrected Total 18 9335.73684

Root MSE 11.51114 R-Square 0.7729
Dependent Mean 100.02632 Adj R-Sq 0.7445
Coeff Var 11.50811

Parameter Estimates
Variable DF Parameter
Estimate
Standard
Error
t Value Pr > |t|
Intercept 1 -141.22376 33.38309 -4.23 0.0006
Age 1 1.27839 3.11010 0.41 0.6865
Height 1 3.59703 0.90546 3.97 0.0011
Figure 55.23: Interactive Analysis: Full Model

Next, the regression model is reduced by the following statements, and Figure 55.23 is produced.

   delete age;
   print;
   run;


The REG Procedure
Model: MODEL1.1
Dependent Variable: Weight

Analysis of Variance
Source DF Sum of
Squares
Mean
Square
F Value Pr > F
Model 1 7193.24912 7193.24912 57.08 <.0001
Error 17 2142.48772 126.02869
Corrected Total 18 9335.73684

Root MSE 11.22625 R-Square 0.7705
Dependent Mean 100.02632 Adj R-Sq 0.7570
Coeff Var 11.22330

Parameter Estimates
Variable DF Parameter
Estimate
Standard
Error
t Value Pr > |t|
Intercept 1 -143.02692 32.27459 -4.43 0.0004
Height 1 3.89903 0.51609 7.55 <.0001
Figure 55.24: Interactive Analysis: Reduced Model

Note that the MODEL label has been changed from MODEL1 to MODEL1.1, as the original MODEL has been changed by the delete statement.

The following statements generate a scatter plot of the residuals against the predicted values from the full model. Figure 55.24 is produced, and the scatter plot shows a possible outlier.

   add age;
   plot r.*p. / cframe=ligr;
   run;

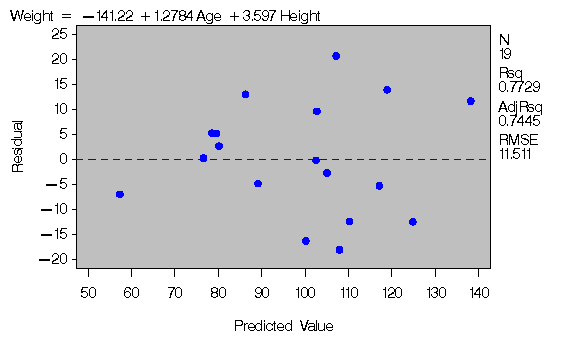

Figure 55.25: Interactive Analysis: Scatter Plot

The following statements delete the observation with the largest residual, refit the regression model, and produce a scatter plot of residuals against predicted values for the refitted model. Figure 55.25 shows the new scatter plot.

   reweight r.>20;
   plot / cframe=ligr;
   run;

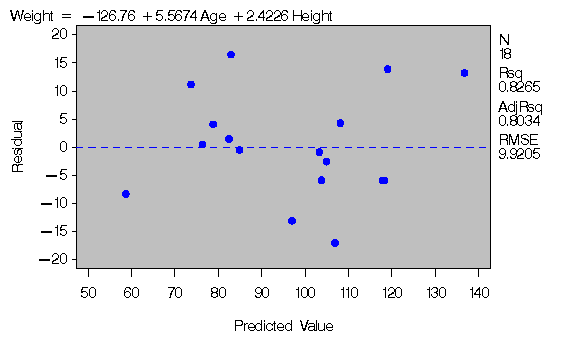

Figure 55.26: Interactive Analysis: Scatter Plot for Refitted Model
