Example 20.1: Specifying Standard Values for the Process Mean and Process Standard Deviation

EWMACHART Statement

Example 20.1: Specifying Standard Values for the Process Mean and Process Standard Deviation

See MACEW2 in the SAS/QC Sample Library

By default, the EWMACHART statement estimates the process mean ( $\mu$ )and standard deviation ( $\sigma$ )from the data. This is illustrated in the "Getting Started" section of this chapter. However, there are applications in which standard values ( $\mu_{0}$ and $\sigma_{0}$ ) are available based, for instance, on previous experience or extensive sampling. You can specify these values with the MU0= and SIGMA0= options. For example, suppose it is known that the metal clip manufacturing process (introduced in "Creating EWMA Charts from Raw Data" ) has a mean of 15 and standard deviation of 0.2. The following statements specify these standard values:

   title 'Specifying Standard Process Mean and Standard Deviation';
   symbol v=dot c=salmon;
   proc macontrol data=clips1;
      ewmachart gap*day /
          mu0      = 15
          sigma0   = 0.2
          weight   = 0.3
          xsymbol  = mu0
          cframe   = vibg
          cinfill  = ligr
          coutfill = yellow
          cconnect = salmon;
   run;

The XSYMBOL= option specifies the label for the central line. The resulting chart is shown in Output 20.1.1.

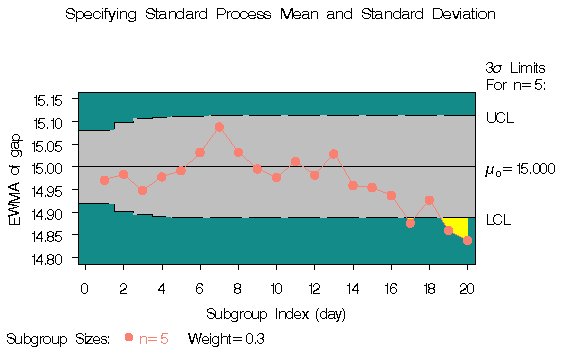

Output 20.1.1: Specifying Standard Values with MU0= and SIGMA0=

The central line and control limits are determined using $\mu_{0}$ and $\sigma_{0}$ (see the equations in Table 20.19). Output 20.1.1 indicates that the process is out-of-control, since the moving averages for DAY=17, DAY=19, and DAY=20 lie below the lower control limit.

You can also specify $\mu_{0}$ and $\sigma_{0}$ with the variables _MEAN_ and _STDDEV_ in a LIMITS= data set, as illustrated by the following statements:

   data cliplim;
      length _var_ _subgrp_ _type_ $8;
      _var_    = 'gap';
      _subgrp_ = 'day';
      _type_   = 'STANDARD';
      _limitn_ = 5;
      _mean_   = 15;
      _stddev_ = 0.2;
      _weight_ = 0.3;

   proc macontrol data=clips1 limits=cliplim;
      ewmachart gap*day / xsymbol=mu0;
   run;

The variable _WEIGHT_ is required, and its value provides the weight parameter used to compute the EWMAs. The variables _VAR_ and _SUBGRP_ are also required, and their values must match the process and subgroup-variable, respectively, specified in the EWMACHART statement. The bookkeeping variable _TYPE_ is not required, but it is recommended to indicate that the variables _MEAN_ and _STDDEV_ provide standard values rather than estimated values.

The resulting chart (not shown here) is identical to the one shown in Output 20.1.1.
