Creating p Charts from Count Data

PCHART Statement

Creating p Charts from Count Data

See SHWPCHR in the SAS/QC Sample Library

An electronics company manufactures circuits in batches of 500 and uses a p chart to monitor the proportion of failing circuits. Thirty batches are examined, and the failures in each batch are counted. The following statements create a SAS data set named CIRCUITS,^* which contains the failure counts:

   data circuits;
     input batch fail @@;
   datalines;
    1   5     2   6     3  11     4   6     5   4
    6   9     7  17     8  10     9  12    10   9
   11   8    12   7    13   7    14  15    15   8
   16  18    17  12    18  16    19   4    20   7
   21  17    22  12    23   8    24   7    25  15
   26   6    27   8    28  12    29   7    30   9
   ;

A listing of CIRCUITS is shown in Figure 38.1.

Number of Failing Circuits

batch	fail
1	5
2	6
3	11
4	6
5	4
6	9
7	17
8	10
9	12
10	9
11	8
12	7
13	7
14	15
15	8
16	18
17	12
18	16
19	4
20	7
21	17
22	12
23	8
24	7
25	15
26	6
27	8
28	12
29	7
30	9

Figure 38.1: The Data Set CIRCUITS

There is a single observation for each batch. The variable BATCH identifies the subgroup sample and is referred to as the subgroup-variable. The variable FAIL contains the number of nonconforming items in each subgroup sample and is referred to as the process variable (or process for short).

The following statements create the p chart shown in Figure 38.2:

   title 'p Chart for the Proportion of Failing Circuits';
   symbol v=dot c=salmon;
   proc shewhart data=circuits;
      pchart fail*batch / subgroupn = 500
                          cframe    = lib
                          cinfill   = bwh
                          coutfill  = yellow
                          cconnect  = salmon;
   run;

This example illustrates the basic form of the PCHART statement. After the keyword PCHART, you specify the process to analyze (in this case, FAIL), followed by an asterisk and the subgroup-variable (BATCH).

The input data set is specified with the DATA= option in the PROC SHEWHART statement. The SUBGROUPN= option specifies the number of items in each subgroup sample and is required with a DATA= input data set. The SUBGROUPN= option specifies one of the following:

a constant subgroup sample size (as in this case)
a variable in the input data set whose values provide the subgroup sample sizes (see the next example)

Options such as SUBGROUPN= are specified after the slash (/) in the PCHART statement. A complete list of options is presented in the "Syntax" section.

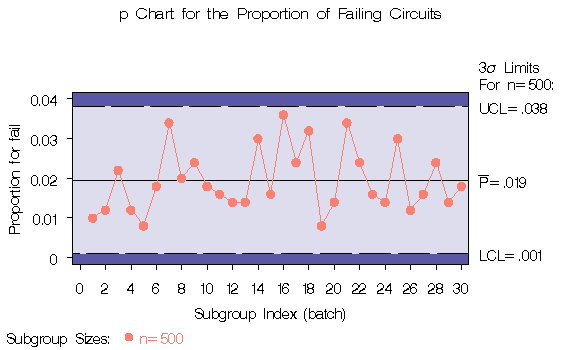

Figure 38.2: A p Chart for Circuit Failures

Each point on the p chart represents the proportion of nonconforming items for a particular subgroup. For instance, the value plotted for the first batch is 5/500 = 0.01, as illustrated in Figure 38.3.

Figure 38.3: Proportions Versus Counts

Since all the points fall within the control limits, it can be concluded that the process is in statistical control.

By default, the control limits shown are 3 $\sigma$ limits estimated from the data; the formulas for the limits are given in "Control Limits". You can also read control limits from an input data set; see "Reading Preestablished Control Limits". For computational details, see "Constructing Charts for Proportion Nonconforming (p Charts)" . For more details on reading counts of nonconforming items, see "DATA= Data Set".
