Example 27.1: Fisher's Iris Data

The iris data published by Fisher (1936) have been widely used for examples in discriminant analysis and cluster analysis. The sepal length, sepal width, petal length, and petal width are measured in millimeters on fifty iris specimens from each of three species, Iris setosa, I. versicolor, and I. virginica. Mezzich and Solomon (1980) discuss a variety of cluster analyses of the iris data.

In this example, the FASTCLUS procedure is used to find two and, then, three clusters. An output data set is created, and PROC FREQ is invoked to compare the clusters with the species classification. See Output 27.1.1 and Output 27.1.2 for these results. For three clusters, you can use the CANDISC procedure to compute canonical variables for plotting the clusters. See Output 27.1.3 for the results.

   proc format;
      value specname
         1='Setosa    '
         2='Versicolor'
         3='Virginica ';
   run;

   data iris;
      title 'Fisher (1936) Iris Data';
      input SepalLength SepalWidth PetalLength PetalWidth Species @@;
      format Species specname.;
      label SepalLength='Sepal Length in mm.'
            SepalWidth ='Sepal Width in mm.'
            PetalLength='Petal Length in mm.'
            PetalWidth ='Petal Width in mm.';
      symbol = put(species, specname10.);
      datalines;
   50 33 14 02 1 64 28 56 22 3 65 28 46 15 2 67 31 56 24 3
   63 28 51 15 3 46 34 14 03 1 69 31 51 23 3 62 22 45 15 2
   59 32 48 18 2 46 36 10 02 1 61 30 46 14 2 60 27 51 16 2
   65 30 52 20 3 56 25 39 11 2 65 30 55 18 3 58 27 51 19 3
   68 32 59 23 3 51 33 17 05 1 57 28 45 13 2 62 34 54 23 3
   77 38 67 22 3 63 33 47 16 2 67 33 57 25 3 76 30 66 21 3
   49 25 45 17 3 55 35 13 02 1 67 30 52 23 3 70 32 47 14 2
   64 32 45 15 2 61 28 40 13 2 48 31 16 02 1 59 30 51 18 3
   55 24 38 11 2 63 25 50 19 3 64 32 53 23 3 52 34 14 02 1
   49 36 14 01 1 54 30 45 15 2 79 38 64 20 3 44 32 13 02 1
   67 33 57 21 3 50 35 16 06 1 58 26 40 12 2 44 30 13 02 1
   77 28 67 20 3 63 27 49 18 3 47 32 16 02 1 55 26 44 12 2
   50 23 33 10 2 72 32 60 18 3 48 30 14 03 1 51 38 16 02 1
   61 30 49 18 3 48 34 19 02 1 50 30 16 02 1 50 32 12 02 1
   61 26 56 14 3 64 28 56 21 3 43 30 11 01 1 58 40 12 02 1
   51 38 19 04 1 67 31 44 14 2 62 28 48 18 3 49 30 14 02 1
   51 35 14 02 1 56 30 45 15 2 58 27 41 10 2 50 34 16 04 1
   46 32 14 02 1 60 29 45 15 2 57 26 35 10 2 57 44 15 04 1
   50 36 14 02 1 77 30 61 23 3 63 34 56 24 3 58 27 51 19 3
   57 29 42 13 2 72 30 58 16 3 54 34 15 04 1 52 41 15 01 1
   71 30 59 21 3 64 31 55 18 3 60 30 48 18 3 63 29 56 18 3
   49 24 33 10 2 56 27 42 13 2 57 30 42 12 2 55 42 14 02 1
   49 31 15 02 1 77 26 69 23 3 60 22 50 15 3 54 39 17 04 1
   66 29 46 13 2 52 27 39 14 2 60 34 45 16 2 50 34 15 02 1
   44 29 14 02 1 50 20 35 10 2 55 24 37 10 2 58 27 39 12 2
   47 32 13 02 1 46 31 15 02 1 69 32 57 23 3 62 29 43 13 2
   74 28 61 19 3 59 30 42 15 2 51 34 15 02 1 50 35 13 03 1
   56 28 49 20 3 60 22 40 10 2 73 29 63 18 3 67 25 58 18 3
   49 31 15 01 1 67 31 47 15 2 63 23 44 13 2 54 37 15 02 1
   56 30 41 13 2 63 25 49 15 2 61 28 47 12 2 64 29 43 13 2
   51 25 30 11 2 57 28 41 13 2 65 30 58 22 3 69 31 54 21 3
   54 39 13 04 1 51 35 14 03 1 72 36 61 25 3 65 32 51 20 3
   61 29 47 14 2 56 29 36 13 2 69 31 49 15 2 64 27 53 19 3
   68 30 55 21 3 55 25 40 13 2 48 34 16 02 1 48 30 14 01 1
   45 23 13 03 1 57 25 50 20 3 57 38 17 03 1 51 38 15 03 1
   55 23 40 13 2 66 30 44 14 2 68 28 48 14 2 54 34 17 02 1
   51 37 15 04 1 52 35 15 02 1 58 28 51 24 3 67 30 50 17 2
   63 33 60 25 3 53 37 15 02 1
   ;

   proc fastclus data=iris maxc=2 maxiter=10 out=clus;
      var SepalLength SepalWidth PetalLength PetalWidth;
   run;

   proc freq;
      tables cluster*species;
   run;

   proc fastclus data=iris maxc=3 maxiter=10 out=clus;
      var SepalLength SepalWidth PetalLength PetalWidth;
   run;

   proc freq;
      tables cluster*Species;
   run;

   proc candisc anova out=can;
      class cluster;
      var SepalLength SepalWidth PetalLength PetalWidth;
      title2 'Canonical Discriminant Analysis of Iris Clusters';
   run;
   legend1 frame cframe=ligr label=none cborder=black
           position=center value=(justify=center);
   axis1 label=(angle=90 rotate=0) minor=none;
   axis2 minor=none;

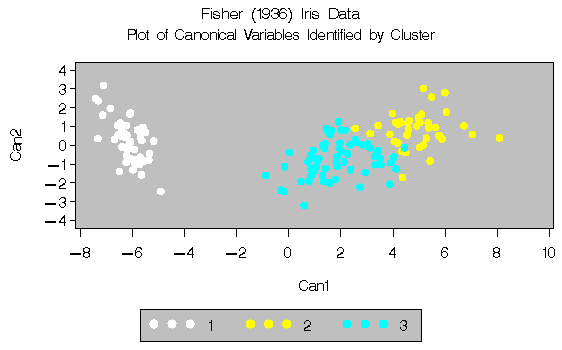

   proc gplot data=Can;
      plot Can2*Can1=Cluster/frame cframe=ligr
                     legend=legend1 vaxis=axis1 haxis=axis2;
      title2 'Plot of Canonical Variables Identified by Cluster';
   run;
